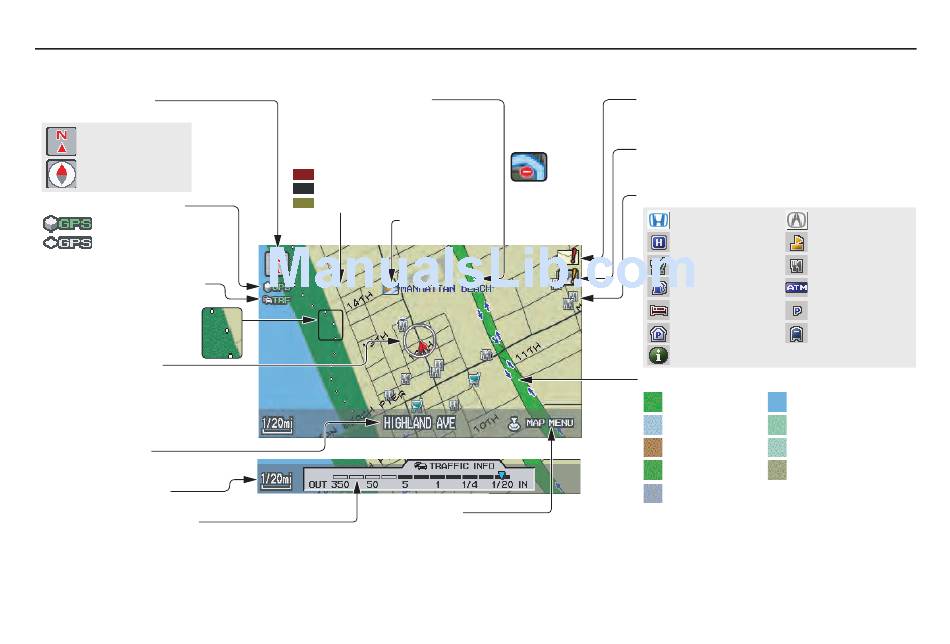

Map Screen Legend

Map Orientation
(see page 62)
"North Up"
"Heading Up"
GPS Signal Strength
: Best Reception
: Good Reception
Missing: Poor/No Reception
Traffic Status Indicator
(see page 22)
Breadcrumbs
(see Off-road Tracking
on page 69)
Vehicle Position
(see page 70)
(Use voice command
"Display the current location," or
use the Interface Dial to show
current location.)
Current Street
(see page 6)
Current Map Scale
(see page 61)
Map Scale Adjustment
(Mile or km per half-inch appears only when you
zoom in or out by rotating the Interface Dial knob.)
NOTE:
See Map Legend on the INFO screen (Other) for further explanation.
One-Way Traffic Icon
(1/20 mile scale only) (see
page 63)
Streets
(see Map Overview on page 6)
Interstates or Freeways
Verified Streets
Unverified Streets
Weather Icon
(see page 64)
Map Menu
(see page 58)
(Push in on the Interface Dial to view.)
2010 TSX
Message Icon (see page 78)
Indicates that you have a message. View
messages by pushing in on the Interface Dial.
No Entry Icon
Warning Icon
Indicates that there are weather warnings.
To check the warning list, see page 82.
Landmark Icon - Generic (see page 63)
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Map Features
: Park
: Hospital
: Shopping Mall
: Golf Course
: Airport/Stadium/Business
NOTE:
If you move the Interface Dial over an
area (map features shown above), the
name is displayed on the screen.
Getting Started
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
: Water Area
: Cemetery
: University
: Indian Reservation
