Lofi

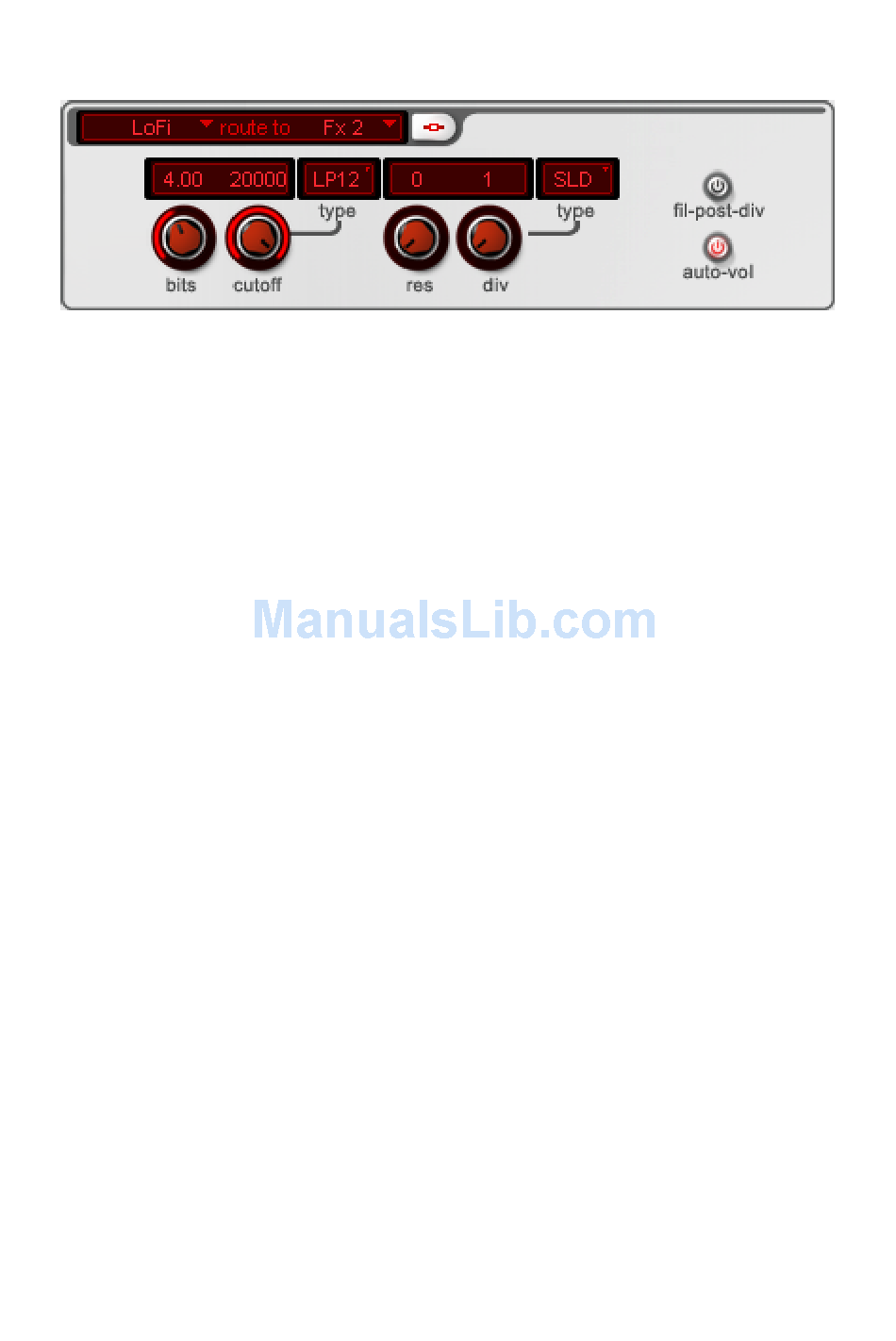

The Albino 3's LoFi is a distortion effect that combines bit-depth and
sample-rate reduction with "smoothing" algorithms allowing the resolution
of the signal to be decreased, thereby making the sound rougher and
noisier. This effect processor also includes a filter. This effect has the
following controls: Bits, Cutoff, Filter Type, Res ("Resonance"), Div
("Divider"), Divider Type, Fil Post Div and Auto-Vol.
The Bits control enables you to reduce the bit depth of the output signal
from oo bits (the signal is not changed) to 1.00 bits. Reducing the bit depth
adds a harsh, noisy quality to the sound.
The Cutoff control is used to set the frequency (in Hz) above which
frequencies are filtered out of the signal. Higher settings produce brighter
sounds while lower settings result in darker sounds. Settings can range
from 40 Hz to 20 kHz.
The Filter Type popup menu allows you to select one of four 12 dB filter
types: LP12 (Low Pass 12 dB), HP12 (High Pass 12 dB), BP12 (Band Pass
12 dB) and BR12 (Band Reject 12 dB).
The Resonance control is used to set the amount of emphasis around the
cutoff frequency. Higher settings create a more pronounced peak in the
signal while lower settings produce a flatter response. Settings can range
from 0% to 100%.
The Divider control sets a sample-rate divider that divides the current
sample-rate by the current control setting. For example, if the current
sample-rate is 44.1 kHz, then setting the Divider slider to 2, halves the
sample-rate to 22.05 kHz. Settings can range from 1 to 32.
