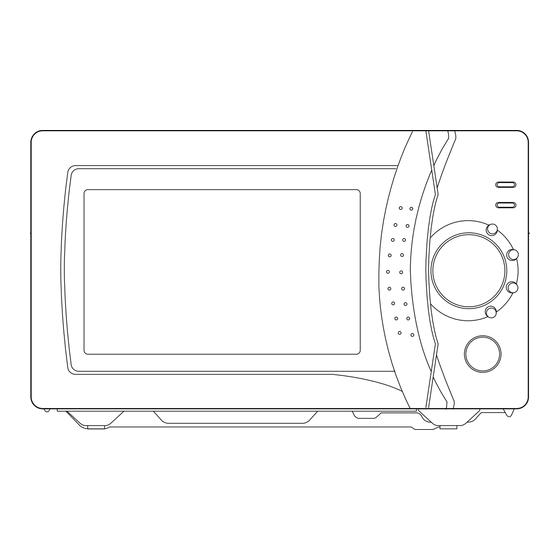

- Page 1 MICROWA VE OVEN KOR-633R OPERATING INSTRUCTIONS Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 3: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. -
Page 4: Specifications
SPECIFICATIONS POWER SUPPLY 230V AC 50Hz SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1200 W MICROWAVE OUTPUT POWER 800 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 465 X 279 X 365 mm CAVITY DIMENSIONS (W X H X D) 290 X 220 X 306 mm NET WEIGHT APPROX. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes. -
Page 6: Features Diagram
FEATURES DIAGRAM 1. Safety interlock system-Prevents the oven 5. Door seal-The door seal surfaces prevent from operating while the door is opened. microwaves escaping from the oven cavity. The oven will only operate with the door fully closed. When the door is open, the oven turns 6. - Page 7 FEATURES DIAGRAM ( continued ) KOR-633R Auto cook 1. Dinner Plate 2. Soup 3. Beverage 4. Fresh Vegetable Defrost Power Clock DEF. LOCK Stop/ Clear Start/ Easy cook 9. Auto cook- Used to cook using a program or to 14. Stop/Clear- Used to stop the oven operation or reheat.
-
Page 8: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a 230V 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 9: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever turns off, the display shows “ :0” when the power comes back on. 1. -
Page 10: Time Defrosting
TIME DEFROSTING When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Press Defrost button. The DEF. indicator & “0” appear and the g Defrost indicator starts blinking. -
Page 11: Cooking In One Stage
COOKING IN ONE STAGE 1. Press Power button. The M/W indicator appears and the display will (Select the desired power show what you selected. Power level.) This example shows power level 6. NOTE: If step 1 is omitted, the oven will cook at full power. -
Page 12: Easy Cook
EASY COOKING EASY COOK allows you to reheat for 30 seconds at 100% (full power) by simply pressing the Easy cook button. By repeatedly pressing the Easy cook button, you can also extend reheating time to 5 minutes by 30 seconds. -
Page 13: Child Safety Lock
CHILD SAFETY LOCK SAFETY LOCK lock prevents unwanted oven operation such as by small children. To set, press and hold Stop/Clear button for 3 seconds, Lock indicator appears and a beep sounds. To cancel, press and hold Stop/Clear button for 3 seconds, Lock indicator disappears and a beep sounds. TO STOP THE OVEN WHILE THE OVEN IS OPERATING 1. -
Page 14: Cooking Utensils
COOKING UTENSILS Utensils should be checked to ensure that they are suitable for use in microwave ovens. Microwave energy is produced by high frequency radio waves. They are reflected from metal, but will pass through most cooking utensils without heating them. As the waves come into contact with the food, they are converted into heat energy. -
Page 15: Before You Call For Service
BEFORE YOU CALL FOR SERVICE Refer to the following checklist, you may prevent an unnecessary service call. * The oven doesn't work; 1. Check that the power cord is securely plugged in. 2. Check that the door is firmly closed. 3.
