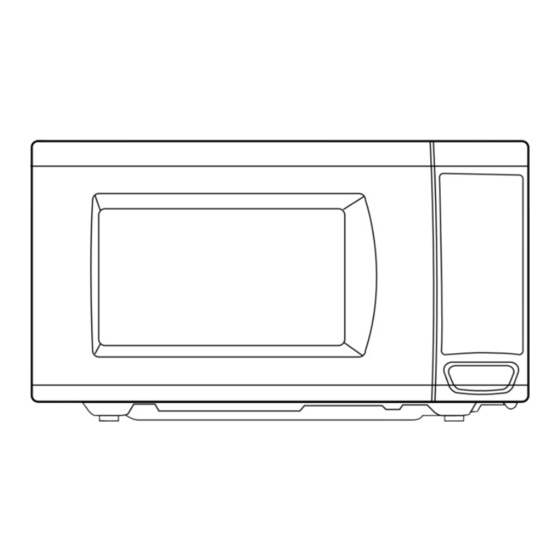

- Page 1 MICROWA VE OVEN AFMW 313 OPERATING INSTRUCTIONS Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. -
Page 4: Specifications
SPECIFICATIONS POWER SUPPLY 220V~240V/50Hz SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1400 W MICROWAVE OUTPUT POWER 1000 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 539 x 300 x 406 mm (21.2 x 11.8 x 16.0 in.) CAVITY DIMENSIONS (W X H X D) 354 x 228 x 370 mm (13.9 x 9.0 x 14.6 in.) NET WEIGHT APPROX. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. -
Page 6: Features Diagram
FEATURES DIAGRAM 1. Door latch - When the door is closed it will 6. Door release button - Pushing this button automatically lock shut. If the door is opened stops oven operation and opens the door. while the oven is operating, the magnetron will automatically shut off. - Page 7 FEATURES DIAGRAM (continued) Def. Timer Lock 1. Bread 2. Soup AUTO 3. Baked Potato COOK 4. Fresh Vegetable 5. Frozen Vegetable One Touch Dish Warmer Frozen Pizza Beverage Pasta Auto Defrost Fish Poultry Meat Kitchen Power Defrost Clock Timer Stop/Clear Start/Speedy Cook 10.
-
Page 8: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into 220V~240V AC 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 9: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash ":0" and a tone will sound. If the AC power ever goes off, the display shows ":0" when the power comes back on. 1. Touch CLOCK pad. NOTE: This oven has multiple clock This is a 12 hour clock system. -
Page 10: Weight Defrosting
WEIGHT DEFROSTING WEIGHT DEFROSTING lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. The DEFROST & g indicator light and "500" is displayed. MEAT The display will show what you touched. 2. -
Page 11: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch POWER pad. The M/W indicator lights. (Select desired power level.) The display will show what you touched. POWER NOTE: If steps 1nd 2 are omitted, the oven will cook at full power. 2. Touch the number pads for the cooking time. This example shows power level 5. -
Page 12: Kitchen Timer Mode
KITCHEN TIMER MODE Timer operates as a minute timer, can be set to delay cooking and used as a hold setting after cooking.However delay cooking can not be programmed for defrost. Timer operates without microwave energy. HOW TO USE AS A MINUTE TIMER 1. -
Page 13: Speedy Cook
SPEEDY COOK SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the SPEEDY COOK pad. By repeatedly touching the SPEEDY COOK pad, you can also extend reheating time to 5 minutes by 30 second increments. 1. - Page 14 ONE TOUCH COOKING (CONTINUED) 1. Pour beverage in microwave mug. When you touch BEVERAGE pad once, "1" Place it on the turntable. is displayed. BEVERAGE Do not cover. Stir before serving. After 1.5 seconds, the display changes into 2. Touch BEVERAGE pad once cooking time of quantity and the oven starts for 1 cup, twice for 2 cups or cooking.
-
Page 15: Less, More
LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds. The overall one touch cooking time can be increased to a maximum of 99 minutes 50 seconds. Press LESS/MORE to decrease/increase the cooking time in multiples of 1 minute. -
Page 16: Utensil Test
UTENSIL TEST Dishes that do not absorb microwave energy are best for microwave cooking. Lock on the label to verify that particular cups, glasses, plates are indeed suitable, especially paper goods. If you are not sure, try this utensil test to check. •... -
Page 17: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN Turn the oven off before cleaning. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. -
Page 18: Use Your Microwave Oven Safely
USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety interlocks. Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads. Do not subject the oven door strain or weight such as a child hanging on an open door. -
Page 19: Questions And Answers
QUESTIONS AND ANSWERS * Q :I accidentally ran my microwave oven without any food in it. Is it damaged? A : Running the oven empty for a short time will not damage the oven. However, it is not recommended. * Q :Can the oven be used with the glass tray or roller guide removed? A : No. -
Page 20: Weight & Measure Conversion Chart
WEIGHT & MEASURE CONVERSION CHART POUNDS & OUNCES TO GRAMS POUNDS(lb.) GRAMS(g) OUNCES(oz.) GRAMS(g) OUNCES(oz.) GRAMS(g) 1361 1814 2268 2722 FLUID MEASUREMENTS 3175 3629 1 Cup 8 fluid ounces = 240 ml. 4082 1 Pint = 16 fluid ounces = 480 ml. 4526 1 Quart = 32 fluid ounces... -
Page 21: Care And Cleaning
CARE AND CLEANING Although your oven is provided with safety features, it is important to observe the following: 1. It is important not to defeat or tamper with safety interlocks. 2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. -
Page 22: Cooking Techniques
COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. require standing time(inside or outside of the oven) Food from a fridge takes longer to reheat than after cooking, to allow heat to finish conducting to food at room temperature. -
Page 23: Defrosting Guide
DEFROSTING GUIDE • Do not defrost covered meat. Covering might allow cooking to take place. Always remove outer wrap and tray. Use only containers that are microwave-safe. • Begin defrosting whole poultry breast-side- down. Begin defrosting roasts fat-side-down. • The shape of the package alters the defrosting time. Shallow rectangular shapes defrost more quickly than a deep block. -
Page 24: Defrosting Chart
DEFROSTING CHART Item and Weight Defrosting Time Standing Time Special Techniques BEEF Break apart and remove thawed Mineed beef 1 lb./454g 8-10 min. 15-20 min. portions with fork. Separate and rearrange once. Stew Meat 1 lbs./675g 9-11 min. 25-30 min. Turn over after half the time. -
Page 25: Cooking & Reheating Chart
COOKING & REHEATING CHART Item Power Level Cooking Time Per lb./450g MEAT Beef Standing / rolled Rib - Rare P-80 7-9 min. - Medium P-80 8-10 min. - well done P-80 10-12 min. Ground Beef (to brown for casserole) P-HI 4-6 min. -
Page 26: Vegetable Chart
ITEM POWER LEVEL Cooking Time Standing Time Ravioli or pasta in sauce 1 cup P-HI 2-3 min. Cook covered in microwaveable casserole. 4 cups P-HI 6-9 min. Stir once halfway through cooking. Sandwich roll or bun 1 roll P-HI 20-30 sec. Wrap in paper tower and place on glass microwaveable rack * Note : Do not use recycled paper towels. - Page 27 VEGETABLES AMOUNT TIME SPECIAL INSTRUCTIONS Mixed vegetable frozen 10-oz./280g package 2-5 min. In medium casserole, place 3 tbsp water. Peas fresh, shelled 1 lbs.(450g) unshelled 4-7 min. In medium casserole, place cup water. frozen 10-oz.(280g) package 2-6 min. In medium casserole, place 2 tbsp water. Potatoes fresh, cubed, white 4 potatoes (6-8 oz.
-
Page 28: Recipes
RECIPES TOMATO & ORANGE SOUP 1 oz.(25g) butter 1. Melt the in a large bowl on P-HI for 1 minute. 1 medium onion, chopped 2. Add the onion, carrot and potato and cook on P- HI for 6 minutes. stir halfway through cooking. 1 large carrot &... -
Page 29: White Sauce
BLUE CHEESE & CHIVE JACKETS 2 baking potatoes, 1. Prick each potato in several places. Cook on P- (approx.9 oz.(250g) each) HI for 10-11 minutes. Halve and scoop the flesh 2 oz.(50g) butter into a bowl, add the butter, cheese, chives, 4 oz.(100g) blue cheese, chopped mushrooms, salt and pepper, mix thoroughly. - Page 30 SCRAMBLED EDD oz.(15g) butter 1. Melt the butter in a bowl on P-HI for 1 minute. 2 eggs 2. Add the eggs, milk and seasoning and mix well. 2 tbsp(30ml) milk 3. Cook on P-HI for 3 minutes, stirring every 30 salt &...
