Chapter 1 Server Installation
(i)
(ii)
(i) [Automatic detection of Disk Array Subsystems connected by FC]
When you select [Automatic detection of Disk Array Subsystems connected by FC], disk arrays with the FC
connection are automatically detected and monitored.
(ii) [Disk Array Subsystem List]
[Disk Array Subsystem List] displays the disk array information currently registered.
(When a disk array specified by the disk number is selected, the column heading [IP Address or Host Name] in
the figure above appears as [Disk].) Up to 32 disk arrays can be registered in the [Disk Array Subsystem List].
(iii) [Add] button
To add a disk array, use the [Add] button to open the Add screen.
(iv) [Delete] button
To delete a disk array, select a disk array you want to delete, and click the [Delete] button.

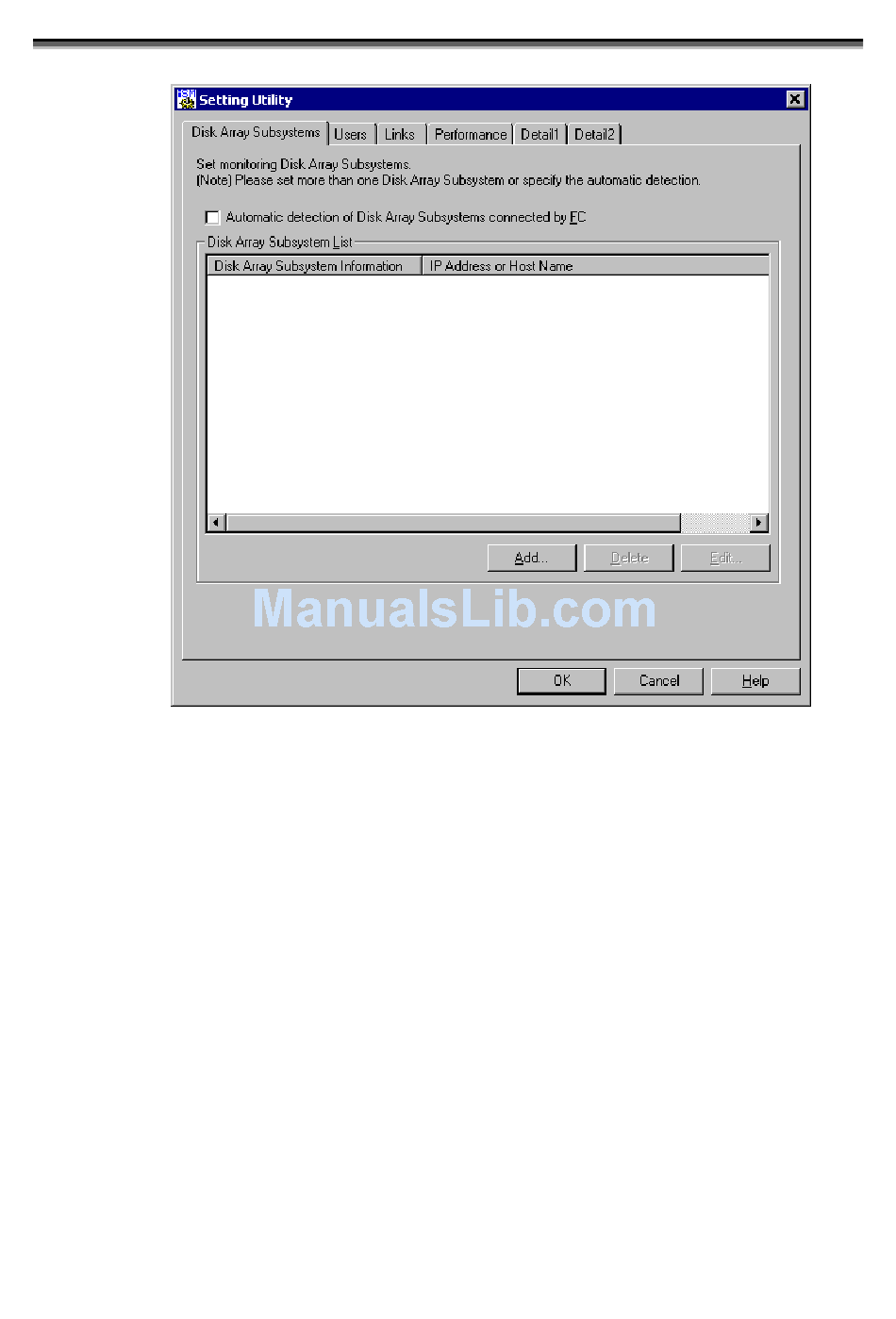

Figure 1-2 Disk Array Subsystem List Screen
I-6
(iii) (iv) (v)
