Omnitron Systems Technology MAH 200 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CODE READER
MAH 200
Quickstart Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAH 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omnitron Systems Technology MAH 200

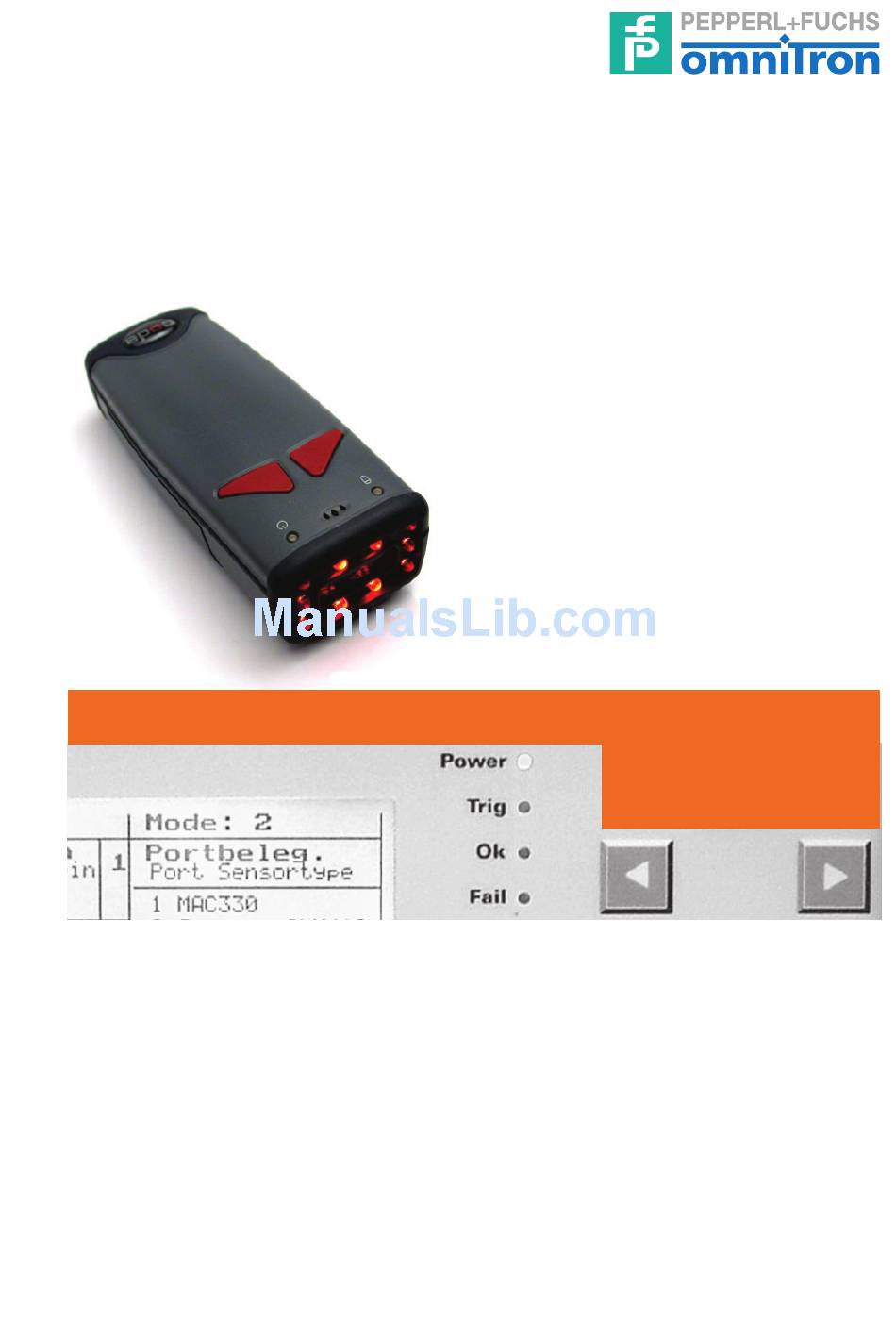

  • Page 1 CODE READER MAH 200 Quickstart Guide...
  • Page 2 QUICKSTART GUIDE CODE READER MAH 200 Designation of this documentation: Technical manual for the Code Reader MAH 200 Version of the described product: Editorial version of this documentation: 02/05 © Copyright Omnitron AG...

  • Page 3: General Information

    QUICKSTART GUIDE CODE READER MAH 200 GENERAL INFORMATION This documentation has been created with great care. Nevertheless, progress in technology can cause changes of the product leading to deviations between this documentation and the actual product. The content of this documentation, the technical data and the specifications of the product may be changed without prior notice.

  • Page 4: Table Of Contents

    QUICKSTART GUIDE CODE READER MAH 200 TABLE OF CONTENTS GENERAL INFORMATION ....................ii TABLE OF CONTENTS ...................... iii INTRODUCTION ........................ 1-1 TARGETING AND READING TECHNIQUES ............. 1-2 VARIOUS PROGRAMMING CODES ................1-4 Reader-ID and Firmware ..................... 1-4 Reseting and storing of reader configurations ..............1-4 TECHNICAL DATA ......................

  • Page 5: Introduction

    CODE READER MAH 200 INTRODUCTION MAH 200 is a revolutionary new, bar MAH 200. Developed to be the first universal reader, no other single device performs as many functions. With a cost of ownership far less than comparable systems, the MAH 200 incorporates a unique dual path optical system, a 1.3 million pixel CMOS sensor, and a 400 MHz processor.

  • Page 6: Targeting And Reading Techniques

    CODE READER MAH 200 TARGETING AND READING TECHNIQUES The MAH 200 utilizes digital camera technology to take a pictures of a symbol. Once an image is captured, the MAH 200 utilizes advanced decoding algorithms to extract data from the captured image.
  • Page 7 QUICKSTART GUIDE CODE READER MAH 200 NOTE: The MAH 200 can read a symbol that is not centered however, the MAH 200 performs best when a code is centered. If two (2) bar codes are with the imagers decode zone, the MAH 200 will decode the symbol closest to the center of the aiming dot.

  • Page 8: Various Programming Codes

    QUICKSTART GUIDE CODE READER MAH 200 VARIOUS PROGRAMMING CODES Reader-ID and Firmware Ausgabe der Leser-ID und der Firmware Reseting and storing of reader configurations Clear All Stored Data Clear All CodeXML Rules Reset to USB Factory Defaults Reset to RS-232...

  • Page 9: Technical Data

    QUICKSTART GUIDE CODE READER MAH 200 TECHNICAL DATA Overview Symbologies MaxiCode, PDF417, Data Matrix, QR Code,MicroPDF 417, GoCode, UCC Composite, Aztec Code, Code 39, Code 128, UPC, EAN, JAN, Int 2 of 5, Codabar, Code 93, UCC RSS, POSTNET, PLANET,...

  • Page 10: Decode Zone

    QUICKSTART GUIDE CODE READER MAH 200 Decode zone...

  • Page 11: System Requirements

    QUICKSTART GUIDE CODE READER MAH 200 SYSTEM REQUIREMENTS Operating System Windows 98 (Version 2), ME, 2000, XP Interfaces USB or RS-232 / seriell / PS 2 Bluetooth The MAH 200 supports the seriell communication profil.

  • Page 12: Order Information

    CODE READER MAH 200 ORDER INFORMATIONEN Part-Nr. Description 182028 MAH 200 Handheld reader with 1.80m cable for USB interface 182029 MAH 200 Handheld reader with gun format handle, 1.80m cable for USB interface 182030 MAH 200 Handheld reader with batch store, 1.80m cable for...
  • Page 13 QUICKSTART GUIDE CODE READER MAH 200 Part-Nr. Description Options/ Spare parts Options/ Spare parts 182044 Power Supply RS232 182045 Battery Charger incl. power supply 182046 Code Router Software (Bluetooth Edition Windows) 182047 Bracket for MAH 200 182048 Bluetooth modem incl. RS 232 cable and power supply 182049 Cable 2.40m for RS232 Interface incl.

  • Page 14: Appendix A - Usb Interface

    1. Make sure the USB cable is sufficiently attached to your MAH 200 unit (figure 2.1). 2. You DO NOT need to power off your host computer (figure 2.2). The MAH 200 with USB interface can be plugged into any host while the computer is powered up.

  • Page 15: Appendix B - Rs-232 Interface

    RS-232 interface and utilizing Batch functionality, please read the Important Note in section 7.1. If you are using the 1300 mA or 1800 mA battery for batch mode, the MAH 200 will recharge the battery whenever the unit is a attached to a RS-232 cable that is plugged into a wall socket.

  • Page 16: Appendix C - Ps 2 Interface

    . The MAH 200 is powered by the PS2 port and does not require a power supply. 5. Set the MAH 200 to PS2 mode by scanning the code below, then scan the Save Settings code: PS2 Mode Save Settings 6.

  • Page 17: Appendix D - Bluetooth Radio Overview

    APPENDIX D – BLUETOOTH RADIO OVERVIEW Overview This version of the MAH 200 features a Bluetooth® wireless radio. The radio allows for point to point wireless communication with other Bluetooth devices that support serial port protocol (SPP). The following guide will give you general instructions on connecting your MAH 200 to a desktop or laptop computer with a Bluetooth radio.

  • Page 18: Bluetooth Radio Overview

    When the MAH 200 detects the radio is out of range, the MAH 200 will store data on the reader’s non volatile memory. The reader will continue to try and send data until radio is back in range.

  • Page 19: Bluetooth Radio Overview (Con't

    Bluetooth connection manager for 10 – 15 seconds after the command is issued). The MAH 200 will also disconnect after 90 seconds of inactivity (Note: You may change the radio frequency sleep time out setting however, it may reduce battery life).
