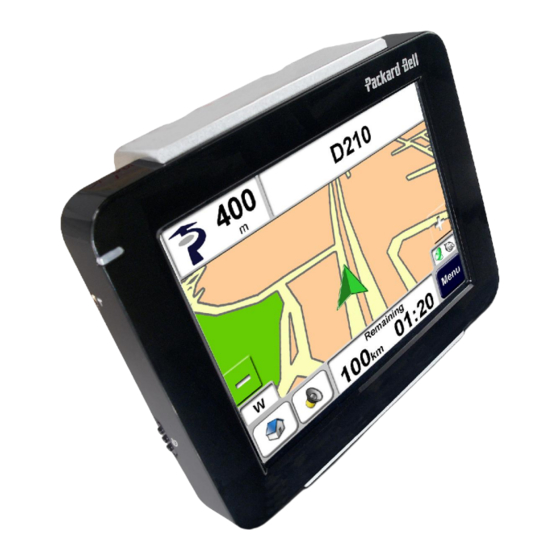

Packard Bell
Compasseo 300 & 400
Disassembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compaesseo 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Packard Bell Compaesseo 400

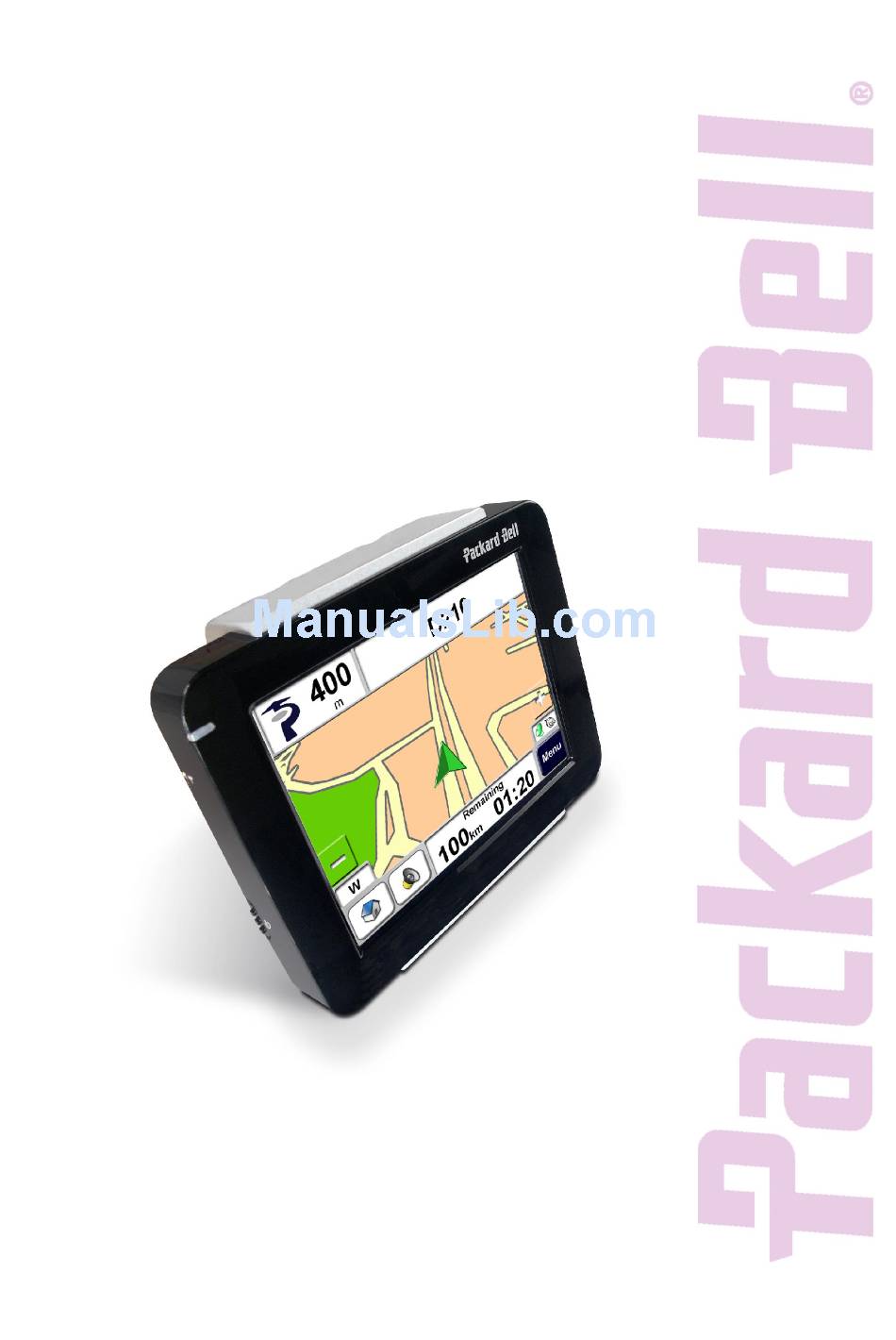

  • Page 1 Packard Bell Compasseo 300 & 400 Disassembly Manual...
  • Page 2: Table Of Contents

    Table of Contents Overview ..............................1 Disassembly Instructions......................... 1 Reassembly Instructions ......................... 1 Required Tools ............................1 Opening the Case ........................... 2 The Speaker ............................2 The Antenna ............................3 The Antenna Holder..........................3 The GPS Module ............................ 4 The Mainboard............................5 The LCD Panel ............................
  • Page 3: Overview

    Packard Bell reserves the right to make changes to the product without notice. Disassembly Instructions When disassembling the system unit, follow these general rules: Turn off the power using the battery switch.
  • Page 4: Opening The Case

    Opening the Case To open the case, do as follows: 1. Remove the two screws at the bottom of the Compasseo. Fig. 1 Bottom of the Compasseo. 2. Remove the four rubbers from the holes at the back. 3. Then remove the four screws from the same holes. 4.
  • Page 5: The Antenna

    3. Remove the two screws that secure the speaker to the antenna holder (see the circles in Fig. 3). Fig. 3 Speaker screws and cable connector. The Antenna Perform the following steps to remove the antenna: 1. Disconnect the GPS antenna from the Mainboard (see the circle to your right in Fig. 4). 2.
  • Page 6: The Gps Module

    2. Lift the antenna holder from the mainboard. Fig. 5 The screw that keeps the antenna holder in place. The GPS Module Follow these steps to remove the GPS module: 1. Disconnect the GPS cable from the Mainboard (see the square in Fig. 6). 2.
  • Page 7: The Mainboard

    The Mainboard Follow the steps below to remove the mainboard: 1. Unlock the flat cable lock upwards (see the square in Fig. 7). 2. Take the flat cable out of the connector. 3. Lift the mainboard from the casing. Fig. 7 The flat cable socket on the mainboard The LCD Panel Follow the steps below to remove the LCD panel:...
  • Page 8: Notice

    This document contains information protected by copyright. No part of this document may be photocopied or reproduced in any form or by any means without prior written consent from Packard Bell B.V. PACKARD BELL B.V. SHALL NOT BE HELD LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN;...

This manual is also suitable for:

Compaesseo 300
