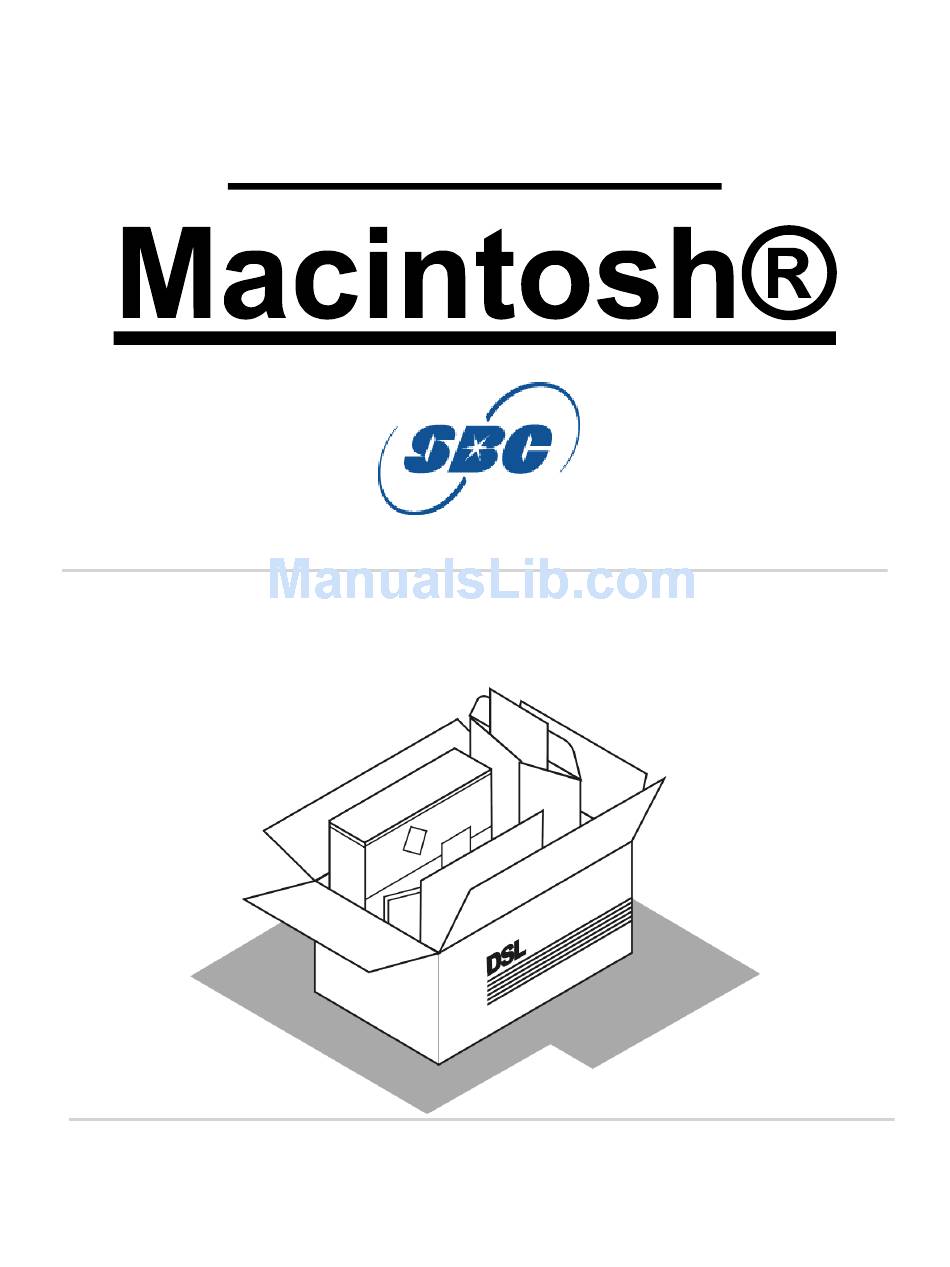

- Page 1 READ ME FIRST ® *DSL Equipment Installation Guide: Westell® 516 *Digital Subscriber Line Part Number: W516MC01 Version 1.1 ©2001 SBC Advanced Solutions, Inc. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Follow Steps 1 through 8 to complete the DSL Equipment Installation Step 1: Verify Your System Requirements and Documents Step 2: Verify the Contents of Your DSL Equipment Kit Step 3: Install a Telephone Filter on Every Telephone Line Step 4: Choose Your Modem and Check Your Minimum Requirements Step 5: Installing the Kingston®... -
Page 3: Step 1: Verify Your System Requirements And Documents
Step 1 : Verify Your System Requirements and Documents This Installation Guide is for Macintosh® users only. The SBC Express installation software will ensure that you meet the following minimum requirements. You will not be able to complete the installation without meeting these requirements. -
Page 4: Step 2: Verify The Contents Of Your Dsl Equipment Kit
Step 2 : Verify the Contents of Your DSL Equipment Kit Your DSL Equipment Kit Contains: A: This Installation Guide and the SBC Express Installation CD. B: 1 Westell 516 DSL Modem with Ethernet cable (connects to Adapter, below), and power cable. ®... -
Page 5: Step 3: Install A Telephone Filter On Every Telephone Line
Step 3 : Install a Telephone Filter on Every Telephone Line Set up the phone jack where your DSL modem will go. 1) Locate the phone jack where you want to connect your DSL 2) Insert the 2-way adapter in the phone jack 3) Connect a filter to one side of the 2-way... - Page 6 4) If you have a phone, fax machine, analog modem or other phone device at this location, connect it to the filter 5) Connect the data cable that will go to your DSL modem to the unfiltered side of the 2-way adapter To the DSL modem Installation Guide for Customer Self-Install: Westell ®...
- Page 7 Install a filter on all other phones and phone devices. Why do I need a filter on all my other phones and phone devices? Converting your regular phone line into a high-speed Digital Subscriber Line (DSL) can cause audible noise (high pitched tones and static) when you talk on the phone. You need to install a filter on every telephone or device that shares the same phone number as your DSL line to eliminate this noise.
-
Page 8: Step 4: Choose Your Modem And Check Your Minimum Requirements
Step 4 : Choose Your Modem and Minimum Requirements Check Insert the SBC Express CD into your CD-ROM drive. Double click the “SBC Express” icon. SBC Express displays the Welcome screen. Click Start to proceed. Installation Guide for Customer Self-Install: Westell ® 516, Macintosh Page 7 ©2001 SBC Advanced Solutions, Inc. - Page 9 SBC Express displays the license agreement. If you agree to the terms, click Accept. If you do not accept, installation cannot continue. SBC Express quickly checks your computer system to ensure that it meets the minimum requirements for DSL service. Click Next to proceed if you meet all requirements. Installation Guide for Customer Self-Install: Westell ®...
- Page 10 If your computer meets the minimum requirements, SBC Express automatically proceeds to the next step. You should continue to Step 6 on page 11. If you shutdown your computer, leave the CD in the CD-ROM drive, and SBC Express will continue after you restart. If your computer does not meet the minimum requirements, SBC Express displays a message with details of the problem.
-
Page 11: Step 5: Installing The Kingston® Software And Hardware
Step 5 : Installing the Kingston® hardware (if needed) IMPORTANT NOTE: Most Macintosh computers already have an Ethernet card installed. If this is the case with your Macintosh, SBC Express would have reported that you passed the minimum requirements. If you see the following screen, it is not necessary to install the Kingston® provided in this equipment package. -
Page 12: Step 6: Install The Westell® Dsl Modem
Step 6: Install the Westell 516 DSL Modem ® Your computer should be turned on. Your modem should be turned OFF. You should be at the following screen in the SBC Express Software. Only click Next AFTER modem is setup. 6-1 Consult the following diagram. - Page 13 Plug the power cable into the DSL modem and an electrical outlet. Connect the data cable to your telephone jack and your DSL modem. There should NOT be a filter between the data cable and the wall jack. Connect the Ethernet cable to the Kingston® Ethernet Port or the built –in Ethernet Port on the back of your PC and to the Ethernet Port on the back of your DSL modem.
-
Page 14: Step 7: Finish Configuring Your System
Step 7 : Finish Configuring Your System SBC Express now prompts you for your first and last name. Please type your first and last name and then click Next to proceed. Enter your 10-digit phone number in the next screen. Click Next to proceed. Installation Guide for Customer Self-Install: Westell ®... - Page 15 Congratulations! You have finished setting up your DSL hardware. Click Quit in SBC Express and then proceed to Step 8. Installation Guide for Customer Self-Install: Westell ® 516, Macintosh Page 14 ©2001 SBC Advanced Solutions, Inc. All rights reserved.
-
Page 16: Step 8: Follow Internet Service Provider Instructions
Step 8 : Follow the Instructions Supplied Separately by your Internet Service Provider Your Internet Service Provider may have provided you additional instructions. These instructions may contain information about account setup, additional software installation, and/or Internet usage. Please follow those instructions to complete your Internet connection setup. Your Internet Service Provider will offer technical assistance if you need help connecting to the Internet. -
Page 17: Appendices
Appendices Installation Guide for Customer Self-Install: Westell ® 516, Macintosh Page 16 ©2001 SBC Advanced Solutions, Inc. All rights reserved. -
Page 18: Having Trouble
APPENDIX A Having Trouble? If the suggestions below don’t resolve your problem, technical support is available from your Internet Service Provider. Please refer to the Internet Service Provider's information on how to contact them for technical assistance. I can’t open my computer case. What do I do? •... -
Page 19: Installing The Kingston® Software And Hardware
APPENDIX B: Installing the Kingston® hardware (if needed—see Step 5) IMPORTANT NOTE: If your computer already has an Ethernet card installed and passed the minimum requirements step in the SBC Express Installation Software, it is not provided in this equipment package. If necessary to install the Kingston®... -
Page 20: Desktop Systems - Installing The Kingston® Ethernet Adapter
Installing the Kingston® Ethernet Adapter • Follow steps B-1 through B-10 below for Desktop Macintosh installations. • For Laptops, skip to step B-11. DESKTOP Systems Click Quit in SBC Express and then turn off all peripheral devices. Remember to leave the SBC Express CD in the CD-ROM drive. Unplug the power cord for your computer from the electrical outlet. - Page 21 Verify that the end bracket is flush against the chassis. Make sure the gold connectors along the base of the Kingston® Ethernet Adapter are completely and evenly inserted into the PCI slot. Fasten the card into the computer chassis with the screw you set aside earlier. B-10 Replace the computer cover.
-
Page 22: Laptop Systems- Installing The Kingston® Ethernet Adapter
LAPTOP Systems- Installing the Kingston® Ethernet Adapter B-11 Insert the Kingston® Card into your computer’s PCMCIA Type II or Type III slot. B-12 Carefully push the Media Access Module (MAM) into the socket on the Card until the locking tabs click into place. B-13 Power up your laptop after making sure the SBC Express CD is still in the CD-ROM drive. - Page 23 B-16 From the Kingston Welcome screen, click on Continue to proceed. ® B-17 Click on the Install button in the bottom right corner of the Kingston Installer window ® to proceed with the default Easy Install option. This option will install the Kingston driver and ®...
-
Page 24: Uninstalling/Reinstalling The Kingston® Adapter
Appendix C I want to uninstall/reinstall the Kingston® Adapter. What do I do? 1. Insert the SBC Express Installation CD. Open the “Drivers” folder. Open the “Kne111tx” (desktop) or “Knepc2t” (laptop) folder. 2. Double click on the Installer icon. 3. From the Kingston® Welcome screen, click on Continue to proceed. Installation Guide for Customer Self-Install: Westell ®... - Page 25 4. Select the Custom Remove option from the pulldown menu in the upper left corner. 5. Place an X in the boxes to select the components to remove and click the Remove button in the lower right corner of the window. Installation Guide for Customer Self-Install: Westell ®...
- Page 26 6. Click Restart to complete the Kingston® software removal. 7. Once the computer has restarted, select Shut Down to power down the desktop or laptop. 8. After the computer shuts down, unplug the computer and any peripheral devices. 9. Remove the Kingston® Adapter Card DESKTOP: For the Internal Kingston®...
-
Page 27: Troubleshooting Sbc Express
APPENDIX D Troubleshooting SBC Express Please refer to this list if you are having problems using SBC Express or if you receive an error message. If after troubleshooting, you are still having problems, then you should contact your Internet Service Provider 'help desk' for further information. Step Problem Solution... - Page 28 Ping Test The Ping Test is usually accomplished within the Configure Failure during this test can occur from invalid TCP/IP step, where SBC Express pings the default gateway. network settings, the Ethernet cable not being An explicit IP address can also be used. plugged in, the DSL modem not being in synch, or if the specified IP address does not allow a ping.
