Chapter 2
Hardware Description
This section describes the hardware features of the Switch. For
easier management and control of the Switch, familiarize
yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators.
Before connecting any network device to the hub, read this
chapter carefully.
Front Panel
The unit front panel provides a simple interface monitoring the
Switch. It includes a power indicator for each port.

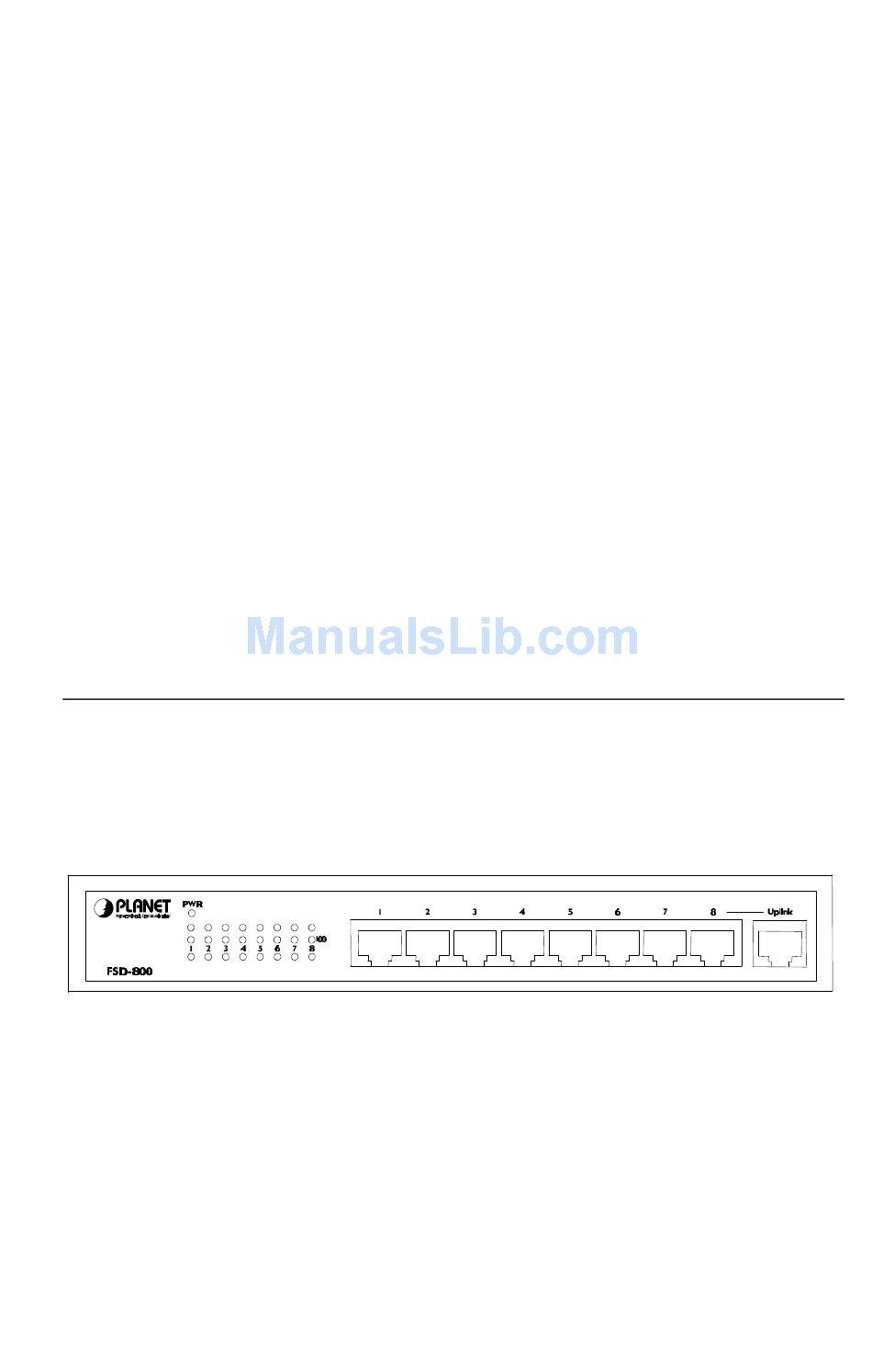

Figure 1. Front Panel of FSD-800
