Uplink

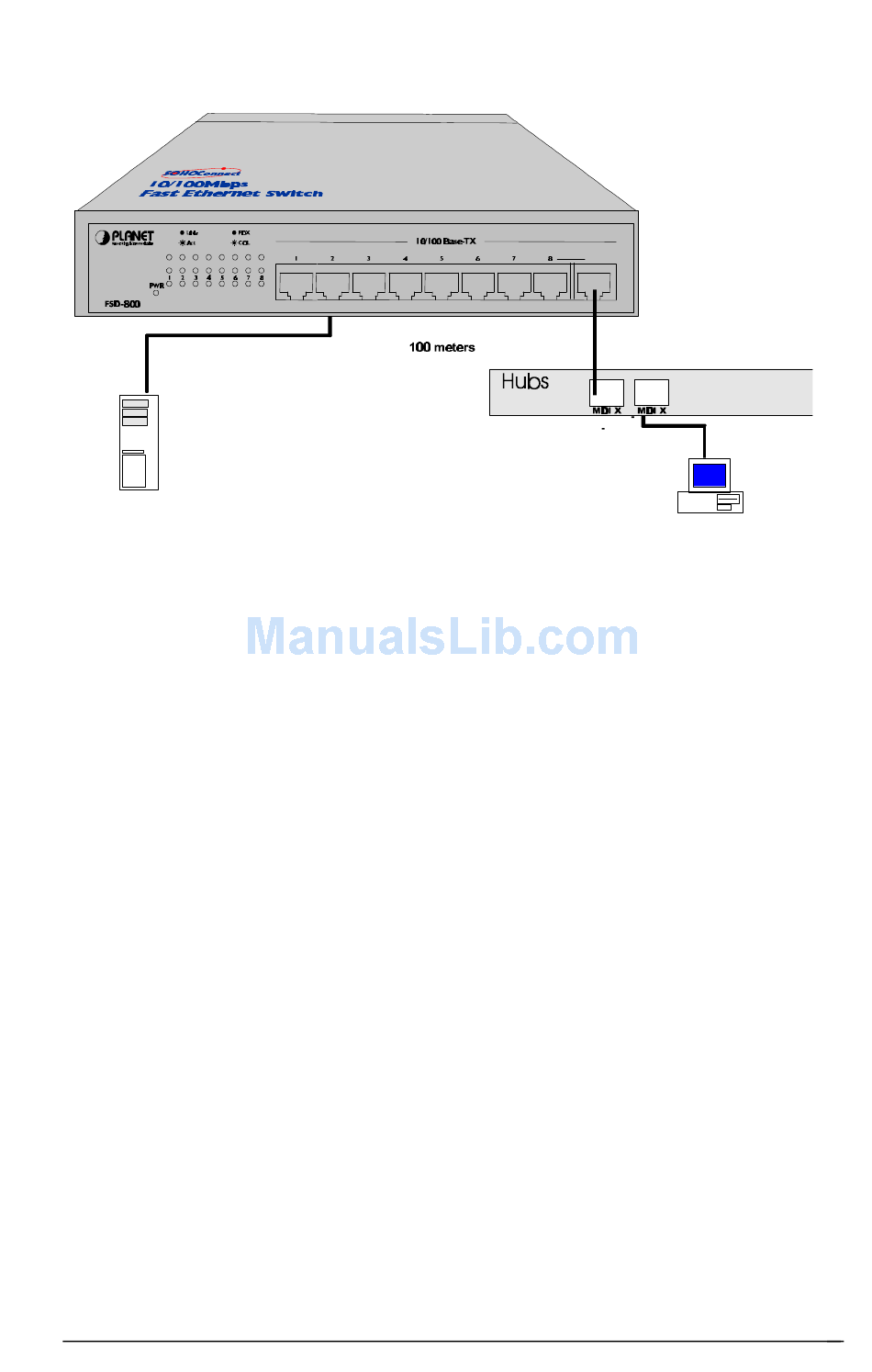

Figure 3. 100Mbps File server to Hubs Connection
10Mbps Hub to 100Mbps Hub
Plug one end of the Category 5 UTP Cable into one port of the
Switch, and the other end of this cable into "Uplink" port of the
100Mbps Fast Ethernet Hub. The cable length between these 2
connecting points should not exceed 100 meters.
Plug one end of the Category 3 UTP Cable into one port of the
Switch, and the other end of this cable into "Uplink" port of the
10Mbps Ethernet Hub. The cable length between these 2
connecting points should not exceed 100 meters.
FSD-800 User's Manual
9
