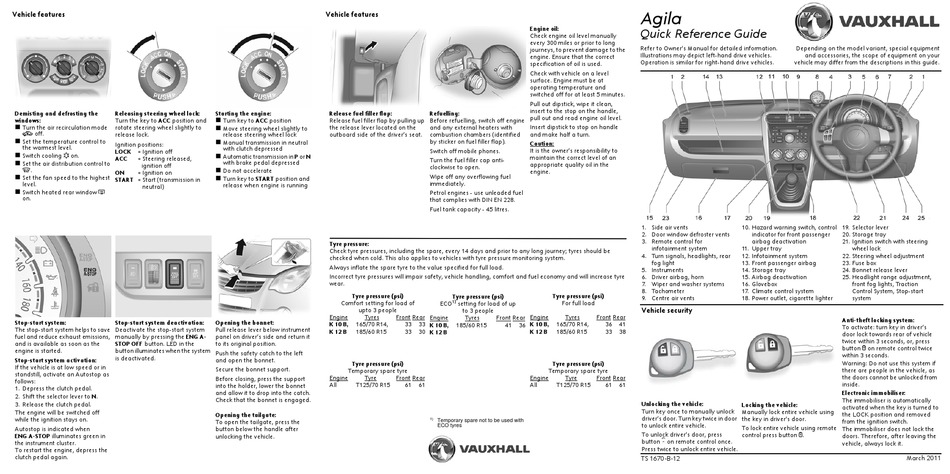

Vauxhall Agila Quick Reference Manual

Vehicle features
Demisting and defrosting the Releasing steering wheel lock:
windows: Turn the key to ACC position and
Turn the air recirculation mode rotate steering wheel slightly to
4 off.
release lock.
Set the temperature control to
Ignition positions:
the warmest level.
LOCK = Ignition off
Switch cooling n on.
ACC = Steering released,
Set the air distribution control to
ignition off
V.
ON = Ignition on
Set the fan speed to the highest
START = Start (transmission in
level.
neutral)
Switch heated rear window Ü
on.
Stop-start system: Stop-start system deactivation:
The stop-start system helps to save Deactivate the stop-start system
fuel and reduce exhaust emissions, manually by pressing the ENG A-
and is available as soon as the STOP OFF button. LED in the
engine is started. button illuminates when the system
is deactivated.
Stop-start system activation:
If the vehicle is at low speed or in
standstill, activate an Autostop as
follows:
1. Depress the clutch pedal.
2. Shift the selector lever to N.
3. Release the clutch pedal.
The engine will be switched off
while the ignition stays on.
Autostop is indicated when
ENG A-STOP illuminates green in
the instrument cluster.
To restart the engine, depress the
clutch pedal again.
Vehicle features
Starting the engine: Release fuel filler flap:
Turn key to ACC position Release fuel filler flap by pulling up
the release lever located on the
Move steering wheel slightly to
release steering wheel lock outboard side of the driver's seat.
Manual transmission in neutral
with clutch depressed
Automatic transmission in P or N
with brake pedal depressed
Do not accelerate
Turn key to START position and
release when engine is running
Tyre pressure:
Check tyre pressures, including the spare, every 14 days and prior to any long journey; tyres should be
checked when cold. This also applies to vehicles with tyre pressure monitoring system.
Always inflate the spare tyre to the value specified for full load.
Incorrect tyre pressures will impair safety, vehicle handling, comfort and fuel economy and will increase tyre
wear.
Tyre pressure (psi)
Comfort setting for load of
upto 3 people
Engine Tyres Front Rear
Opening the bonnet:
K 10 B, 165/70 R14,
Pull release lever below instrument
K 12 B 185/60 R15
panel on driver's side and return it
to its original position.
Push the safety catch to the left
and open the bonnet.
Tyre pressure (psi)
Secure the bonnet support.
Temporary spare tyre
Engine Tyre Front Rear
Before closing, press the support
All T125/70 R15
into the holder, lower the bonnet
and allow it to drop into the catch.
Check that the bonnet is engaged.
Opening the tailgate:
To open the tailgate, press the
button below the handle after
unlocking the vehicle.
Engine oil:
Check engine oil level manually
every 300 miles or prior to long
journeys, to prevent damage to the
engine. Ensure that the correct
specification of oil is used.
Check with vehicle on a level
surface. Engine must be at
operating temperature and
switched off for at least 5 minutes.
Pull out dipstick, wipe it clean,
insert to the stop on the handle,
Refuelling:
pull out and read engine oil level.
Before refuelling, switch off engine
and any external heaters with Insert dipstick to stop on handle
combustion chambers (identified and make half a turn.
by sticker on fuel filler flap).
Caution:
Switch off mobile phones. It is the owner's responsibility to
maintain the correct level of an
Turn the fuel filler cap anti-
appropriate quality oil in the
clockwise to open.
engine.
Wipe off any overflowing fuel
immediately.
Petrol engines - use unleaded fuel
that complies with DIN EN 228.
Fuel tank capacity - 45 litres.
Tyre pressure (psi) Tyre pressure (psi)
1)
ECO setting for load of up For full load
to 3 people
Engine Tyres Front Rear Engine Tyres
33 33 K 10 B, 165/70 R14,
K 10 B, 185/60 R15 41 36
33 30 K 12 B 185/60 R15
K 12 B
Tyre pressure (psi)
Temporary spare tyre
Engine Tyre
61 61 All T125/70 R15
1)
Temporary spare not to be used with
ECO tyres
Agila

Quick Reference Guide

Refer to Owner's Manual for detailed information.
Illustrations may depict left-hand drive vehicles.
Operation is similar for right-hand drive vehicles.
1. Side air vents 10. Hazard warning switch, control
2. Door window defroster vents indicator for front passenger
3. Remote control for airbag deactivation
infotainment system 11. Upper tray
4. Turn signals, headlights, rear 12. Infotainment system
fog light 13. Front passenger airbag
5. Instruments 14. Storage tray
6. Driver airbag, horn 15. Airbag deactivation
7. Wiper and washer systems 16. Glovebox
8. Tachometer 17. Climate control system
9. Centre air vents 18. Power outlet, cigarette lighter
Vehicle security
Front Rear
36 41
33 38
Front Rear
61 61
Unlocking the vehicle:
Locking the vehicle:
Turn key once to manually unlock
Manually lock entire vehicle using
driver's door. Turn key twice in door
the key in driver's door.
to unlock entire vehicle.
To lock entire vehicle using remote
To unlock driver's door, press control press button e.
button c on remote control once.
Press twice to unlock entire vehicle.
TS 1670-B-12
Depending on the model variant, special equipment
and accessories, the scope of equipment on your
vehicle may differ from the descriptions in this guide.
19. Selector lever
20. Storage tray
21. Ignition switch with steering
wheel lock
22. Steering wheel adjustment
23. Fuse box
24. Bonnet release lever
25. Headlight range adjustment,
front fog lights, Traction
Control System, Stop-start
system
Anti-theft locking system:
To activate: turn key in driver's
door lock towards rear of vehicle
twice within 3 seconds, or, press
button e on remote control twice
within 3 seconds.
Warning: Do not use this system if
there are people in the vehicle, as
the doors cannot be unlocked from
inside.
Electronic immobiliser:
The immobiliser is automatically
activated when the key is turned to
the LOCK position and removed
from the ignition switch.
The immobiliser does not lock the
doors. Therefore, after leaving the
vehicle, always lock it.
March 2011
