Summary of Contents for Binatone Speakeasy 200
-

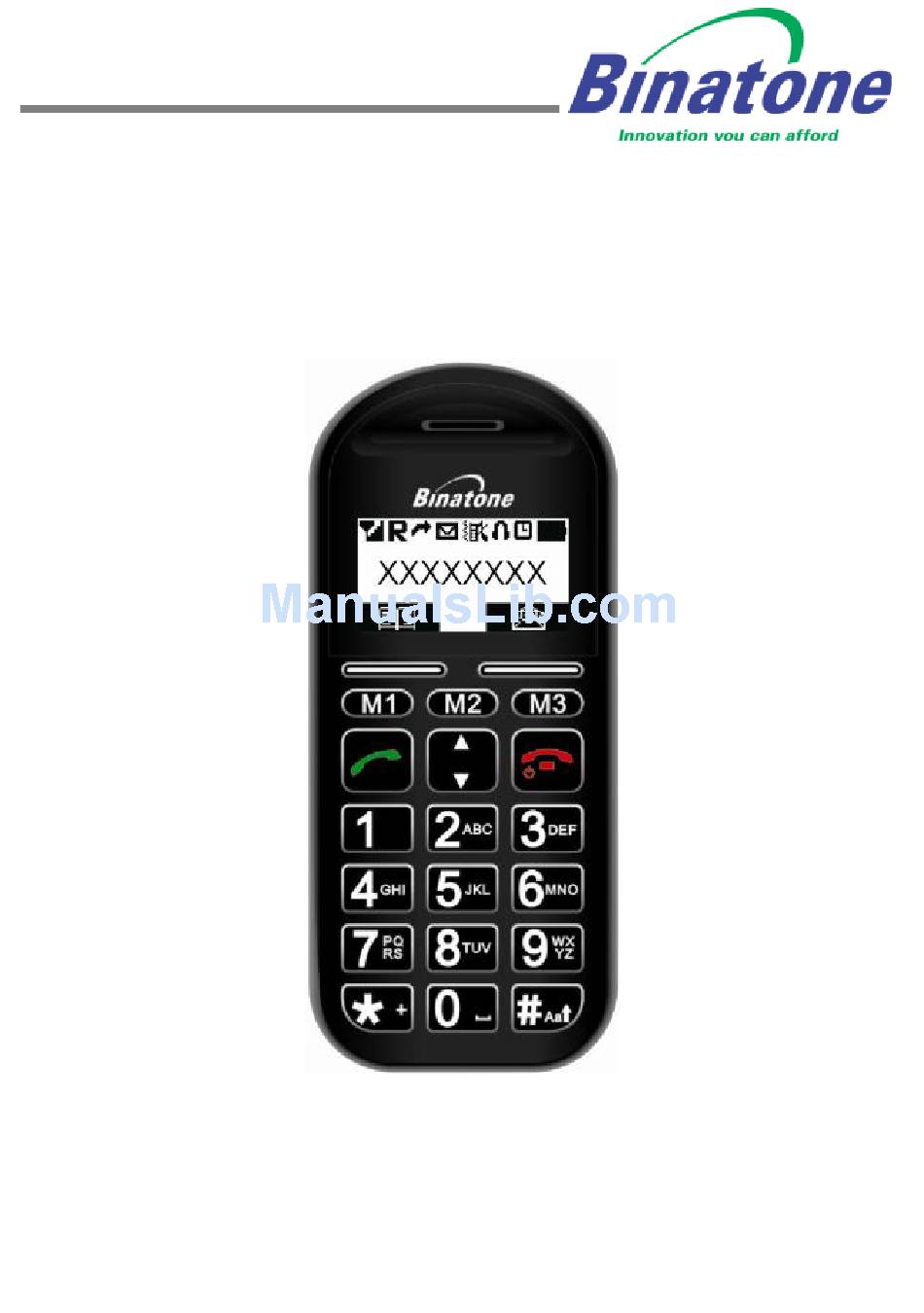

Page 1: User Guide
USER GUIDE Speakeasy 200 Before operating this set, please read these instructions carefully. -
Page 2: If You Need Help
If you need help … The Binatone Help Line is available from 9.00am-5.00 pm, Monday to Friday, on 0845 345 9677 (BT Local Call rate) Or visit our website: http://www.binatoneonline.com/ Unpacking your Speakeasy GSM Mobile In the box are: the mobile handset ... -
Page 3: Table Of Contents
Contents Where to find it…………………..…………..………… Symbols on the display ………..………………….… Menu Operation …………….…..………………..…… Read these notes first……..……….………….…… Installation and setup………………………..….…… Switching On and Off …………………..……..…..… 10 Making & answering calls…………………………… 11 Using the Phone Book & Fast keys (M1-M3)…..… 13 Call log……………………………………………….…. -
Page 4: Where To Find It
Press and hold 3sec to Key Lock/Unlock button Slide up to unlock and down to lock the keypad start SOS call procedure Key Lock/Unlock button Slide up to unlock and down to lock the keypad Binatone Help Line : 0845 345 9677... -
Page 5: Symbols On The Display
Symbols on the display The default idle screen shows the clock. Press the End Call key to show the operator name idle screen, as below, for a few seconds. The network name in service (If display option set) 1 - The left selection key in the idle mode is Menu. 2 - The right selection key in the idle mode is SMS. -
Page 6: Menu Operation
When writing text, use the # key to switch cases: Upper case (ABC), Title case (Abc), Lower case (abc) or Numerals (123). Use Up or Down to move the cursor, Clear ( ) to delete letters and the * key for symbols/punctuation. Binatone Help Line : 0845 345 9677... -
Page 7: Read These Notes First
Read these notes first Your phone is an electronic product and should be treated with care to meet any warranty and safety obligations. SWITCH ON SAFELY – Don’t use if mobile phones are prohibited or may cause interference or danger. ... - Page 8 6. Replace the back cover by placing it flat on the back of the handset and sliding down until it clicks into place. Binatone Help Line : 0845 345 9677...
- Page 9 Charge the battery Warning! Use only batteries and chargers supplied with or approved by Binatone for this model. Use of others will invalidate approvals or warranty and may be dangerous. Do not charge the battery with the back cover removed.
- Page 10 Power/Headset socket on the left side of the handset. When using headsets, including Binatone approved ones, pay attention to volume levels and read its user guide for safety instructions. Do not connect incompatible products.
-
Page 11: Switching On And Off
Switching On and Off To switch the phone on and off To switch off, press and hold End Call until the display clears. To switch back on, press and hold End Call until the display turns on. Warning! Do not switch on when mobile phone use is prohibited or if it may cause interference or danger. -
Page 12: Making & Answering Calls
Press the right soft key to reject the call directly to your network voicemail service. Earpiece volume During a call, press Up / Down to alter the volume. The volume level displays, & stays for future calls. Binatone Help Line : 0845 345 9677... -
Page 13: To Mute The Microphone
To switch to speakerphone During a call, press Speakerphone On ( ). The right soft key symbol will change to To end the call press End Call, To return to normal earpiece mode, press Speakerphone Off ( To mute the microphone During a call, press Options ( ) &... -
Page 14: Using The Phone Book & Fast Keys (M1-M3)
Press Down to open the phonebook Press Up / Down to find the name you want, or key the first letter of the name then Up / Down. Press Talk to dial the number. Binatone Help Line : 0845 345 9677... - Page 15 To edit (change) a Phone Book entry Find the entry to edit, select Options ( ), Edit then modify the name, select Next ( ) & modify the number. Press Save ( ) to save the change(s). To view the details of a stored number Find the entry to edit, select Options ( ), Details To delete a Phone Book entry...
-
Page 16: Call Log
Edit & call to edit and then call the number, Message to send an SMS to it, Save to save it to the phonebook, Delete to delete that entry, Del. all to delete all entries. Binatone Help Line : 0845 345 9677... -
Page 17: Sms Text Messaging
SMS text messaging Send & receive text messages. These are saved in the phone memory (up to 100) or on the SIM card (SIM dependant, but a maximum of 100). Received SMS are stored in the Inbox and the icon indicates new messages. - Page 18 ), and then follow the menus. To delete all Messages Press SMS ( ), Del. all to display Del. all, Del. inbox, Del. outbox, Del. draftbox Select ( ) the option to delete the required messages. Binatone Help Line : 0845 345 9677...
- Page 19 To change the SMS message centre settings Press SMS ( ), Msg Settings to display Centre no. – the SMS service number Validity** – the SMS storage time Report** – to request send delivery reports Reply path** – to use own replay path Select ( ) the option required and then follow the menus.
-
Page 20: Settings
Date & time – the displayed date and time Date format – European or USA format Time format – 12 hour or 24 hour Clock type - analogue or digital style World time - a second time zone. Binatone Help Line : 0845 345 9677... -
Page 21: Network
– check availability with your service provider. Network Call waiting – press Talk to answer 2nd call / hold 1st Diverts – to set different incoming call diverts Call barring – to restrict making and receiving calls Network mode – to select a different network Call –... -
Page 22: Alarm Clock
) On or Off – the current selection is Select ( ticked If On is selected, set the time & One shot or Weekly where each day can be selected using the Talk key. icon will appear on the display. Binatone Help Line : 0845 345 9677... -
Page 23: Sos Button
SOS Button During idle mode, press and hold the SOS button for 3 seconds to start the emergency call operation. The phone will send an emergency SMS to any programmed emergency numbers 1 & 2 & 3, and it outputs an emergency ring (siren) from the speaker during the SMS sending. - Page 24 A default text message is pre-set in the phone, but can be changed if required. Select SOS text then modify and save the message as for normal SMS text messaging (see page 16). Binatone Help Line : 0845 345 9677...
-
Page 25: Troubleshooting
Troubleshooting “Call failed” appears Check dialled number is correct, with full area code SIM card fitted – only Some SIM cards are thinner than others. Lightly press the makes emergency call SIM card holder to ensure a proper contact is made. The mobile phone The phone is switched off. -
Page 26: Guarantee And Service Information
Make sure you include your name & address, and cheque or postal order for the repair charge, and a brief description of the fault, with the Speakeasy GSM. Return your Speakeasy GSM to the address given. This does not affect your statutory rights. Binatone Help Line : 0845 345 9677... -
Page 27: Battery Information
When the operating time becomes noticeably shorter than normal, it is time to buy a new battery. Use only batteries & chargers approved by Binatone and unplug the charger when not in use. (There is a risk of explosion if the lithium battery is replaced by an incorrect type or is not disposed of correctly.) Don’t leave the battery connected to a... -
Page 28: Additional Safety Information
Parts of the phone are magnetic and may attract small objects, so check there are no sharp items, particularly by the earpiece. Do not place credit cards or other magnetic storage media near the phone, because information stored on them may be erased. Binatone Help Line : 0845 345 9677... - Page 29 Emergency calls All mobile phones use radio signals and coverage in all areas cannot be guaranteed, so never rely solely upon your mobile phone for essential communications (e.g. medical emergencies). Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use.
-
Page 30: Technical Data
ADS-3V-06 05218GPG Input: 100-240V AC,50/60Hz, Max 0.3A Output: 5.2V DC, 350mA Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without notice. UK (BTP) Version 17, May. 2010... -
Page 31: Declaration Of Conformity
Declaration of Conformity http://www.binatoneonline.com...
