Friedrich X-Star XQ06 Operating Manual

Friedrich X-Star XQ06 Operating Manual

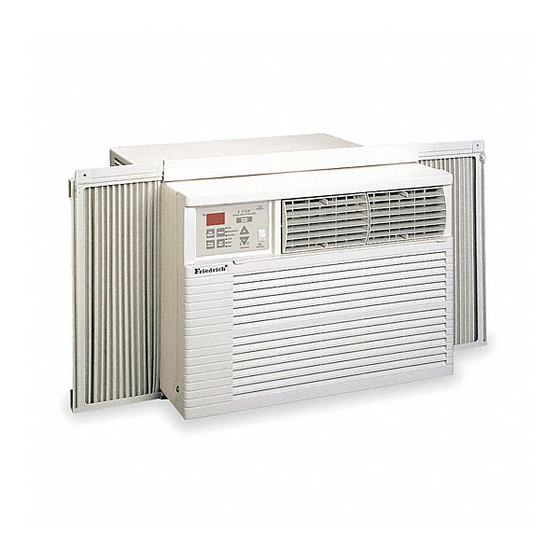

Room air conditioner with remote control
Table of Contents

Advertisement

Available languages

Available languages

Operating Guide

Room Air Conditioner
XQ05 | XQ06 | XQ08 | XQ10 | XQ12
SUPE R HIGH
PM
Powe r
On/O ff
Cool
®
Money Saver
Fan
Mod e
Spee d
Fan Only
Clock
Set
Start
Time r
Hour
On/O ff
Stop
Temp /Hour
920-115-05 (11-04)
with remote control
Exhau st
EFFIC IENC
Y
Vent shut
Please register
your air conditioner
Model information can be found on the
nameplate. It is located on the front of
the unit, on the left side directly below
the controls. If the front is on the unit,
remove the two screws on each end (at
bot tom). Facing the unit, lift the bottom of
the front toward you and slip it off. Please
complete and mail the owner registration
card furnished with this product, or
register on-line at www.friedrich.com
(USA only). For your future con ve nience,
record the model information here.
MODEL NUMBER
SERIAL NUMBER
