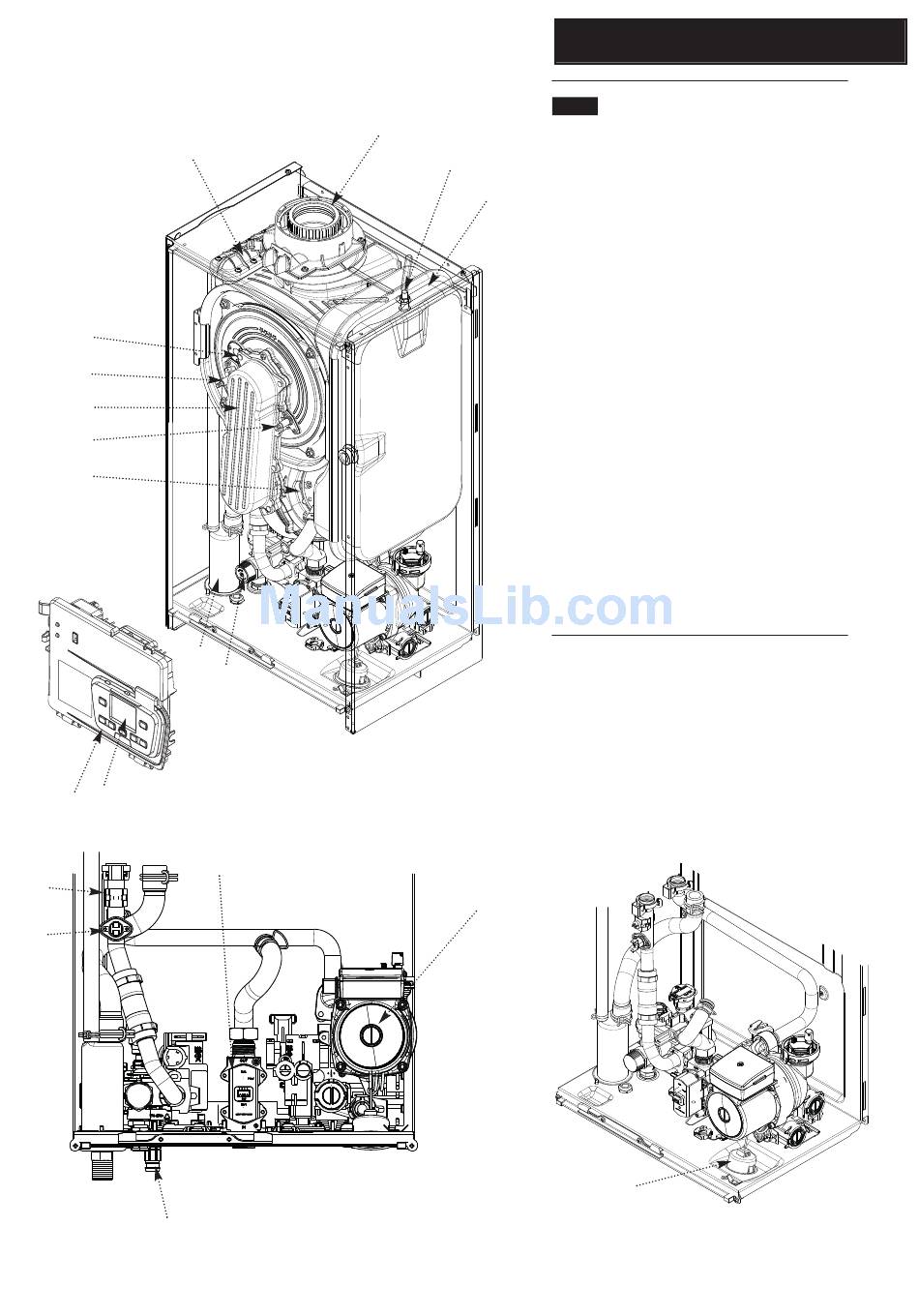

2.0 General Layout

2.1 Layout 12 - 28 Models
1. Expansion Vessel
2
2. Expansion Vessel Locating Stud
1
3. Boiler Adaptor
4. Primary Heat Exchanger
5. Pump with Automatic Air Vent
6. Central Heating System Pressure Gauge
7. Fan Assembly
8. Flame Sensing Electrode
9. Air/Gas Collector
10. Spark Ignition Electrode
11. Combustion Box Cover & Burner
12. Condensate Trap
13. Safety Pressure Relief Valve
14. Boiler Control
15. Gas Valve
16. Boiler Drain Tap
17. Control Box Display
18. Heating Flow Sensor
19. Safety Thermostat
