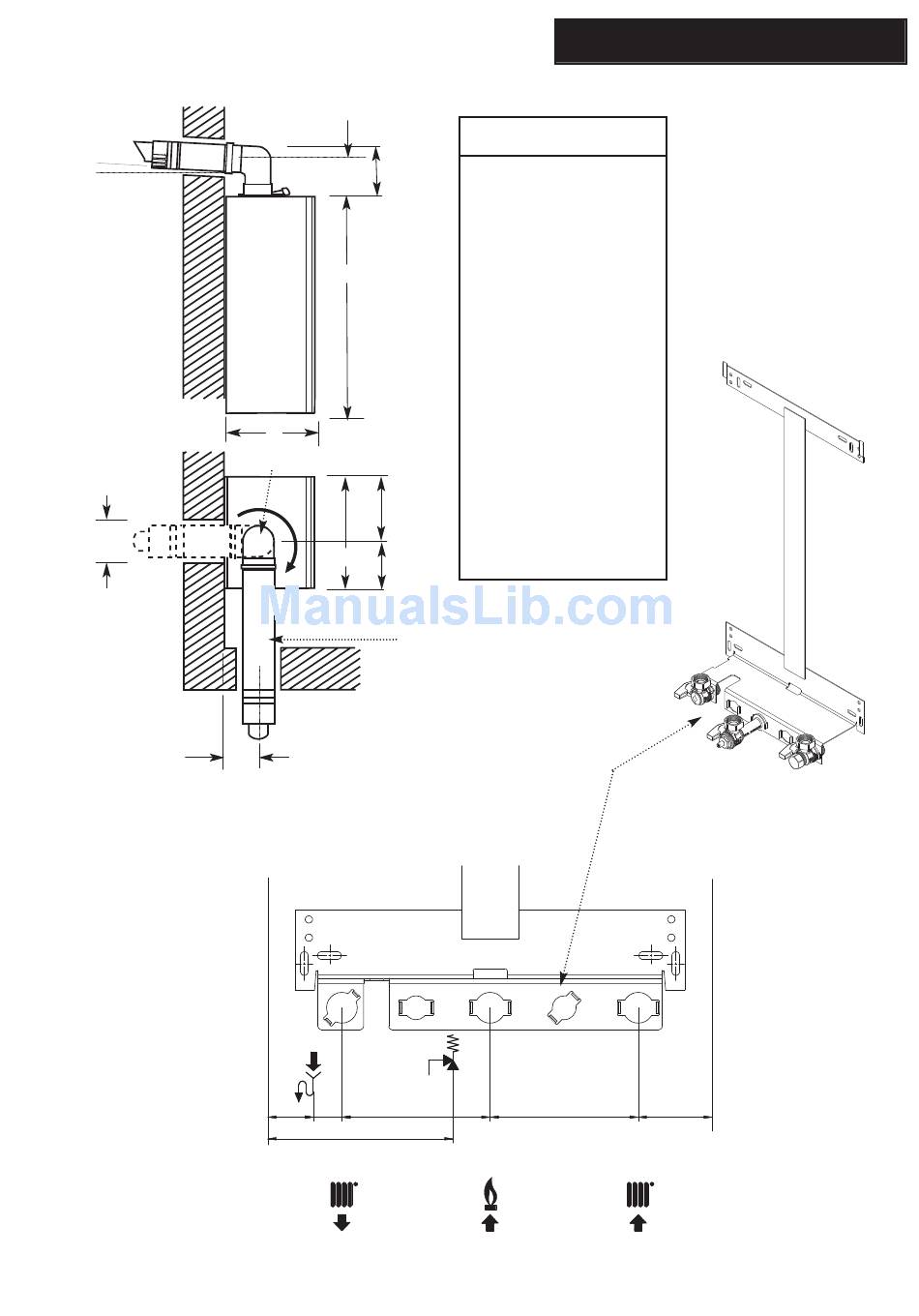

5.0 Dimensions and Fixings
Dimensions
A 700mm
B 300*mm
*This can be reduced to 290mm by
removing the boiler control access flap
C 390mm
D 116mm Ø Min.
E 160mm
(207mm for 80/125mm
flue systems)
F 130mm
G 106mm
H 228mm
J
162mm
Tap Rail
130 mm
Gas
Heating
Inlet
Return
(22mm)
(22mm)
Boiler
Side
65 mm
