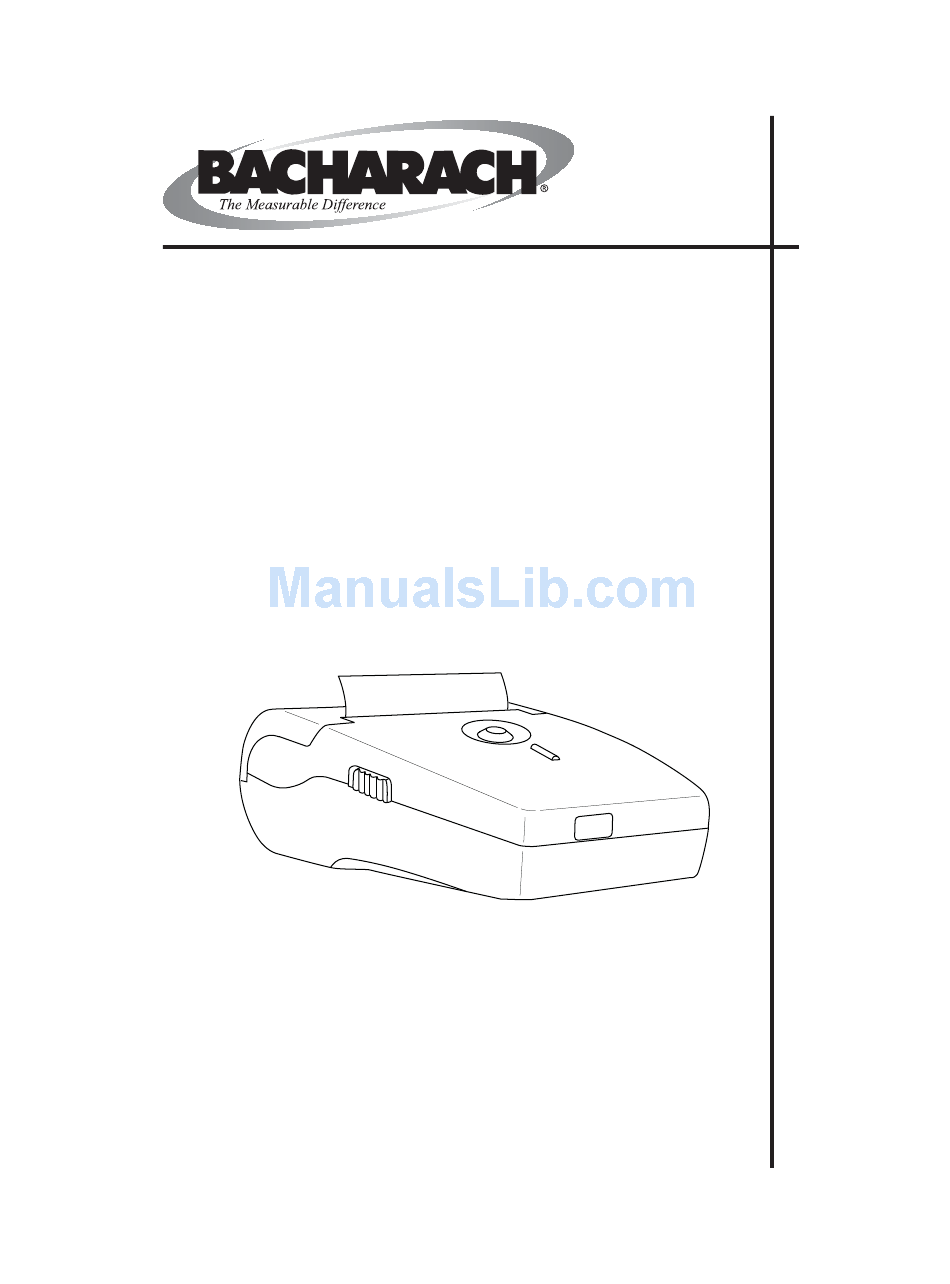

- Page 1 Portable Wireless Infrared Printer (w/ Disposable Batteries) Part No. 24-1400 Instruction 24-9450 Operation & Maintenance Rev. 3 – April 2010 Product Leadership • Training • Service • Reliability...
- Page 2 WARRANTY Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in mater ial and manufac ture and will conform substan tially to Bach arach Inc.’s ap plicable spec i fi ca tions. Bacharach’s li a bil i ty and Buyer’s remedy under this warranty are lim it ed to the repair or replacement, at Ba charach’s option,...
-
Page 3: Table Of Contents
IrDA Printer Contents Contents Description ............1 General . - Page 4 IrDA Printer Notes: Instruction 24-9450...
-
Page 5: Description
Description General Bacharach’s portable wireless printer uses infrared technology to commu- nicate with other Bacharach instruments that are capable of transmitting data using either the Infrared Data Association (IrDA) standard, or HP protocol. The printer is designed around a patented easy-loading paper mechanism, which consists of a main cavity into which a paper roll is dropped for load- ing. -
Page 6: Power Switch
Description IrDA Printer Power Switch The Power switch, located on the left side of the printer, is used to turn the unit ON and OFF. Indicator LEDs • Power LED (Green): Glows steady when the printer is turned ON. • Error LED (Red): Flashes once-per-second when the printer is out of paper;... - Page 7 IrDA Printer Description FEED Button: 1) With printer already ON, press to advance paper. 2) Enter Self-Test Mode by holding down this button Paper and turning ON the Cover printer. 3) With printer already in its Set-Up Mode, press to change value of printer parameter as selected by the SEL button.
-
Page 8: Technical Characteristics
Description IrDA Printer Technical Characteristics Printing Method ....Direct thermal Number of Columns ... . . 32 columns, 384 dots/line Character Size . -
Page 9: Operation
IrDA Printer Operation Operation Precautions To ensure the proper operation of the printer and prevent the possibility of voiding the warranty, be sure to observe the following precautions: • Avoid dirty or dusty locations, or those with excessive heat or humidity •... -
Page 10: Set-Up Mode
Operation IrDA Printer Set-Up Mode The printer has been set up at the factory with the following default parameters: Column : 32 column Baud rate : 9600 bps Handshaking : DTR Country : U.S.A. Print mode : Text (upright) Paper : Normal paper Density : 100%... -
Page 11: Using The Printer
IrDA Printer Operation 4. Press the SEL button to print the next parameter, and then use the FEED button to change that parameter to the desired value. 5. Repeat Step 4 as necessary to change all desired parameters. 6. Once all parameters have been set, press and hold down the SEL button, and then press the FEED button to save the new settings;... -
Page 12: Maintenance
Maintenance IrDA Printer Maintenance Battery Installation Install four ‘AA’ alkaline batteries as follows: Turn OFF printer. 2. Unlatch and remove battery cover from bottom of printer. 3. Remove old batteries and dispose of them properly. 4. Insert four ‘AA’ alkaline batteries, observing the polarity marked inside the battery compartment. - Page 13 IrDA Printer Maintenance Paper Roller Paper-Cover Latch Close Paper Cover so that paper is pinched Paper Cover between the Paper Roller and Print Head Paper Roll Print Head Red LED flashes when paper runs out Battery Cover (bottom of printer) Figure 3.
-
Page 14: Cleaning The Printer
Maintenance IrDA Printer Cleaning the Printer External surfaces of the printer may be kept clean by simply wiping with a damp cloth. Do not use any solvents that may attack the plastic case. Be sure that the inside surfaces are kept dry at all times. Cleaning the Print Head To maintain a good print quality, it is recommended that the print head be cleaned at least once a year or up to once a month if the printer is used... -
Page 15: Parts & Service
Service Centers United States 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 724-334-5051 Fax: 724-334-5723 Email: help@mybacharach.com Canada Bacharach of Canada, Inc. 20 Amber Street Unit #7 Markham, Ontario L3R SP4 Canada Phone: 905-470-8985 Fax: 905-470-8963 Email: bachcan@idirect.com Instruction 24-9450... - Page 16 Headquarters 621 Hunt Valley Circle, New Kensington, PA 15068 Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 800-736-4666 Website: www.mybacharach.com • E-mail: help@mybacharach.com Printed in U.S.A.
