Bacharach Tru Pointe Ultra HD Operation And Maintenance Manual

Ultrasonic leak detector

Advertisement

Quick Links

®
The Measurable Difference
®
Tru Pointe
Ultra HD
Ultrasonic Leak Detector
Instruction 0028-9001
Operation and Maintenance
Rev. 1 - May 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tru Pointe Ultra HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bacharach Tru Pointe Ultra HD

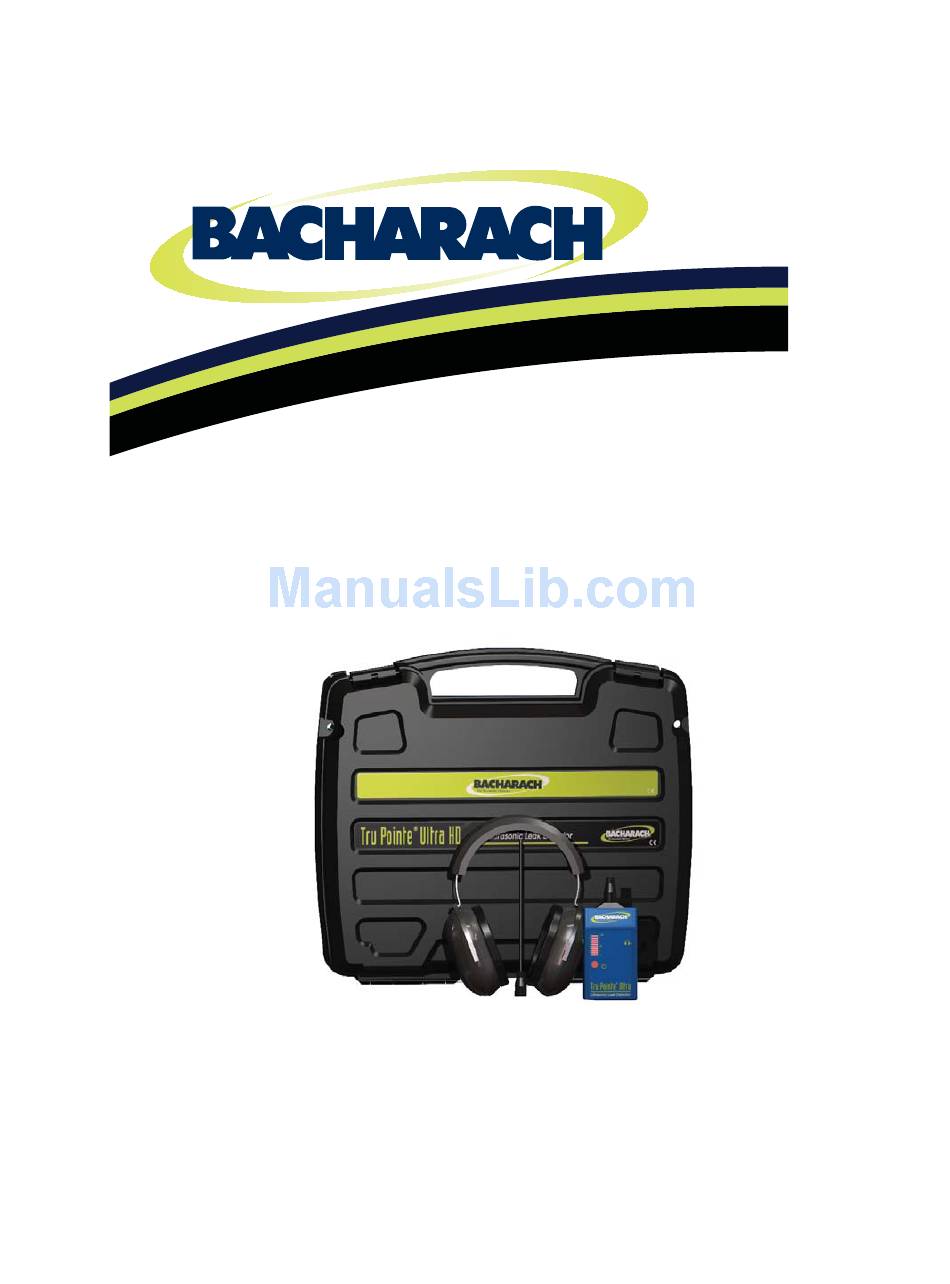

  • Page 1 ® The Measurable Difference ® Tru Pointe Ultra HD Ultrasonic Leak Detector Instruction 0028-9001 Operation and Maintenance Rev. 1 - May 2010...
  • Page 2 If defective, return to the factory for repair and re-calibration. Maximum liability of Bacharach shall be limited to replacement of unsatisfactory product.
  • Page 3: Table Of Contents

    Contents 1 About This Manual ...............1 Warning Statements ............1 Caution Statements ............1 2 Introduction ..................2 General Description............2 What’s in the Kit ..............2 0028-8001 ...............2 0028-8011 ...............2 Features ................2 3 Specifi cations ................3 4 Operation ..................4 Physical ................4 Taking Readings ..............4 General................4 Airborne Leak Detection ..........5 Operating Tips ..............6...
  • Page 4 NOTES...
  • Page 5: About This Manual

    Instruction 0028-9000 1 About This Manual Thank you for investing in a Bacharach Tru Pointe® Ultra HD Ultrasonic Leak Detector. To assure operator safety and the proper use of the Tru Pointe® Ultra HD, please read the contents of this manual, which provides important information on the operation and maintenance of the detector.
  • Page 6: Introduction

    Tru Pointe® Ultra Instruction 0028-9000 2 Introduction General Description The Tru Pointe® Ultra HD Ultrasonic Leak Detector is an electronic instrument that detects the inaudible high frequency sound (ultrasound) of high pressure leaks and converts it to sound a human can hear. Using patented technology, the Tru Pointe® Ultra guides the user to a leak by quantifying the intensity of the ultrasound and converting it to sound the user can easily hear.
  • Page 7: Specifi Cations

    Tru Pointe® Ultra Instruction 0028-9000 3 Specifi cations Physical Dimensions 4.15”L X 2.4”W X .875”D (105 mm X 61 mm X 22.22 mm) Overall Length 5.5” (140 mm) Body Material Body Finish Blue ABS Connector 3.5 mm Stereo Weight 0.3 lb. (138 g) including battery Electrical Sensitivity -80 db/V-μbar...
  • Page 8: Operation

    Tru Pointe® Ultra Instruction 0028-9000 4 Operation Physical To begin using the Tru Pointe ® Ultra HD, fi rst take a moment to become familiar with the unit’s controls in Figure 1 and 2. Figure 1. Figure 2. Taking Readings General Put on the Headphones and plug them into the Headphone Jack on the right side of the detector.
  • Page 9: Airborne Leak Detection

    Tru Pointe® Ultra Instruction 0028-9000 Airborne Leak Detection The Tru Pointe Ultra HD is capable of detecting airborne leaks from up to 40 feet away. When ® an ultrasonic signal generated from a leak is detected, it will be indicated by an increase in the LED meter and a rushing sound will be heard in the headset.
  • Page 10: Operating Tips

    Tru Pointe® Ultra Instruction 0028-9000 Operating Tips If the test area is large, remove the nose cone. Without the nose cone the detec- tion area of the Tru Pointe Ultra increases from 15° to 90°. ® If the leak is in a tight, or inaccessible area, use the supplied Wave Guide to deter- mine the leak location.
  • Page 11: Using The Touch Probe

    Tru Pointe® Ultra Instruction 0028-9000 Using the Touch Probe The patented Touch Probe accessory is a device that converts solid-borne sounds into airborne sound the Tru Pointe Ultra HD can detect. For example, the sound of an internal leak in a water ®...
  • Page 12: Using The Soundblaster

    Tru Pointe® Ultra Instruction 0028-9000 ® Using the SoundBlaster Some Tru Pointe Ultra HD kits include Bacharach’s ultrasonic sound generator, the SoundBlast- ® . The SoundBlaster is used to artifi cially pressurize items and detect potential leaks using a ®...
  • Page 13: Soundblaster ® Applications

    Tru Pointe® Ultra Instruction 0028-9000 ® SoundBlaster Applications The SoundBlaster ® is an excellent tool for weatherizing buildings by detecting leaks in windows, doors and roofs. To effectively use the SoundBlaster and Tru Pointe Ultra HD to check for ® ®...
  • Page 14: Care And Service

    Slide the Battery Door back on the instrument, making sure it is securely attached. Service If you need service, please contact Bacharach Customer Service (800-736-4666 or 724-334- 5000) to obtain an RMA number for service returns. When you receive your RMA number, return the instrument, postage paid and insured to: Bacharach, Inc.
  • Page 15 Tru Pointe® Ultra Instruction 0028-9000 NOTES...
  • Page 16 ® The Measurable Difference Bacharach, Inc. Phone: 724-334-5000 • Toll Free: 800-736-4666• Fax: 724-334-5001 www.mybacharach.com • help@mybacharach.com...
