Azio E233U3 User Manual

External 2.5” usb 3.0 hdd enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
External 2.5" USB 3.0
HDD Enclosure
Model:
Model: E233U3
E233U3
User Manual
En En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E233U3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Azio E233U3

Summary of Contents for Azio E233U3

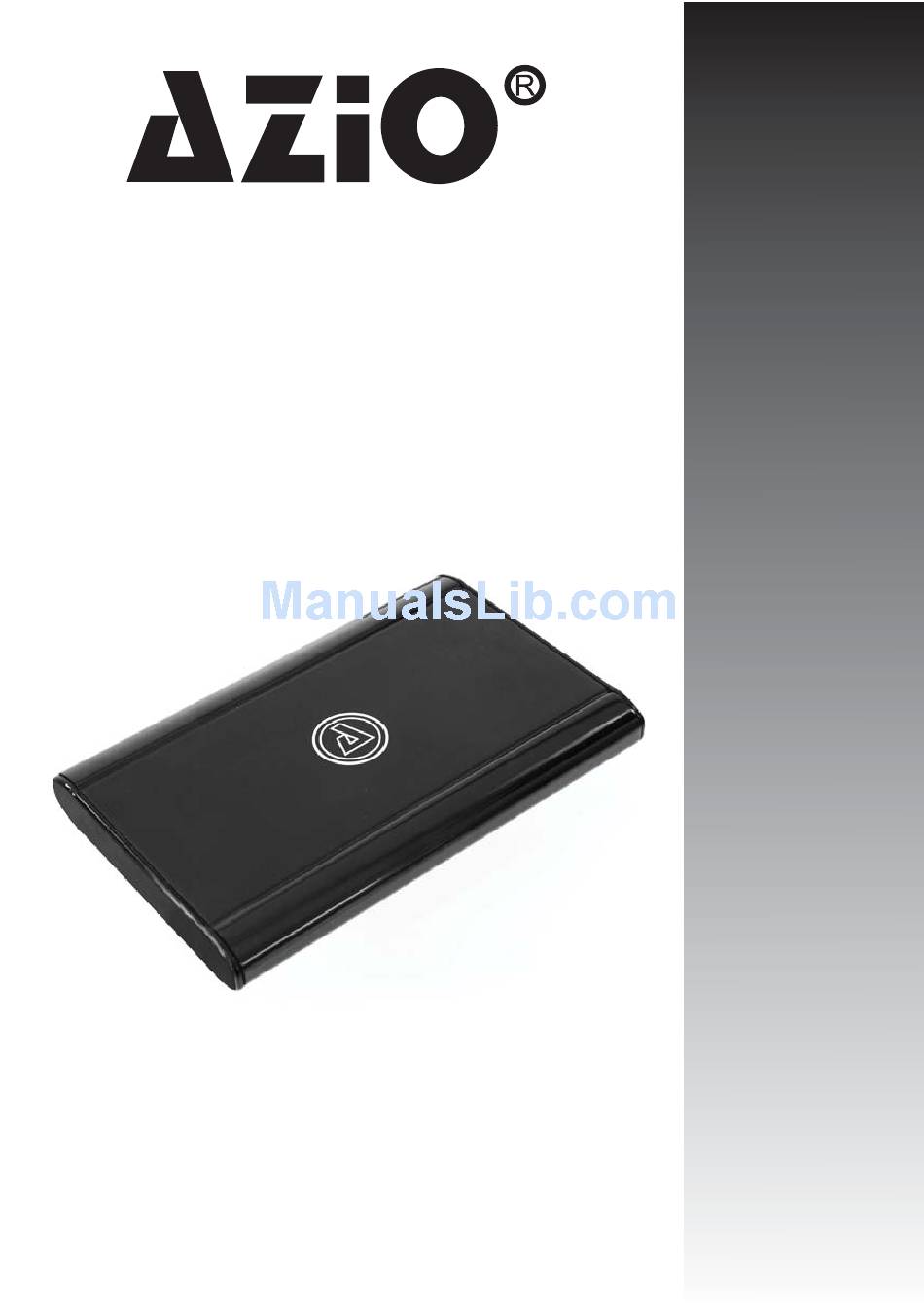

  • Page 1 External 2.5” USB 3.0 HDD Enclosure Model: Model: E233U3 E233U3 User Manual En En...

  • Page 2: Exterior Layout

    Content 1. Package Contents ................2. Hardware and OS Requirements ........3. Exterior Layout ................... 4. Function Description ..............5. Physical Installation ..............A. Taking out the HDD tray..............2 B. HDD installation................2 6. Specifications ..................7. Creating a Partition ................. A.
  • Page 3 1. Package Contents E233U3 USB 3.0 Cable Screwdriver Case User Guide 2. Hardware & OS Requirements Hardware Requirements: Available USB 3.0 or 2.0 port required on your computer. OS Requirements: Windows 2000 / Windows XP* / Vista* / 7*、Mac OS X (*32 &...
  • Page 4 5. Physical Installation Figure 1: Please remove screws Figure 2: Attach interface board from interface cover. to your 2.5” SATA hard drive. Figure 4: Slide case over the Figure 3: Press together securely. hard drive. Figure 5: Slide hard drive until Figure 6: Finish by replacing screws the cover meets the case.
  • Page 5 6. Specifications Model: E233U3 Device Support: 2.5” SATA I/II Hard Drive Internal Interface: SATA External Interface: USB 3.0 Material: Aluminum Case Body Dimension: 0.625 x 5.0 x 3.25 in 15 x 129 x 80 mm Power Supply: Bus Powered Transfer Rate: USB 3.0 - 4.8 Gbps Max...
  • Page 6 B. For Mac Users: 1. Connect the E233U3 device to the computer and power it on. 2. Start Disk Utility. Disk Utility is in the Utilities folder inside the main Applications folder. Or, use Spotlight and do a search for Disk Utility.
  • Page 7 AZiO Corporation warrants this product against defect in material or workmanship for 1 year from the date of purchase. If this product proves to be defective, contact AZiO for repair or replacement. Return units cannot be processed without the proof of original date of purchase.
