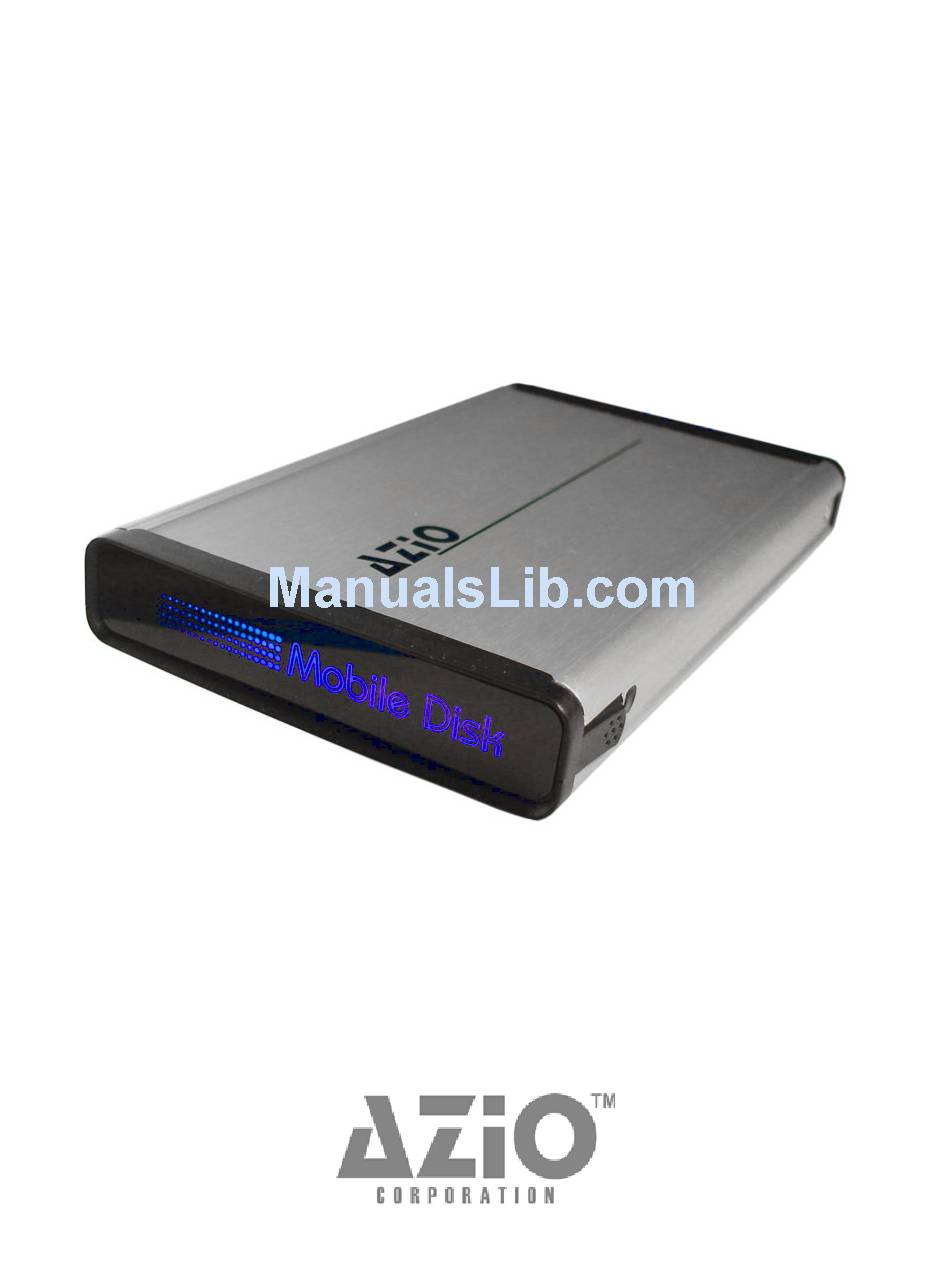

- Page 1 AZiO™ USB 2.0 Mobile HD Kit User’s Guide...
-
Page 2: Table Of Contents
How to safely dismount the Drive ……………………………………………. 18 Frequently Asked Questions …………………………………………………... 19 Troubleshooting ………………………………………………………………….. 20 Troubleshooting for PC users ………………..………………………………………………... 20 Troubleshooting for Mac users …………………………………………………………...…… 21 Warranty ……………………………………………………………………………. 23 Contact Information …………………………………………………………….. 24 Notices ………………………………………………………………………………. 25 Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 3: Overview
Overview Thank you for purchasing the AZiO USB 2.0 Mobile HD Kit, one of the most stylish and practical data storage solutions available. This HD Kit can convert your internal 2.5” hard disk drive into a hi-speed external storage device. Use it to store your collection of documents, photos, media files, and/or backup a copy of all your important data. -
Page 4: Precautions
• If using your AZiO product as a general-purpose storage device (as opposed to a backup device) AZiO strongly recommends that you backup the files stored on the device. AZiO will not be responsible for loss of data or corruption; nor will AZiO perform recovery of lost data or files. -
Page 5: Package Contents
4) Quick-Start Guide 5) Mail-In Registration Card 7) USB 2.0 Cable (Mini-B to A) *If you are missing any item listed above, please contact Customer Service at support@aziocorp.com, or call (909) 468-1198. Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 6: System Requirements For Pc
• In order to use the USB 2.0 connection you must install the USB 2.0 driver included on the supplied CD. (See “Mounting a USB-Connected Drive” for instructions). Copyright © 2006 by AZiO Corp. – www.aziocorp.com and click on the Windows Update www.microsoft.com and click on the www.microsoft.com... -
Page 7: System Requirements For Mac
USB 1.1 Compatibility: This device is backward compatible with USB 1.1. However, if you connect this device to a USB 1.1 port, it will operate at USB 1.1 speeds (up to 12 Mbps). Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 8: Technical Specifications
Length x Width x Height (mm) ………………………………………. 137 x 84 x 18 Weight …………………………………………………………………………………………... 0.8 lbs Interface Transfer Rate (max. Mbps) USB 1.1 ……………………………………………………………………………………..… 12 USB 2.0 .…………………………………………………………………………………….. 480 Chassis (approved/recognized) …………………………………………………..… FCC/CE/UL Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 9: Installing A 2.5" Hard Drive
Warning: When handling the opened kit, never touch the PCB (printed circuit board). It contains sensitive electronics that can be easily damaged. Copyright © 2006 by AZiO Corp. – www.aziocorp.com... - Page 10 Orient your 2.5” hard drive so that the drives connectors are aligned with the interface connector. Install the hard drive by firmly pushing in the hard drive until it is securely connected to the PCB. Copyright © 2006 by AZiO Corp. – www.aziocorp.com...
- Page 11 With a small Philips screw driver, screw the drive to the carrier using the supplied screws. Make sure all screws are secure and the drive is firmly mounted on the carrier. Copyright © 2006 by AZiO Corp. – www.aziocorp.com...
- Page 12 Close the drive kit by carefully sliding the drive carrier back into the Drive Enclosure, making sure the release latches securely locks the carrier in place. Your external drive is not ready for use. Copyright © 2006 by AZiO Corp. – www.aziocorp.com...
-
Page 13: Setting Up The Drive
Click Finish and then eject the CD. You should now see a new icon (a gray box with a green arrow) next to the time display on your system tray. Copyright © 2006 by AZiO Corp. – www.aziocorp.com and click on Windows Update link. -
Page 14: Naming Your Drive
2. In the My Computer window click on the Drive icon. 3. In the File menu, select Properties. 4. Under the General tab of the Properties window, type a name in the text field beside the Drive icon. Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 15: Partitioning/Formatting The Drive
2. Click on Disk Management. A list of all the drives in your system will be displayed. 3. If the Write Signature and Upgrade Disk Wizard auto-starts, you can use this wizard to initialize the hard disk and create partition/format the drive. Copyright © 2006 by AZiO Corp. – www.aziocorp.com for details. -
Page 16: Partitioning/Formatting In Windows Me Or 98Se
9. Under Format type, select Full. Everything else should be left at the default setting. In the label fiend under Other options you may assign a name to the Drive. Click Start. Once the process is complete, the Drive will be ready for use. Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 17: Formatting In Mac Os X
1. Insert the System Software CD into you CD drive. 2. With your AZiO External Drive connected and powered on, restart the computer and hold down the C key while the computer is starting up. 3. You will see an alert message: “This disk is unreadable by this computer. -
Page 18: How To Safely Dismount The Drive
When you dismount a device, the communications link is severed and the computer can no longer access it. PC Users 1. Make sure your computer is no longer accessing the AZiO External Drive. 2. In the system tray at the bottom of your screen, click the Safely Remove icon. -
Page 19: Frequently Asked Questions
Drive using the NTFS file system. If you plan to use your drive on a Mac OS only, consider reformatting the Drive using the Mac OS Extended file system. Q: Does the AZiO External Drive work on Windows XP Media Center Edition? A: No. It is not supported at this time. -
Page 20: Troubleshooting
1. Make sure you have followed all of the instructions in this guide. 2. Consult the Troubleshooting sections of this guide. 3. If the issue you are having is still not resolved, contact AZiO Customer Care by one of the following options: a) via LiveChat at our website’s support page,... -
Page 21: Troubleshooting For Mac Users
USB hub or some non-powered PCMCIA USB CardBus. Q: My computer does not recognize the Drive. A. First, make sure all the connections are secure. Second, check if your AZiO Drive is listed in the Apple System Profiler. If the driver listed is “USB Authoring Support”... - Page 22 A: If this message appears, you have no choice but to re-initialize (reformat) the AZiO Drive in order to use it on Mac OS X. You will need to copy the data stored on your Drive to another storage device before upgrading to Mac OS X. After the upgrade is complete, re-initialize the Drive on Mac OS X, and then copy the data back to it.
-
Page 23: Warranty
The warranty does not cover any damage caused by negligence, abuse, or non-authorized modifications. To the maximum extent permitted by applicable law, in no event shall AZiO Corporation, its affiliates, or its dealers be liable for any special, incidental, indirect or consequential damages whatsoever regardless of cause or form of action. -
Page 24: Contact Information
Contact Information Address: 19925 Harrison Ave. Walnut, CA 91789 Telephone: (909) 468-1198 Fax: (909) 839-2629 Website: www.aziocorp.com Customer Service: support@aziocorp.com Technical Support: support@aziocorp.com Pre-Sale Questions: sales@aziocorp.com Copyright © 2006 by AZiO Corp. – www.aziocorp.com... -
Page 25: Notices
AZiO assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. AZiO reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes. - Page 26 Copyright © 2006 by AZiO Corp. – www.aziocorp.com...
