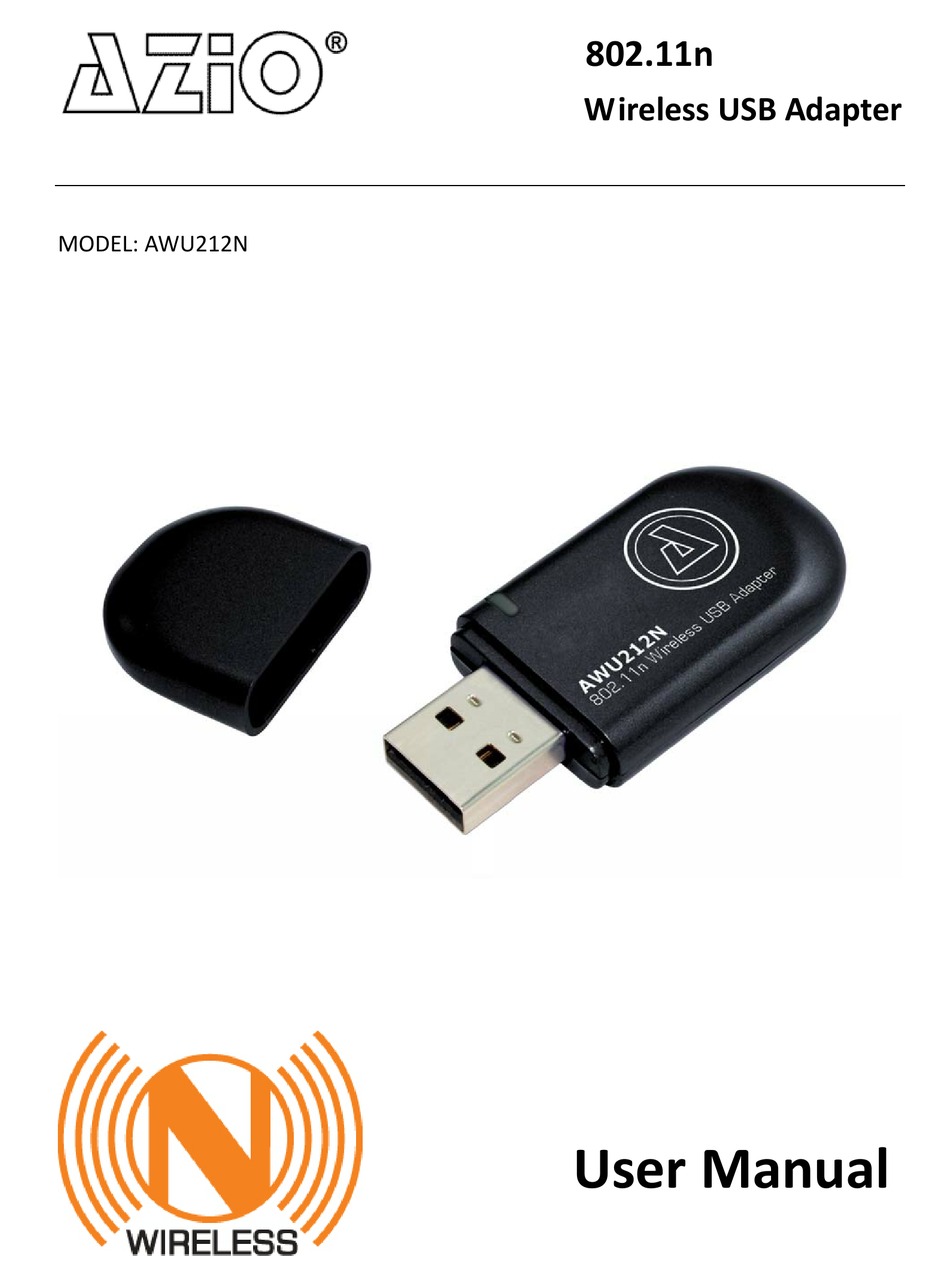

- Page 1 802.11n Wireless USB Adapter MODEL: AWU212N User Manual ...
- Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to AZiO Corporation. Without the permission of AZiO Corporation, any individual or party is not allowed to copy, plagiarize, imitate or translate into other languages.
-
Page 3: Table Of Contents
802.11n Wireless USB Adapter Table of Content Chapter 1 Introduction…………………...……………………………………2 1.1 Welcome………………………..……..……….…………………………2 1.2 Product Feature………………………………… … ……………………………2 1.3 Content of Package………..…….……… … ………….……………………2 1.4 Before You Begin…...……….……… … ………….……………………3 Chapter 2 Installation…………………………..……………………………………4 2.1 Software Installation…………...……..……….…………………………4 2.2 Hardware Installation………………………… … …………………………6 Chapter 3 Configuration………………………………………………………..……7 3.1 General…….………………………………………………... -
Page 4: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Welcome Thank you for purchasing the AZiO AWU212N 802.11n wireless USB adapter. The AWU212N adapter connects you with IEEE802.11n networks at receiving rates of up to 300Mbps. By using reflection signals, 802.11n's “Multiple In, Multiple Out”... -
Page 5: Chapter 2 Installation
802.11n Wireless USB Adapter Chapter 2 Installation 2.1 Software Installation NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures are similar for other windows operating systems. Insert Installation CD to your CD-ROM drive. Browse the CD and double-click setup.exe in Driver folder to execute it. - Page 6 802.11n Wireless USB Adapter During the installation, the following dialogue may appear. Click Continue Anyway to continue. Click Finish to complete the software installation. Now your computer will restart automatically.
-
Page 7: Hardware Installation
Power on your PC. Let the operating system boot up completely and log in as necessary. Insert AWU212N into a USB slot of your computer. Select install the software automatically (Recommended) when Found New Hardware window appears. The software and hardware installation for AWU212N is now complete. -
Page 8: Chapter 3 Configuration
802.11n Wireless USB Adapter Chapter 3 Configuration There are two ways to run REALTEK 11n USB Wireless LAN Utility as follows: 1. Click Start → Programs → REALTEK 11n USB Wireless LAN Utility → REALTEK 11n USB Wireless LAN Utility to run the utility. Or… 2. -
Page 9: Add/Edit
802.11n Wireless USB Adapter 3.2.1 Add/Edit Profile Name: Specify a name for the profile SSID: Name of intended wireless network. Network Type: Infrastructure: A wireless Router and/or Access Point is required. Ad-hoc: Peer-to-Peer network, no base station required. ... -
Page 10: Remove
802.11n Wireless USB Adapter 3.2.2 Remove Select a profile and click Remove button to delete. 3.2.3 Duplicate Select a profile which you want to copy and then click Duplicate. Input the new profile name when Profile Name window appears. -
Page 11: Set Default
802.11n Wireless USB Adapter 3.2.4 Set Default Select a profile and click the Set Default button to make it the default profile for automatic connection. 3.3 Available Network Under Available Network tab, the information from all surrounding wireless networks from the last scan will be displayed. Click Refresh to update and refresh. -
Page 12: Status
802.11n Wireless USB Adapter Double-click the network you want to connect. Modify the profile information as needed. 3.4 Status The Status tab displays the detailed information of the current connection. -
Page 13: Statistics
802.11n Wireless USB Adapter 3.5 Statistics The Statistics tab displays the detail counter information based on 802.11 MIB counters. This page translates that MIB counters into a format easier for user to understand. Reset: to renew the statistics. 3.6 Wi-Fi Protected Setup Wi-Fi Protected Setup tab supports the configuration setup using PIN configuration method or PBC configuration method. -
Page 14: Pin Input Config (Pin)
802.11n Wireless USB Adapter 3.6.1 Pin Input Config (PIN) Input AWU212N’s PIN Code into AP and click Start PIN on the AP-Router WPS config page Note: AP operating page may vary but similar from different brands Click Pin Input Config (PIN) - Page 15 802.11n Wireless USB Adapter Wait until PIN method window appears, the secure connection between AP and AWU212N will be established automatically.
-
Page 16: Push Button Config (Pbc)
802.11n Wireless USB Adapter 3.6.2 Push Button Config (PBC) Click Push Button Config (PBC) under AWU212N Wi-Fi Protected Setup tab. Click Start PBC on the AP-Router WPS config page or push the WPS button on your Note: AP operating page may... -
Page 17: Chapter 4 Product Specifications
