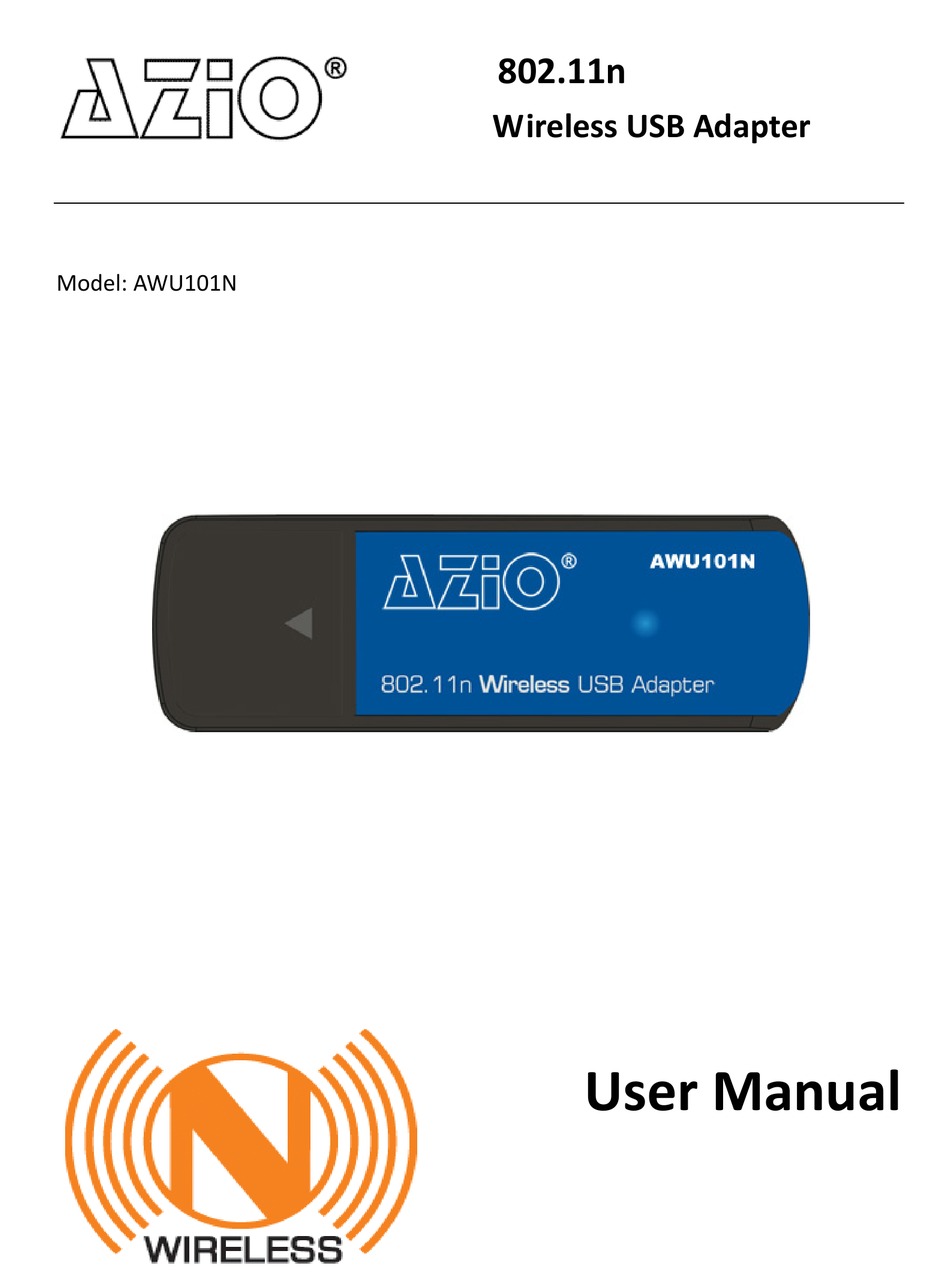

- Page 1 802.11n Wireless USB Adapter Model: AWU101N User Manual ...
- Page 2 AZiO Corporation. Without the permission of AZiO Corporation, any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages. All the photos and product specifications mentioned in this manual are for references only. As the upgrade of software and hardware progresses, there will be changes. And if there are changes, AZiO is not responsible for informing in advance. If you would like to know more about our product information, please visit our website at www.aziocorp.com. ...
-
Page 3: Table Of Contents
Table of Content Chapter 1. Introduction……………………………………………………………2 1.1 Welcome…………………………………………….…………………………2 1.2 Product Feature………………………………… … ……………………………2 1.3 Package Contents……………….……… … ………….……………………2 Chapter 2. Installation…………………………………………………………………3 Chapter 3. Configuration………………………………………………………..……6 3.1 Station Mode…….……………………………………………… … ……..……6 3.1.1 Link Status…….…………………………………………… … ……..……7 3.1.2 Site Survey...………………………………………………… … …………7 3.1.3 Profile………………………………………………………………..…...8 3.1.3.1 Add/Edit Profile…………………………………………..……9 3.1.4 Statistics……………..……….…………………………………………10 3.1.5 WPS Setting………………..………………..………………11... -
Page 4: Chapter 1 Introduction
Multiple Out” (MIMO) technology increases range and reduces “dead spots” in the wireless coverage area. The Soft AP supported by AWU101N can help you establish wireless LAN networking at the lowest cost. WPS, Wi-Fi Protected Setup, simplifies security setup and management of Wi-Fi networks. This adapter supports WMM for Multimedia Applications with Quality of Service in Wi-Fi®... -
Page 5: Chapter 2 Installation
NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures will be similar for other windows operating systems. 1. Insert AWU101N into a USB slot of your computer. 2. Select Cancel when “Found New Hardware” window appears. - Page 6 4. Click Next to start installation. 5. Click Change… to select the path, or click Next to continue.
- Page 7 6. During the installation, the following dialogue may appear. Click Continue Anyway to continue. 7. Click Finish to complete the software installation. You will see a tray icon appear in your system tray at the bottom of the screen after the software and hardware installation is completed successfully.
-
Page 8: Chapter 3 Configuration
Chapter 3 Configuration Double-click the tray icon to launch the configuration utility. 3.1 Station Mode Station Mode is the default access mode for AWU101N. In this mode, AWU101N serves as a client to receive wireless signals to access the Internet. -
Page 9: Link Status
3.1.1 Status Status tab shows detail information about the current connection. 3.1.2 Site Survey The Site Survey tab provides information of all surrounding wireless networks from the last scan. Click Refresh to update and refresh. -
Page 10: Profile
3.1.3 Profile Profile can keep your favorite wireless settings among your home, office, and other public hotspot. You can save multiple profiles and activate the choice of your preference. Connect: to make an existing profile active and establish connection New: to create a new profile ... -
Page 11: Add/Edit Profile
3.1.3.1 Add/Edit Profile a. Site Status b. Security Setting... -
Page 12: Statistics
3.1.4 Statistics The Statistics tab displays the detail counter information based on 802.11 MIB counters. This page translates that MIB counters into a format easier for users to understand. Clear: to renew the statistics. ... -
Page 13: Wps Setting
PBC configuration method. WPS (Wi-Fi Protected Setup) simplifies the security setup and management of Wi-Fi networks. PIN: Enter the Pin code and click PIN to automatically connect AWU101N with wireless devices in the area. PBC: Click PBC to complete auto-check and connections between AWU101N ... -
Page 14: Ap Mode
3.2 AP Mode The device also can serve as an access point to transmit wireless signals and create wireless network, allowing other wireless clients to access the network. 3.2.1 Basic Setting Basic Setting tab configure the AP’s basic parameters, including SSID, Wireless Mode and Channel. -
Page 15: Security Setting
3.2.2 Security Setting Use Security Setting tab to setup different security configurations of wireless communication and select the authentication or encryption type. Note: 1. Hex characters include numbers 0~9 and letters a~f. 2. ASCII characters include any numbers/letters and characters. -
Page 16: Access Control
Choose Access Control tab to start MAC filter control. Access Control includes All Permitted and All Blocked. After editing the MAC address access list, only the MAC in the Allow All list will be able to access AWU101N. 3.2.4 About... -
Page 17: Chapter 4 How To Connect With Psp
Chapter 4 How to connect with PSP 4.1 Configure PSP with Ad-Hoc mode a. Select Network Settings on PSP b. Select Ad-Hoc mode on PSP c. Select Channel on PSP... - Page 18 Scan PSP in AWU101N Utility Interface and click Connect to connect the wireless network. e. In Site Survey check enable PSP connection mode checkbox.
-
Page 19: Configure Xlink Kai
4.2 Configure XLink Kai After installing, select Start All programs XLink Kai Evolution VII → → → Start Kai Config to configure the user name, password and other parameters. Login XLink Kai Select Start All programs XLink Kai Evolution VII → Start Kai. PSP will →... -
Page 20: Chapter 5 Product Specifications
Chapter 5 Product Specifications Specifications: IEEE 802.11n(Draft 2.0), IEEE 802.11g, Standards IEEE 802.11b Interface USB 2.0 Windows 2000/ XP/ Vista/ 7 Frequency Range 2.412GHz~2.484GHz Maximum Output 18dbm Power Input Voltage Range (VAC) Output Voltage 1.5V/3.3V Range(VDC) Max. Consumption 0.6W Antenna type Printed antenna 11 Channels (USA, Canada) Channels:... - Page 21 Otherwise, please contact our dedicated customer care team. There are several ways to contact us: By Phone: (909) 468‐1198 By eMail: support@aziocorp.com On LiveChat: www.aziocorp.com Warranty Limited 1 Year Warranty AZiO Corporation warrants this product against defect in material or workmanship for 1 year from the date of purchase. If this product proves to be defective, contact AZiO Corporation’s customer care for repair or replacement of your unit. Return requests cannot be process without the proof of original date of purchase. This warranty applies only to the original purchase of the product and is not transferable. This warranty does not cover any incompatibilities due to the user’s computer, hardware, software or related system configuration in which the product interfaces. The warranty does not cover any damage caused by negligence, abuse, or non‐authorized modifications. To the maximum extent permitted by applicable law, in no event shall AZiO Corporation, its affiliates, or its dealers be liable for any special, incidental, indirect or consequential damages whatsoever regardless of cause or form of action. ...
