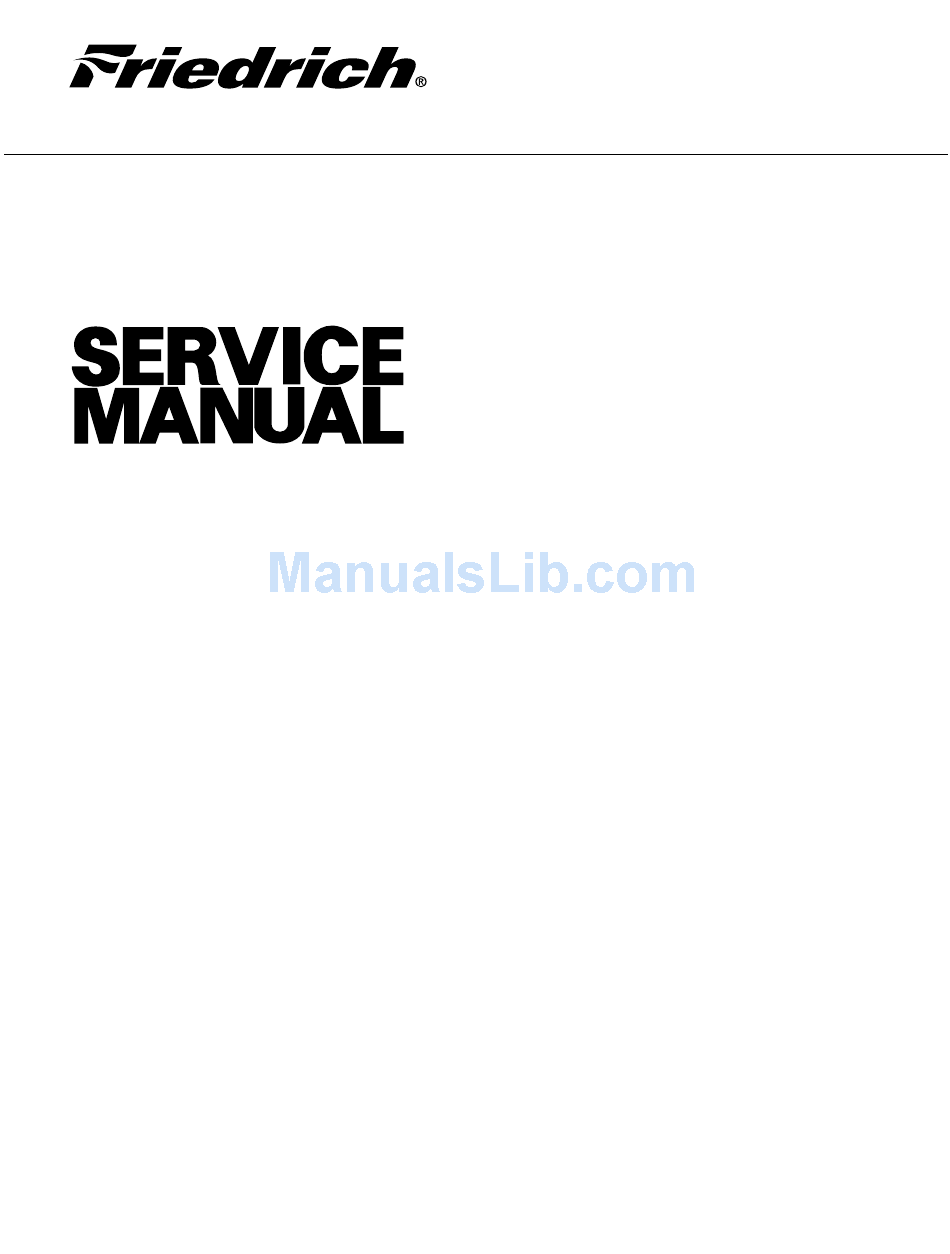

M30CF.M36CF Service parts manual
SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED

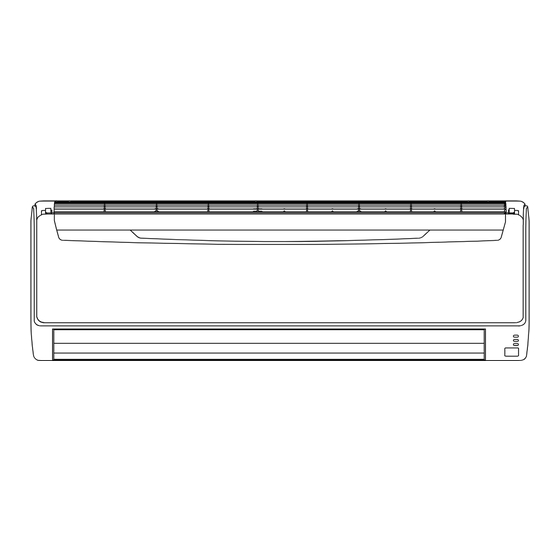

Indoor unit
Outdoor unit
MW30C3F
MR30C3F
MW36C3F
MR36C3F
C O N TE NT S
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
type
1
2
. . . . 4
5
6
. . . . . .
9
. . . .
13
14
18
22
. . . . . . . . . .
Advertisement
Table of Contents
Related Manuals for Friedrich M30CF
Summary of Contents for Friedrich M30CF
-
Page 1: Table Of Contents
M30CF.M36CF Service parts manual SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED Indoor unit Outdoor unit MW30C3F MR30C3F MW36C3F MR36C3F C O N TE NT S .... -
Page 2: Specifications
SPECIFICATIONS ELECTRICAL DATA INDOOR UNIT MW30C3F OUTDOOR UNIT MR30C3F COOLING CAPACITY 30,700 BTU/hr POWER SOURCE 208 V / 230 V FREQUENCY RUNNING CURRENT INPUT WATTS 3,460 W SEER MOISTURE REMOVAL 9.7 Pts/hr (4.6 L/hr) AIR CIRCULATION HIGH 647 cfm (1,100 m MAXIMUM CURRENT FAN MOTOR POWER SOURCE... - Page 3 OUTLI N E A N D D I M E N S I O N S INDOOR UNIT Unit : inch (mm) 12-5/8" (320) 39-1/4" (998) 9" (228) 2008.01.09...
- Page 4 OUTDOOR UNIT Unit : inch (mm) 2008.01.09 3"(77) 35-1/2" (900) 25-5/8" (650) Air Flo w 1-1/4" (31) 13" (330) 1/2" (12) 15-3/4" (400) 5-3/4" (147) 6-3/4" (170)
-
Page 5: Refrigerant System Diagram
REF RI G E RA NT S Y S T E M D I A GR A M Muffler Pressure switch Compressor Sub-accumulator Refrigerant direction Refrigerant pipe diameter Liquid : 3/8" (9.52 mm) Gas : 5/8" (15.88 mm) 2008.01.09 Heat exchanger (indoor unit) 3-Way valve (Large) -
Page 6: Circuit Diagram
YELLOW WHITE ORANGE WHITE BROWN BLACK WHITE WHITE BLACK GRAY PURPLE BLUE GREEN YELLOW ORANGE BROWN BROWN ASSY CONTROLLER ASSY INDICATOR BLACK WHITE BLACK GRAY WHITE WHITE... -
Page 7: Indoor Pcb Circuit Diagram
INDOOR PCB CIRCUIT DIAGRAM CONTROL UNIT MW30C3F : EZ-005DWSE MW36C3F : EZ-0055WSE TERMINAL BOARD OUTDOOR SERIAL UNIT EARTH CN6-1 CN6-1 WHITE REMOTE CONTROL CN6-1 BLACK CN2-1 CN2-2 ORANGE CN2-3 YELLOW CN2-4 PINK CN2-5 BLUE LOUVER ( RIGHT / LEFT ) CN5-1 CN5-2 ORANGE... - Page 9 INDOOR UNIT INDICATOR PCB ASSEMBLY K05CY-0500HSE-D0 2008.01.08 D201 SLR-325VC D202 SLR-325MC GREEN C201 ORANGE <F> D203 SLR-325DC I C201 R201 GP1UM261RKVF <1/4W> + C202 CN201 07 JB20 / PAP 1061 L=230...
-
Page 10: Outdoor Pcb Circuit Diagram
BROWN AWG24 UL1007 AWG24 UL1007 WHITE AWG24 UL1007 BLACK AWG24 UL1007 AWG24 UL1007 GRAY AWG24 UL1007 PURPLE BLUE AWG24 UL1007 GREEN AWG24 UL1007 YELLOW AWG24 UL1007 ORANGE AWG24 UL1007 AWG24 UL1007 BROWN AWG24 UL1007 WHITE AWG20 UL1015 BLACK AWG20 UL1015 1015 AWG24 UL1007... - Page 11 R901 R902 R903 <1/10W> R802...
- Page 13 OUTDOOR UNIT POWER SUPPLY PCB ASSEMBLY K05CW-0503HUE-FL0 VA100, VA101 470V <TNR> BLACK C100 POWER SOURCE <LE> WHITE RCH3818 - 022PF07 SA100 RA - 302M F100 FSL 250 3.15 (EM) BLACK INDOOR UNIT WHITE EARTH GREEN AC VOLT OUT BLACK WHITE OUTDOOR UNIT CONDENSOR PCB ASSEMBLY K05FB-0500HUE-P0...
-
Page 15: Pa Rts Indoor Unit
PA RTS INDOOR UNIT 2008.01.09 Ref. Description Part Number Front Panel Total Assy 67201500 Intake Grille Assy 67201501 Air Filter 67201502 Clamper (Grille) 67200936 Receiver Window 67201503... - Page 16 Ref. Description Crossflow Fan Assy Bearing C Assy Evaporator Assy C Evaporator Assy A Evaporator Assy B Connection Pipe Assy Distributor Assy Water Seal Evaporator Holder R Evaporator Holder L Rear Bracket Filter Guide Filter Guard 2008.01.09 Part Number 67201504 67200922 67201550 67201508...
- Page 17 INDOOR UNIT Casing a ssy 2008.01.09 Ref. Description Part Number Casing Assy 67201505 Casing Cover B 67201556 Casing Cover R 67201557 Casing Cover L 67201558 Casing Cover F 67201559 Drain Hos Assy 67201560 Bush B 67201561 Diffuser U 67201562 Diffuser Z 67201563 Spring C 67201564...
- Page 18 INDOOR UNIT 2008.01.09 Ref. Description Controller PCB Assy (30) Controller PCB Assy (36) Control Box Control Cover Case (Motor) Terminal (Earth) Fan Motor (30) Fan Motor (36) Motor, Step Motor, Step Motor, Step Gear A Terminal Indicator PCB Assy Pipe Thermistor Room Thermistor Part Number 67201573...
-
Page 19: Parts (Outdoor Unit)
OUTDOOR UNIT 2008.01.09 Ref. Description Top Panel Sub Assy Front Panel Fan Guard Grip Side Service Panel Sub Assy Right Panel Emblem Rear Part Number 67201600 67201601 67201602 67201920 67201604 67201921 67201606... - Page 20 OUTDOOR UNIT 2008.01.09 Ref. Description Propeller Fan Assy Fan Motor Condenser A Assy Serparate Wall Base Assy Part Number 67201607 67201610 67201609 67201922 67201923...
- Page 21 OUTDOOR UNIT 2008.01.09 Ref. Description Strainer Assy 3-Way Valve Assy 3-Way Valve Assy Check Joint Assy Compressor Assy Accumulator 4-Way Valve Solenoid Pressure Switch Inlet Pipe (Cond) A Assy Accumulator Support Assy Outlet Pipe (Cond) A Assy Expansion Valve Assy Expansion Valve Coil Part Number 67201611...
- Page 22 OUTDOOR UNIT Ref. Description Case (PCB) Assy Case (Inverter) ACTPM Thermistor Contoller PCB Assy (30) Controller PCB Assy (36) Power Supply PCB Assy (K05CW-0503HUE-FLO) Capacitor PCB Assy (K05FB-0500HUE-P0) TR PCB Assy (IPM) Choke Coil Terminal Discharge Thermistor Thermistor (Outdoor Temp) Compressor Thermistor Heat Exchanger Thermistor 2008.01.09...
-
Page 23: Standard Accessories
ST A N DA RD A CC E S S ORIE S Wall hook bracket Remote control Remote control holder 2008.01.15 Name and Shape Part number 67201531 67201532 67201533... - Page 24 M30CF.M36CF Service parts manual...
