PYLE Audio PYM18128 Test Instructions

Part Number
Comments
Re
Le
QM
QE
QT
Xmax
Pmax
Bl
Coil Diameter
Gap Height
Efficiency
*Please note : Customer assumes responsibility for power testing each design per application. Eminence Speaker LLC does not power test samples. The ratings above
are a general guideline based upon known thermal capacity of voice coil diameters/materials. True power handling depends on many driver and system factors, thus
our guidelines are conservative in nature.
Library 072704A.lib
Parameter Date 8/2/2004 3:13:02 PM
PYM1812L8BLK
0431E PRODUCTION RUN
5.39 Ohms
0.99 mH
8.94
0.34
0.33
4.76 mm
450 Watts
17.55 Tm
4.00 Inches
0.375 Inches
2.50 %

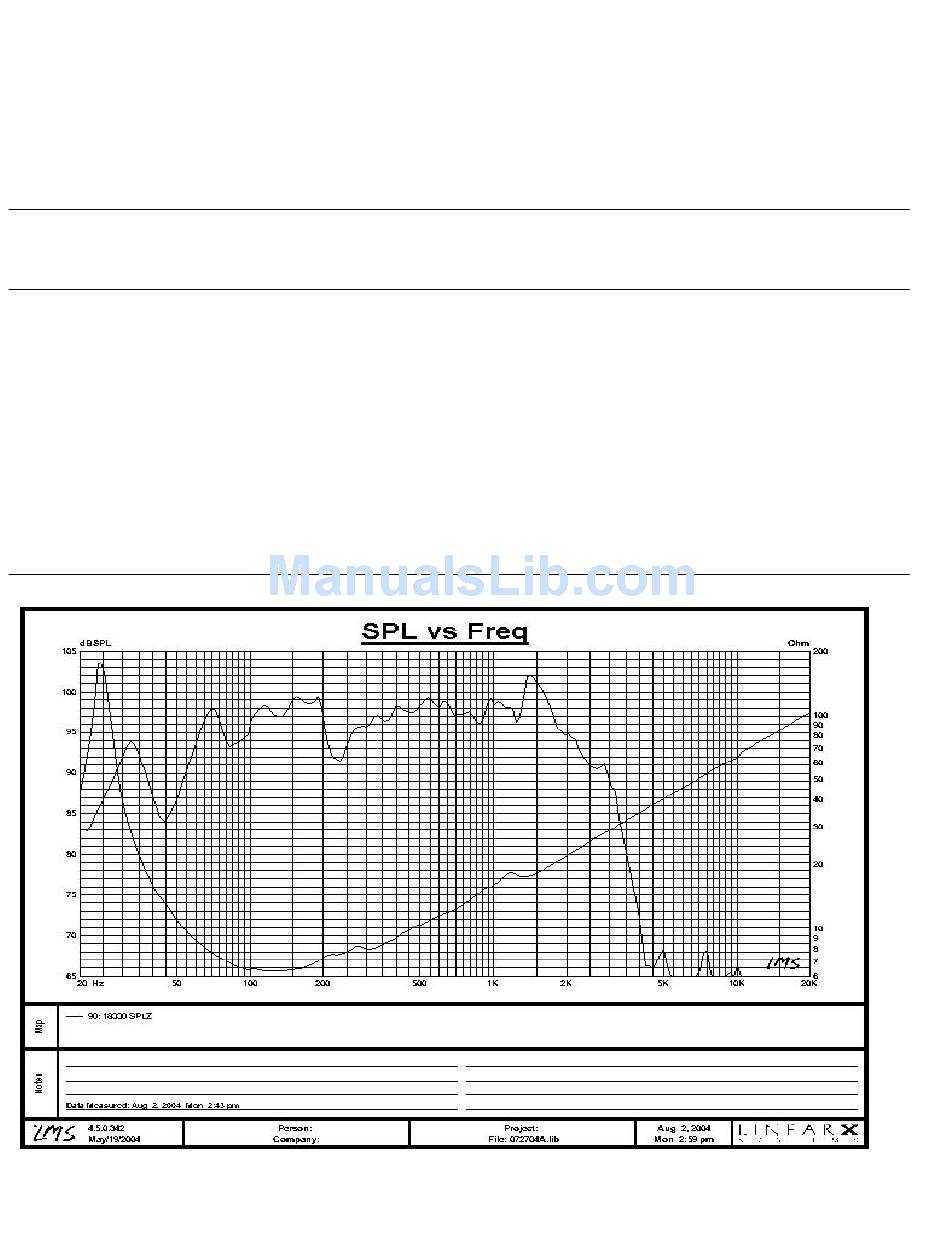

PlotImageFile \\Enterprise\lmsdata\CurveJPG\18330.jpg
Reference Number
18330
fs
Mms
Mmd
Cms
Rms
Vas
SD
VD
EBP
Magnet Weight
Winding Width
SPL
24.0 Hz
130.7 grams
108.0 grams
0.337 mm/N
2.202
N*sec/m
643.3 liters
1159.0 cm^2
552.0 cm^3
69.7
109 ounces
0.750 inches
96.0
dB 1W-1m
