Operation Manual
CD RECEIVER
DEH-P6050UB
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEH-P6050UB and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer DEH-P6050UB

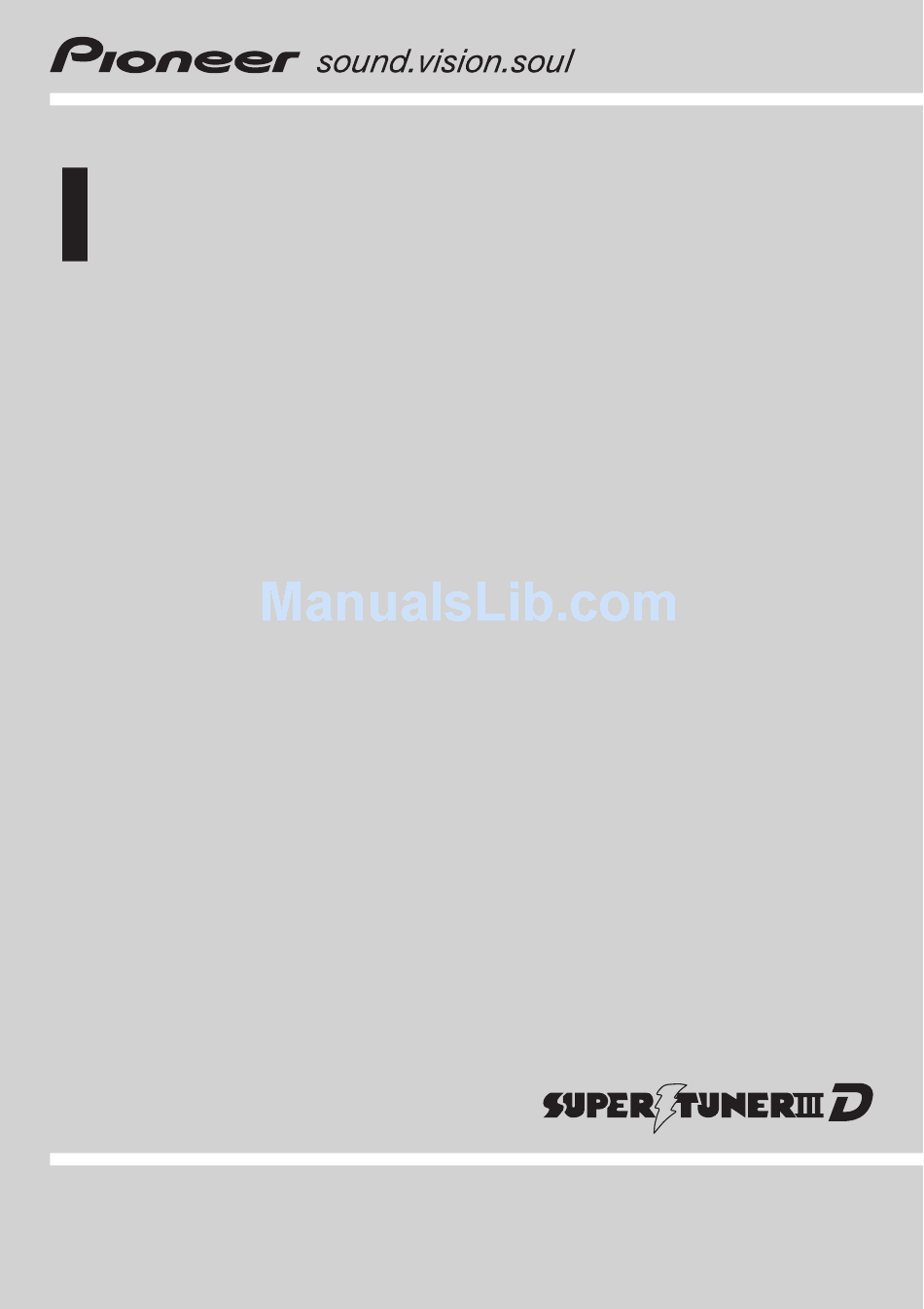

  • Page 1 Operation Manual CD RECEIVER DEH-P6050UB English...
  • Page 2: Table Of Contents

    Contents Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference.
  • Page 3 Contents – Adjusting 7-band graphic equalizer 25 – Selecting the external unit as the Adjusting loudness 26 source 34 – Basic operation 35 Using subwoofer output 26 – Adjusting subwoofer settings 26 – Using the functions allocated to 1 to 6 Boosting the bass 27 keys 35 –...
  • Page 4 Contents – Connecting a cellular phone 43 Additional Information – Disconnecting a cellular phone 44 Error messages 57 – Registering a connected cellular Handling guideline of discs and player 58 phone 44 Dual Discs 59 – Deleting a registered phone 44 Compressed audio compatibility 59 –...
  • Page 5: Before You Start

    ! If this unit does not operate properly, contact — WMA, MP3, AAC and WAV file playback your dealer or nearest authorized Pioneer Ser- For details about the compatibility, refer to vice Station. USB audio player/USB memory compatibility on page 59.
  • Page 6: Visit Our Website

    U.S. and other countries. Press and hold OPEN to open the front panel. CAUTION ! Pioneer accepts no responsibility for data lost on the USB portable audio player/USB mem- ory even if that data is lost while using this unit.
  • Page 7: Resetting The Microprocessor

    Section Before You Start Resetting the microprocessor tion switch is set to ACC or ON. Press DISP during feature demo operation to cancel the The microprocessor must be reset under the feature demo mode. Press DISP again to start. following conditions: Remember that if the feature demo continues ! Prior to using this unit for the first time operating when the car engine is turned off, it...
  • Page 8: Using The Remote Control

    Section Before You Start Using the remote control Point the remote control in the direction of the front panel to operate. ! The remote control may not function prop- erly in direct sunlight. Important ! Do not store the remote control in high tem- peratures or direct sunlight.
  • Page 9: Operating This Unit

    Section Operating this unit 8 CLOCK/DISP OFF button What’s What Press to change to the clock display. Press and hold to turn the display indication Head unit and button illumination off or on. 9 SW/BASS button 1 SRC/OFF button Press to switch to subwoofer setting menu. This unit is turned on by selecting a source.
  • Page 10: Basic Operations

    Section Operating this unit c VOLUME buttons Basic Operations Press to increase or decrease the volume. Power ON/OFF d FUNCTION button Turning the unit on Press to select functions. % Press SRC to turn the unit on. e Thumb pad Move to perform manual seek tuning, fast forward, reverse and track search controls.
  • Page 11: Adjusting The Volume

    Section Operating this unit ! External unit refers to a Pioneer product (such Tuner as ones available in the future) that, although Basic Operations incompatible as a source, enables control of basic functions with this unit. Two external If you are using this unit in North, Central or units can be controlled with this unit.
  • Page 12: Storing And Recalling Broadcast Frequencies

    Section Operating this unit Storing and recalling broadcast Introduction of advanced frequencies operations You can easily store up to six broadcast fre- Press MULTI-CONTROL to display the quencies for later recall. main menu. ! Six stations for each band can be stored in Use MULTI-CONTROL to select memory.
  • Page 13: Built-In Cd Player

    Section Operating this unit Display the function menu. Built-in CD Player Refer to Introduction of advanced operations on Basic Operations the previous page. Use MULTI-CONTROL to select Local in the function menu. Press MULTI-CONTROL to turn local seek tuning on. # To turn local seek tuning off, press MULTI-CONTROL again.
  • Page 14: Selecting A Track Directly

    Section Operating this unit % Select a folder Selecting a track directly Push MULTI-CONTROL up or down. When using the remote control, you can select # You cannot select a folder that does not have a track directly by entering the desired track a compressed audio file recorded in it.
  • Page 15: Selecting Tracks From The Track Title List

    Section Operating this unit Selecting files from the file Notes name list ! You can scroll to the left of the title by pressing File name list lets you see the list of file names and holding DISP. ! Audio CD that contains certain information (or folder names) and select one of them to playback.
  • Page 16: Selecting A Repeat Play Range

    Section Operating this unit % Press RDM to turn random play on. Turn MULTI-CONTROL to select the function. Tracks play in a random order. # To turn random play off, press RDM again. Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)—Sound Retriever (sound re- Note triever)—TitleInput "A"...
  • Page 17: Using Sound Retriever

    Section Operating this unit Using Sound Retriever Push MULTI-CONTROL left or right to move the cursor to the previous or next Sound Retriever function automatically en- character position. hances compressed audio and restores rich sound. Move the cursor to the last position by pushing MULTI-CONTROL right after enter- % Press S.Rtrv repeatedly to select the de- ing the title.
  • Page 18: Playing Songs On Usb Portable Audio Player/Usb Memory

    Section Operating this unit ! When the USB portable audio player having Playing songs on USB portable battery charging function is connected to this audio player/USB memory unit and the ignition switch is set to ACC or For details about the supported device, refer to ON, the battery is charged.
  • Page 19: Introduction Of Advanced Operations

    Section Operating this unit Introduction of advanced Notes operations ! You can also select the function by pressing FUNCTION on the remote control. Press MULTI-CONTROL to display the ! To return to the ordinary display, press BAND. main menu. ! If you select another folder during repeat play, Use MULTI-CONTROL to select the repeat play range changes to All repeat.
  • Page 20: Playing Songs On Ipod

    # You can also change the category by pushing ! Read the precautions for iPod on page 61. MULTI-CONTROL up or down. ! While iPod is connected to this unit, PIONEER # You can also select the category by pushing (check mark)) is displayed on the iPod.
  • Page 21: Displaying Text Information On Ipod

    Section Operating this unit Use MULTI-CONTROL to select a cate- The function menu is displayed. gory. Turn MULTI-CONTROL to select the Turn to change the category. Press to select. function. Press LIST to switch to alphabet search Play mode (repeat play)—Shuffle mode mode.
  • Page 22: Playing Songs In A Random Order (Shuffle)

    Section Operating this unit Playing songs in a random Use MULTI-CONTROL to select an album or song from the list. order (shuffle) For more details about the selecting operation, Display the function menu. refer to step 2 of Browsing for a song on page Refer to Introduction of advanced operations on the previous page.
  • Page 23: Changing Audiobook Speed

    Section Operating this unit Changing audiobook speed While listening to an audiobook on iPod, play- back speed can be changed. Display the function menu. Refer to Introduction of advanced operations on page 21. Use MULTI-CONTROL to select Audiobooks in the function menu. Press MULTI-CONTROL to select your fa- vorite setting.
  • Page 24: Audio Adjustments

    Section Audio Adjustments Introduction of audio Using balance adjustment adjustments You can change the fader/balance setting so that it can provide the ideal listening environ- ment in all occupied seats. Display the audio menu. Refer to Introduction of audio adjustments on this page.
  • Page 25: Adjusting Equalizer Curves

    Section Audio Adjustments Recall the equalizer curve you want to Display Equalizer curve adjust. Powerful Powerful See Recalling equalizer curves on the previous page. Natural Natural Vocal Vocal Push MULTI-CONTROL up or down to adjust the equalizer curve. Custom1 Custom 1 Each time MULTI-CONTROL is pushed up or Custom2 Custom 2...
  • Page 26: Adjusting Loudness

    Section Audio Adjustments Push MULTI-CONTROL left or right to Display the audio menu. select the equalizer band to adjust. Refer to Introduction of audio adjustments on Each time MULTI-CONTROL is pushed left or page 24. # You can also select the subwoofer setting right, equalizer bands are selected in the fol- lowing order: menu by pressing SW on the unit.
  • Page 27: Boosting The Bass

    Section Audio Adjustments Push MULTI-CONTROL up or down to Push MULTI-CONTROL left or right to adjust the output level of the subwoofer. select cut-off frequency. Each time MULTI-CONTROL is pushed up or Each time MULTI-CONTROL is pushed left or down, subwoofer level increases or decreases. right, cut-off frequencies are selected in the +6 to -24 is displayed as the level is increased following order:...
  • Page 28: Initial Settings

    Section Initial Settings # BT AUDIO and Pin code input can be se- Adjusting initial settings lected only when Bluetooth adapter (e.g., CD- BTB100) is connected to this unit. # To cancel initial settings, press BAND. Selecting the display language For your convenience, this unit equips multi- 1 1 1 ple language display.
  • Page 29: Setting The Clock

    Section Initial Settings ! If seek tuning is performed in 50 kHz steps, As you select segments of the calendar dis- play the segment selected will blink. stations may be tuned in imprecisely. Tune in the stations with manual tuning or use Push MULTI-CONTROL up or down to seek tuning again.
  • Page 30: Switching The Face Auto Open

    Section Initial Settings ! For this function, verify the topic Adjusting Use MULTI-CONTROL to select AUX1/ initial settings before initiating the opera- AUX2. tion. Press MULTI-CONTROL to turn AUX1/ Display the intial setting menu. AUX2 on. # To turn AUX off, press MULTI-CONTROL Use MULTI-CONTROL to select again.
  • Page 31: Setting The Rear Output And Subwoofer Controller

    Section Initial Settings Setting the rear output and Switching the sound subwoofer controller muting/attenuation This unit’s rear output (rear speaker leads out- Sound from this system is muted or attenu- put and RCA rear output) can be used for full- ated automatically when the signal from the range speaker (Rear SP :F.Range) or subwoo- equipment with mute function is received.
  • Page 32: Switching The Reverse Mode

    Section Initial Settings Use MULTI-CONTROL to select Notes Ever-scroll. ! Remember that if the feature demo continues Press MULTI-CONTROL to turn the ever operating when the car engine is turned off, it scroll on. may drain battery power. ! You can also turn on or off feature demo by # To turn the Ever Scroll off, press pressing DISP while this unit is turned off.
  • Page 33: Displaying System Version For Repair

    Section Initial Settings ! For this function, verify the topic Adjusting Push MULTI-CONTROL left to switch to initial settings before initiating the opera- the version of the Bluetooth module of this tion. unit. # Pushing MULTI-CONTROL right returns to the Display the intial setting menu.
  • Page 34: Other Functions

    Using the external unit For more details, refer to the installation man- ual. External unit refers to a Pioneer product (such This auxiliary device is automatically set to as ones available in the future) that, although AUX1.
  • Page 35: Basic Operation

    Section Other Functions Basic operation Turning the clock display on or off Functions allocated to the following opera- tions are different depending on the con- You can turn the clock display on or off. nected external unit. For details concerning ! Even when the sources and the feature functions, refer to the connected external demo are off, the clock display appears on...
  • Page 36: Using Different Entertainment Displays

    Section Other Functions ! IPOD – iPod Using different ! BT Audio – Bluetooth audio player entertainment displays ! DVD – DVD player/multi-DVD player # To turn pause off, press PGM again. You can enjoy entertainment displays while lis- tening to each sound source. % Press PGM and hold to turn BSM on Press MULTI-CONTROL to display the when selecting tuner as the source.
  • Page 37: Available Accessories

    USB interface of this unit. (Refer ! Read the precautions for iPod on page 61. to Browsing for a song on page 20.) ! While iPod is connected to this unit, PIONEER However, the selectable categories are slightly different. Selectable categories are (check mark)) is displayed on the iPod.
  • Page 38: Playing Songs In A Random Order (Shuffle)

    Section Available accessories Turn MULTI-CONTROL to select the Bluetooth Audio function. Basic Operations Play mode (repeat play)—Shuffle mode (shuffle)—Pause (pause) If you connect a Bluetooth adapter (e.g. CD- BTB100) to this unit, you can control Bluetooth audio players via Bluetooth wireless technology. Function and operation Play mode and Pause operations are basically the same as that of the built-in CD player.
  • Page 39: Function And Operation

    Section Available accessories ! When you are talking on a cellular phone con- (Play)—Stop (Stop)—Pause (pause)— nected to this unit via Bluetooth wireless tech- Device info (device information) # Pause is the same as that of the built-in CD nology, song playback from your Bluetooth audio player connected to this unit is muted.
  • Page 40: Playing Songs On Bluetooth Audio Player

    Section Available accessories Press MULTI-CONTROL to disconnect Note the Bluetooth audio player. Before you can use audio players you may need Disconnected is displayed. The Bluetooth to enter the PIN code into this unit. If your player audio player is now diconnected from this requires a PIN code to establish a connection, unit.
  • Page 41: Setting Up For Hands-Free Phoning

    Section Available accessories ! When selecting the phone source, you can 3 User number indicator Shows the registration number of the cellular only operate Fader (balance adjustment) in phone. the audio menu. 4 Battery strength indicator Shows the battery strength of cellular phone. Setting up for hands-free phoning ! Battery strength indicator may differ Before you can use the hands-free phoning...
  • Page 42: Making A Phone Call

    Section Available accessories % End all calls Making a phone call Push MULTI-CONTROL down. Voice recognition % Switch between callers on hold Press BAND and hold until Voice dial Press MULTI-CONTROL. appears in the display. # You can also perform this operation by push- Voice dial appears in the display.
  • Page 43: Connecting A Cellular Phone

    (Refer to Displaying BD (Bluetooth complete the connection, check the device Device) address on page 40.) name (Pioneer BT Unit) and enter the link ! PH.B.Name view (phone book name view) code on your cellular phone. If the connection cannot be selected for cellular phone regis- is established, Connected is displayed.
  • Page 44: Disconnecting A Cellular Phone

    Section Available accessories Press MULTI-CONTROL to open the con- more detailed instructions, see Deleting a regis- nection. tered phone on this page. Always waiting flashes and the unit is now Press MULTI-CONTROL to register the on standby for connection from a cellular currently connected phone.
  • Page 45: Connecting To A Registered Cellular Phone

    Section Available accessories Connecting to a registered Use MULTI-CONTROL to select PH.B.Transfer in the function menu. cellular phone Press MULTI-CONTROL to enter in the Connecting to a registered phone phone book transfer standby mode. manually Transfer YES appears in the display. Display the function menu.
  • Page 46 Section Available accessories Push MULTI-CONTROL left or right to Alphabet (upper case), numbers and symbols —alphabet (lower case)—numbers and sym- select the first letter of the name you are looking for. bols—European characters, such as those with accents (e.g., á, à, ä, ç) or Russian char- Press MULTI-CONTROL to display en- acters tries.
  • Page 47: Using The Call History

    Section Available accessories Push MULTI-CONTROL up or down to tory. You can browse the call history and call change numbers. numbers from it. Repeat these steps until you have finished Press LIST to display the list. changing. Press LIST repeatedly to switch between the Press MULTI-CONTROL to store the new following lists: number.
  • Page 48: Making A Call By Entering Phone Number

    Section Available accessories Select a desired phone number from Clearing memory the phone book or the call history. Or di- Display the function menu. rectly enter a desired phone number. Refer to Function and operation on page 42. To select a desired phone number from the Phone Book or the Call History, see the in- Use MULTI-CONTROL to select structions explained in previous pages.
  • Page 49: Setting Automatic Answering

    Section Available accessories Setting automatic answering Display the function menu. Refer to Function and operation on page 42. Use MULTI-CONTROL to select Auto answer in the function menu. Press MULTI-CONTROL to turn auto- matic answering on. # To turn automatic answering function off, 1 Disc number indicator press MULTI-CONTROL again.
  • Page 50: Introduction Of Advanced Operations

    Section Available accessories Introduction of advanced Function name Operation operations Refer to Selecting a repeat play You can only use Compression (compression range on page 16. However, the repeat play ranges and DBE) with a multi-CD player that supports you can select are different from them.
  • Page 51: Using Its Playlists

    Section Available accessories Use MULTI-CONTROL to select Playback from your ITS playlist compression in the function menu. ITS play lets you listen to the tracks that you # If the multi-CD player does not support have entered into your ITS playlist. When you COMP/DBE, NO COMP is displayed when you at- turn on ITS play, tracks from your ITS playlist tempt to select it.
  • Page 52: Using Disc Title Functions

    Section Available accessories ! Titles remain in the memory even after the Push MULTI-CONTROL down to erase the track from your ITS playlist. disc is removed from the magazine, and The currently playing selection is erased from are recalled when the disc is reinserted. ! After data for 100 discs is stored in mem- your ITS playlist and playback of the next track begins.
  • Page 53: Dvd Player

    Section Available accessories DVD Player Selecting a disc ! You can operate this function only when a Basic Operations multi-DVD player is connected to this unit. You can use this unit to control a DVD player or % Press any of 1 to 6 on the remote con- multi-DVD player, which is sold separately.
  • Page 54: Tv Tuner

    Section Available accessories # If you do not operate functions except for Notes ITS memo and TitleInput "A" within about 30 ! If you select other discs during repeat play, seconds, the display is automatically returned to the repeat play range changes to Disc repeat. the ordinary display.
  • Page 55: Storing And Recalling Broadcast Stations

    Section Available accessories 2 Preset number indicator Using the remote control 3 Channel indicator You can also store and recall stations assigned to preset tuning numbers P 1 to P 6 by using % Select a band the remote control. Press BAND.
  • Page 56 Section Available accessories # If you do not operate the list within about 30 seconds, the display automatically returns to the ordinary display.
  • Page 57: Additional Information

    USB portable not protected by TRK SKIPPED When you contact your dealer or your nearest audio player/ Windows Media Pioneer Service Center, be sure to have the USB memory DRM 9/10. contains WMA error message recorded. files that are pro-...
  • Page 58: Handling Guideline Of Discs And Player

    Appendix Additional Information Communication Perform one of the iPod is not Check if the con- failure following opera- charged but op- nection cable for ERROR-19 ERROR-A1 tions. erates correctly iPod shorted out CHECK USB -Turn the ignition (e.g., not caught in switch OFF and metal objects).
  • Page 59: Dual Discs

    Appendix Additional Information ! Avoid leaving discs in excessively hot envir- Compressed audio onments including under direct sunlight. compatibility ! Do not attach labels, write on or apply che- micals to the surface of the discs. ! To clean a CD, wipe the disc with a soft ! Compatible format: WMA encoded by cloth outward from the center.
  • Page 60: Handling Guideline And Supplemental Information

    Appendix Additional Information ! Protocol: bulk ! Depending on the USB devices connected ! Minimum amount of memory: 250 MB to this unit, it may generate noise in the ! Maximum amount of memory: 250 GB radio. ! Only 32 characters from the beginning can ! File system: FAT32 and FAT16 ! Supply current: 500 mA be displayed as a file name (including the...
  • Page 61: Ipod

    ! For details, refer to the iPod’s manuals. About iPod settings ! You cannot operate the iPod Equalizer on Pioneer products. We recommend that you set the iPod Equalizer to off, before con- Level 1 Level 2 Level 3 Level 4 necting to this unit.
  • Page 62: Example Of A Hierarchy

    Appendix Additional Information ! Regardless of the length of blank section between the songs of original recording, compressed audio discs play with a short pause between songs. ! File extensions such as .wma, .mp3, .m4a or .wav must be used properly. Example of a hierarchy : Folder : Compressed audio file...
  • Page 63: Specifications

    Appendix Additional Information ® Specifications AAC decoding format .... MPEG-4 AAC (iTunes coded only) (.m4a) General (Ver. 7.2 and earlier) WAV signal format ....Linear PCM & MS ADPCM Power source ......14.4 V DC (12.0 V to 14.4 V (Non-compressed) allowable) Grounding system ....
  • Page 64 TEL: (03) 9586-6300 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901 TEL: 905-479-4411 PIONEER ELECTRONICS DE MEXICO, S.A. de C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 先鋒股份有限公司...
