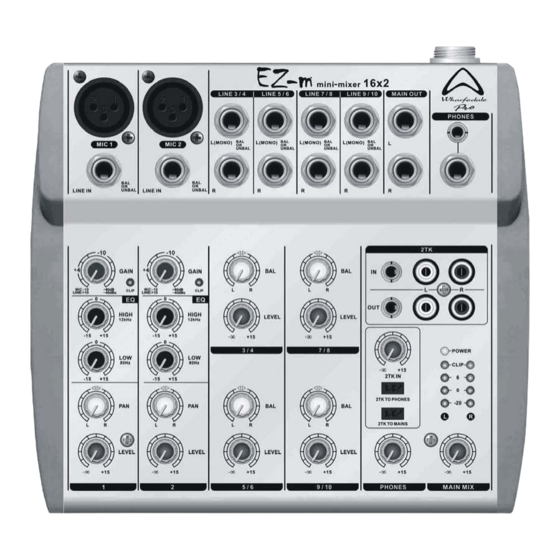

  • Page 1 EZ-m 16x2 mini-mixer OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Page 1 Introduction / Features / Back Panel diagram 2 Im portant Safety & Warranty Information 3 Detailed Features of the EZ-m 10x2 – Mono M ic/Line Input Channel 4 Mono Mic/Line Channel - Low Impedance (Low Z) MIC Input...
  • Page 3 Introduction Thank you for purchasing a Wharfedale Pro EZ-m mini-mixer. The Wharfedale Pro EZ-m Series mixers are designed for ease of use and quality audio performance. Please read this manual completely to ensure proper understanding of the features and operation of your mixer.

  • Page 4: Important Safety & Warranty Information

    Also, avoid placing your EZ-m Series mixer in locations which may be subject to excessive vibration/physical shocks that could cause mechanical damage to the mixer.

  • Page 5: Detailed Features Of The Ez-M 10X2 - Mono M Ic/Line Input Channel

    DETAILED FEATURES OF THE EZ-m 16x2 Mono Mic / Line Input Channel...

  • Page 6: Low Impedance (Low Z) Mic Input

    Low Impedance (Low Z) MIC Input he low noise, high headroom “Low Z” MIC inputs are for use with balanced, low impedance dynamic micro phones. NOTE: Condenser microphones will not work on this mixer. LINE IN hese ¼” Tip, Ring, Sleeve (TRS) jacks are designed to be onnected w ith (-10 to +4dBu) balanced or unbalanced line level sources.
  • Page 7 EQ Section Channels 1 and 2 each feature a two band Equalization (”EQ”) section. Each band is chosen from the prime frequencies for most musical applications, and allows up to 15 decibels of boost (increase) or cut (decrease) of the signal in the tone range for which it controls. the center-detent position (0), the equalizer is bypasse d (flat)and the control has no effect on...

  • Page 8: Mono Channel Eq Section

    Stereo Channe l Inputs ach of the stereo channel s on the EZ-m 16x2 (3/4, 5/6, 7/8, 9/10) fe ature two line level inputs with ¼” Tip/Ring/Sleeve (TRS) jacks for both alanced and unbalanced left and right input ignals. These inputs can accommodate both stere o and mono inputs.

  • Page 9: Master Section

    The MAIN MIX control allows for the adjustment of the overall output level of the EZ-m m ixer. POWER LED & Signal Metering POWER LED This amber LED lights indicating power is on for the mixer.

  • Page 10: 2Tk In

    2TK IN This section consists of two sets of three input jacks. The top row of jacks are the “2TK IN” jacks which are a 1/8” stereo jack and a left and right RCA jack. These inputs allow for the introdu ction of an external stereo signal to the mixer.

  • Page 11: Power Switch On/Off

    OWER Switch – On/Off This slide switch turns the unit on and off. Always power down the EZ-m when it is not in u Be sure to turn off all system amplifiers or powere speakers before turning off the mixer.

  • Page 12: Specifications

    CIFICATIONS EZ-m mini-mixer 16X2 Specifications Maximum Output Level +22dBu over 130mw (headphone) @ 32 ohms (1%T.H.D. @ 1kHz) THD+N% <0.01% @ +15dBu Frequency Response 20Hz-20kHz +0/-1dB -127dB Mic Pre Equivalent Input Noise Hum and Noise '-90dBu Residual Noise Mic In: '+10dBu...

  • Page 13: Block Diagram

    BLOCK DIAGRAM...
  • Page 14 Huntingdon, Cambs, PE29 6XU, England www.wharfe alepro.com IAG Professional reserves the right to a lter or improve specifications without notice. All rights reserved © 2007 W harfedale Pro Wharfedale Pro is a member o f the Internati onal Audio Group...
