Hard Drive Information

This feature allows you to view the drive model, serial number, capacity, UDMA mode, and
other details about the selected hard drive.
1. Insert the Data Lifeguard Tools CD into your CD-ROM drive. Select Hard Drive
Information from the main menu.
2. In the next window, you can select either View Hard Drive Information or View Jumper
Settings.

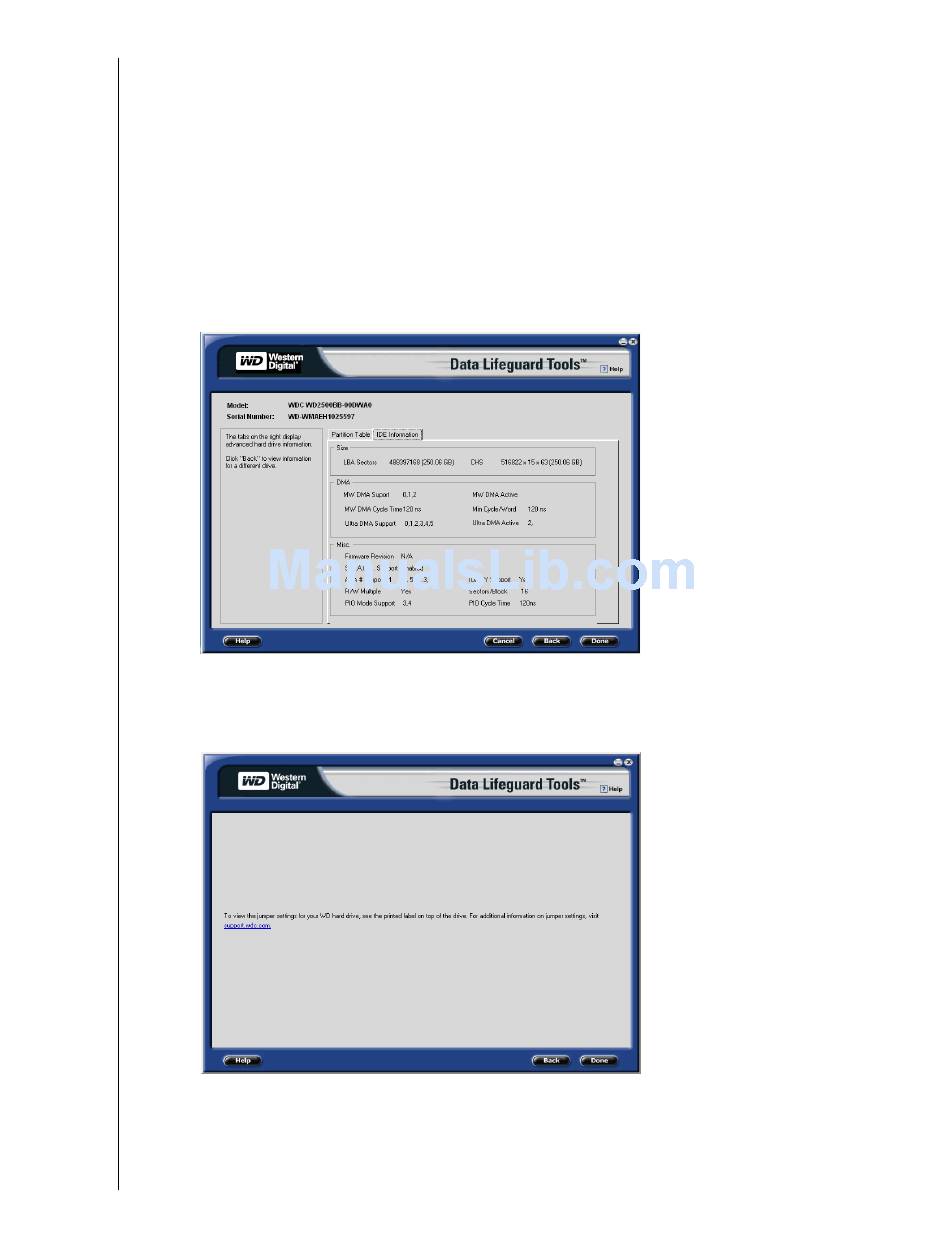

a) View Hard Drive Information — Once your drive is detected, click the tab for
Partition Table or IDE Information to display data regarding the type of drive
format, LBA support, DMA support, firmware revision, etc. Click
b) View Jumper Settings — To view the jumper settings for your WD hard drive, see
the printed label on top of the drive. For additional information on jumper settings,
visit support.wdc.com. Click Done.
DATA LIFEGUARD TOOLS
USER MANUAL
Done.
USING DATA LIFEGUARD TOOLS – 15
