TP-Link TL-PA511 User Manual page 24

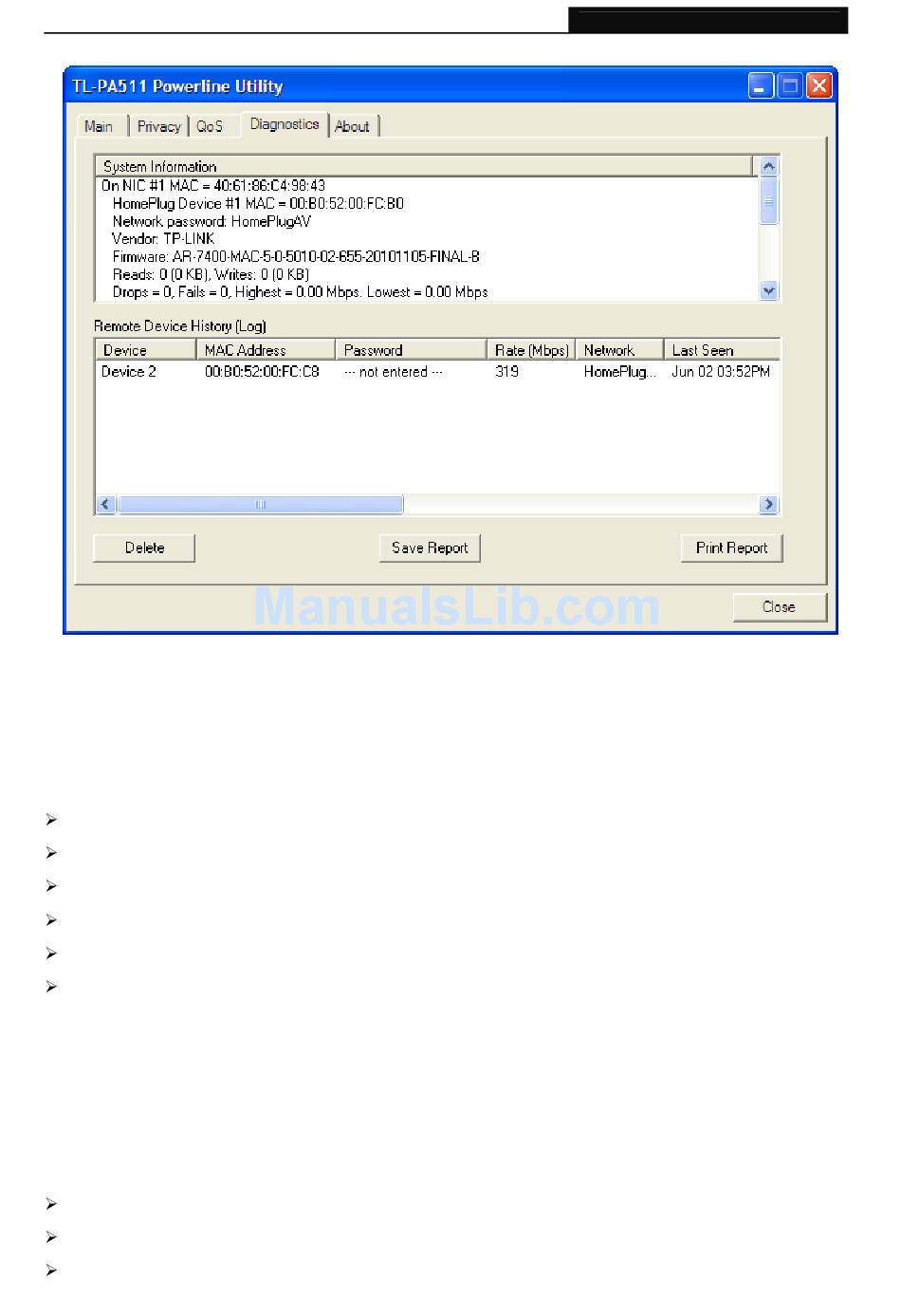

The Diagnostics information displayed can be saved to a text file. One can email the saved text file to
the local supplier when there's technical support required or print the saved text file as reference during
a technical support conference.
The Upper Panel shows the technical data concerning software and hardware present on the host
computer which were used to communicate over Powerline Adapter on the Powerline network. It may
include the following:
Operating System Platform/Version
Host Network Name
User Name
MAC Address of all NICs (Network interface card) connected to the host
Identify versions of all Driver DLLs and Libraries used (NDIS) and optionally
MAC addresses of all devices connected locally to the host
Click the "Delete" tab to delete the Powerline Adapter device which is no longer part of the network.
The Lower Panel contains a history of all remote Powerline Adapter devices seen on the computer over
a certain period of time. All devices that were on the powerline network are listed here along with a few
other parameters. Powerline Adapter devices that are active on the current logical network will show a
transfer rate in the Rate column; devices on other networks, or devices that may no longer exist are
shown with a "?" in the Rate column. The following remote Powerline Adapter devices information is
available from the diagnostics screen:
Device Name
Device MAC Address
Device Password
TL-PA511 AV500 Mini Powerline Adapter
19
