Chapter 4 Using The Management Utility; Main - TP-Link TL-PA511 User Manual

TL-PA511 AV500 Mini Powerline Adapter

Chapter 4 Using the Management Utility

After you'd successfully installed the Powerline Adapter hardware and Management Utility software, you
can set up or configure the devices according to your need.
This Powerline Adapter Configuration Utility enables the users to identify powerline devices on the
powerline network, measure data rate performance, ensure privacy and perform diagnostics by setting
user-defined secure powerline networks.

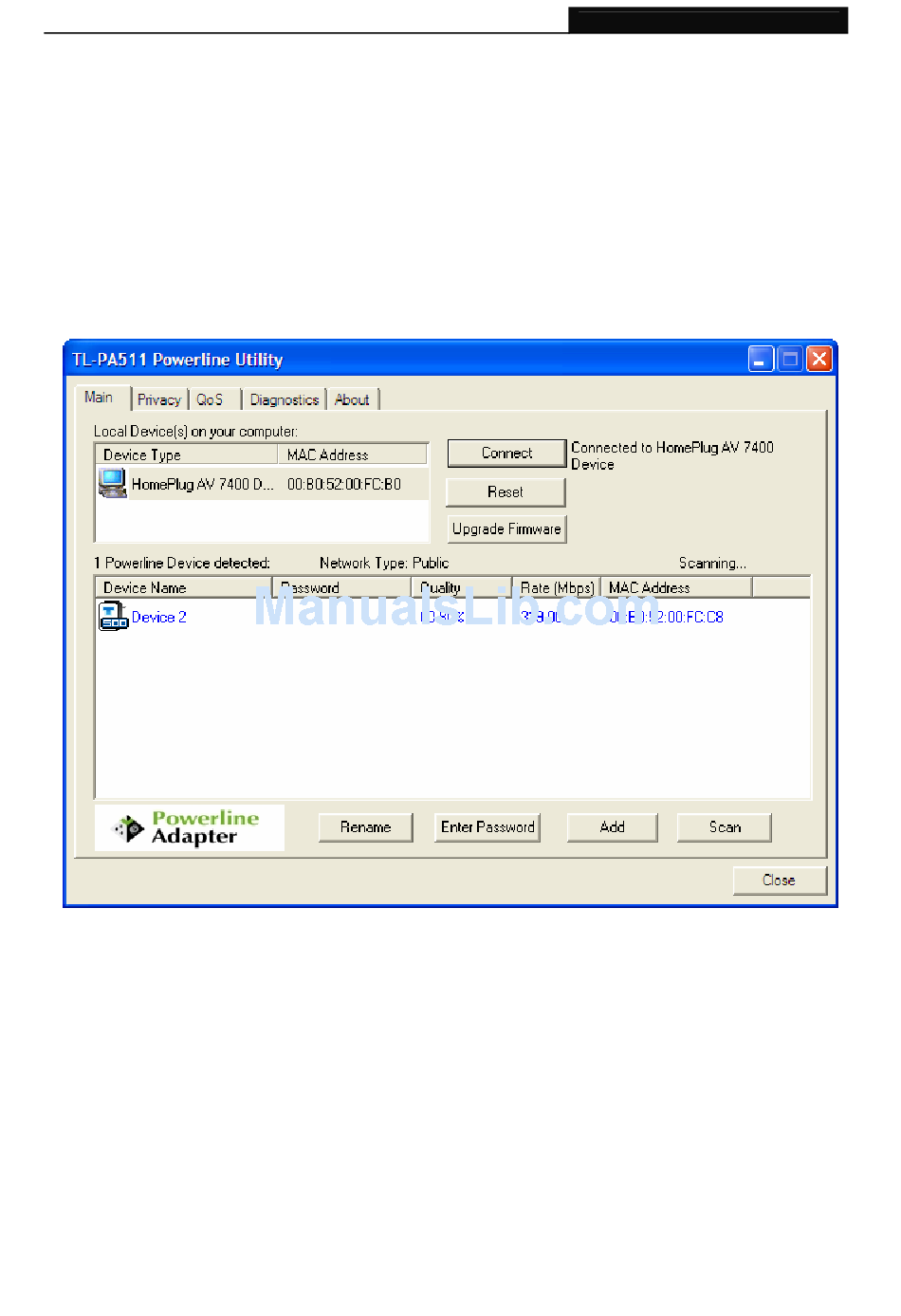

Double click on the "TL-PA511 Powerline Utility" from your windows desktop, and the following screen
will display. This Management Utility consists of five property sheets, i.e., "Main", "Privacy", "QoS",
"Diagnostics" and "About".

4.1 Main

The Main tab shows all the Powerline Adapters that are logically connected to the current computer
where the Management Utility is running.
11
