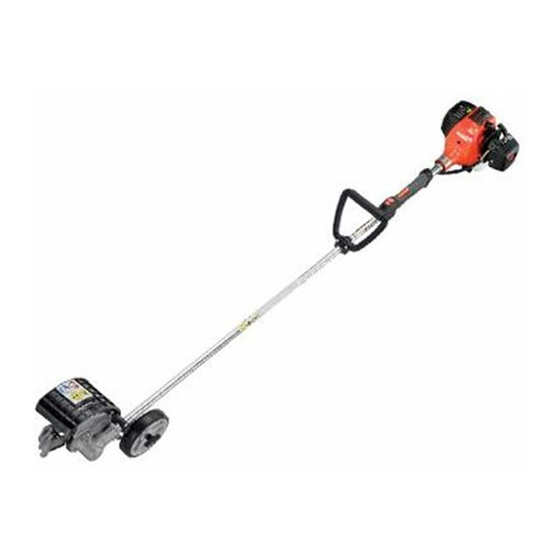

Echo BRD-280 Operator's Manual

Bed redefiner
Hide thumbs Also See for BRD-280:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Bed Redefiner
Operator's Manual
MODEL
Read rules for safe operation and instructions carefully. ECHO provides an Opera-
tor's Manual and a Safety Manual. Both must be read and understood for proper
and safe operation.
X7502311203
BRD-280
warning
X750012083
01/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRD-280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echo BRD-280

Summary of Contents for Echo BRD-280

  • Page 1 Bed Redefiner Operator's Manual MODEL BRD-280 warning Read rules for safe operation and instructions carefully. ECHO provides an Opera- tor's Manual and a Safety Manual. Both must be read and understood for proper and safe operation. X750012083 X7502311203 01/11...

  • Page 2: Table Of Contents

    Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will find both easy to use and full of helpful operations tips and SAFETY messages.

  • Page 3: Safety

    edefineR peRatOR anual afety anual afety ymbols and mportant nformatIon Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages pre- ceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.

  • Page 4: Personal Condition And Safety Equipment

    To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such informa- tion, ECHO does not recommend the use of ECHO products by anyone who has a pacemaker. Vibration and Cold It is believed that a condition called Raynaud’s Phenomenon, which affects the fingers of certain individuals, may be...
  • Page 5 edefineR peRatOR anual Repetitive Stress Injuries It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).

  • Page 6: Equipment

    Use only ECHO approved attachments. Serious injury may result from the use of a non approved attachment combi- nation. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

  • Page 7: Description

    Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instruc- tions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.
  • Page 8 1. POWER hEAD - Factory assembled. Includes the engine, clutch, fuel system, ignition system and starter. 2. ThROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is prevented unless throttle trigger lockout lever is engaged. 3.

  • Page 9: Contents

    The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

  • Page 10: Throttle Linkage And Ignition Leads

    4. Check throttle for freedom of movement and that wide open throttle / low idle extremes are adjusted properly. If adjustment cannot be achieved with adjusting nuts (B), consult with your Echo Dealer for correct adjustment procedure. Tighten nuts (B).

  • Page 11: Support Handle

    edefineR peRatOR anual support handle Parts Required: Support Handle, Lower Bracket, 4 - 5 x 35 mm screws NOTE Label shows minimum spacing for front handle location. Assemble front handle and bracket loosely to drive shaft. Position front handle in comfortable operating position and tighten screws.

  • Page 12: Operation

    Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance prob- lems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement.
  • Page 13 edefineR peRatOR anual Handling Fuel warning Fuel is VERY flammable. Use extreme care when mixing, storing or handling or serious personal injury may result. • Use an approved fuel container. • DO NOT smoke near fuel. • DO NOT allow flames or sparks near fuel. •...

  • Page 14: Starting Cold Engine

    startIng cold engIne warning The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from objects that could become entangled or thrown. 1.

  • Page 15: Starting Warm Engine

    The attachment should not move at idle, otherwise serious personal injury may result. NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. Stop Switch Move stop switch (A) away from the STOP position Purge Bulb Pump purge bulb (C) until fuel will be visible and flows freely in the clear fuel tank return line.

  • Page 16: Operating Techniques

    ONLY for redefining existing bed edges. For edging next to curbs, sidewalks, or other hard surfaces, remove redefining blade and install ECHO Approved Premium Power Edger blade. Use of redefining blade next to hard surfaces, can lead to premature blade wear.

  • Page 17: Edging Operation

    edefineR peRatOR anual 8. If shield clogs with mud or debris, do not hit unit against hard surfaces to clean, or damage to unit may occur. Stop engine and unclog shield with a suitable tool. IMPORTANT Be sure blade has completely stopped spinning before setting unit on concrete or other hard surface.
  • Page 18 NOTE Blade depth may have to be adjusted due to differences in height between the hard surface and the top of the grass. ADJUSTMENT wHEEL KnOB 4. Loosen blade adjustment knob and adjust the blade’s depth of cut inCrEaSE to produce a fine cut between sidewalk and grass using a minimum DEPTH blade depth, usually with about 13 mm (1/2 in.) of the blade into the ground.

  • Page 19: Maintenance

    ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed see your Echo dealer for repairs.

  • Page 20: Air Filter

    aIr fIlter Level 1. Parts required: REPOWER AIR & FUEL FILTER KIT. 1. Close choke (Cold Start Position [ ]). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area. Remove air filter cover.

  • Page 21: Spark Plug

    edefineR peRatOR anual spark plug Level 2. Parts Required: REPOWER Tune-Up Kit IMPORTANT Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) other- wise severe engine damage may occur. Remove spark plug and check for fouling, worn and rounded center electrode. 2.

  • Page 22: Exhaust System

    IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. 5. Use brush to remove dirt from the cylinder fins. 6. Remove grass and leaves from the grid between the recoil starter and fuel tank. 7. Assemble components in reverse order. exhaust system Spark Arrestor Screen Level 2.

  • Page 23: Carburetor Adjustment

    (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be ad- justed by an authorized ECHO service dealer. IMPORTANT If the engine is adjusted for operation above 1,100 feet ASL, the carburetor must be re-adjusted when operating the engine below 1,100 feet ASL, otherwise severe engine damage may result.

  • Page 24: Drive Shaft Lubrication

    Every unit is run at the factory and the carburetor is set in compli- ance with emission regulations. Carburetor adjustments, other than idle speed, must be performed by an authorized ECHO dealer. 1. Check idle speed and reset if necessary. If a tachometer is avail- able, idle speed screw (A) should be set to the specifications found on page 27 "Specifications"...

  • Page 25: Blade Replacement / Lubrication

    edefineR peRatOR anual blade replacement lubrIcatIon Level 1. Parts Required: POWER BLENDX 8 oz. (P/N 91014) or Lithium Base Grease, Blade P/N 99944208000, split pin P/N 90030020022 NOTE Grease gear case every 15 - 25 hours of use. Replace blade when carbide tips have worn away.
  • Page 26 8. Install inner blade adapter (B) onto PTO shaft (C). 9. Install and center new blade (F) onto inner fixing plate (B), with longest side toward shield. 10. Install outer fixing plate (E) and nut (D). Tighten nut (D) firmly, counterclockwise (CCW).

  • Page 27: Troubleshooting

    edefineR peRatOR anual roubleshootIng r o t r o t i a r i l l r o t r e l i l y i l y r o t r e l f f u r e l h t i r u t r / n...

  • Page 28: Storage

    torage warning During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (over 30 days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte- nance which includes the following: 1.

  • Page 29: Specifications

    MODEL ---------------------------------------------------- BRD-280 Length ------------------------------------------------------- 1791 mm (70.51 in.) Width -------------------------------------------------------- 280 mm (11.02 in.) Height ------------------------------------------------------- 300 mm (11.81 in.) Weight (dry w/cutter head) ------------------------------ 8.16 kg (18 lb.) Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine Bore ---------------------------------------------------------- 34.0 mm (1.34 in.)

  • Page 30: Warranty Statements

    The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the operator’s manual. Should a product difficulty occur, you must, at your expense, deliver or ship your ECHO unit to an authorized ECHO servicing dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been made.
  • Page 31 89 octane or higher. Gasohol which contains a maximum 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual.
  • Page 32 HOW WILL A COVERED PART BE CORRECTED? If there is a defect in a part covered by this warranty, any ECHO Inc. Authorized Service Dealer will correct the defect. You will not have to pay anything to have the part adjusted, repaired or replaced. This includes any labor and diagnosis for warranted repairs performed by the dealer. In addition, engine parts not expressly covered under this warranty but whose failure is a result of a failure of a covered part will be warranted.
  • Page 33 edefineR peRatOR anual notes...
  • Page 34 notes...
  • Page 35 edefineR peRatOR anual notes...

  • Page 36: Servicing Information

    ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information. safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video. ECHO, INCORPORATED...
