EAW BH862 Technical Specifications

DESCRIPTION

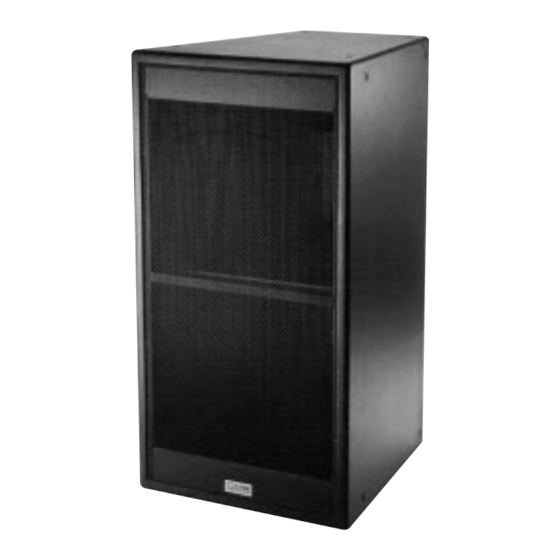

A dedicated Virtual Array low frequency module. Includes 2x
horn-loaded 15-in woofers in a trapezoidal enclosure.
APPLICATIONS
The BH862 uses LF horn loading for increased output and
extended pattern control. It is the same height as the MH662
mid/high Virtual Array module letting the two work together
in large format arrays. Six year warranty.
Applications include:
Stadium
Arenas
Concert Halls
Large HOW's
Dance Clubs
DESCRIPTIVE DATA
Part Number 999091
Product Group M
Components & Loading 2x 15-in Horn Loaded Cone
System Configuration Dedicated LF Horn
Recommended High-Pass
Frequency (24 dB/Octave) 65Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip and 1x
Neutrik NL4 Speakon
Suspension Hardware (18) 3/8"-16 Threaded Mounting/
Suspension Points (5 on bottom, 4
each top and sides, 1 back)
Grill Vinyl Coated Perforated Steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# BH862 999091 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS BH862
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
Shipping Weight
3 db 90Hz to 300Hz
-10 dB 65Hz
105
4
AES Standard 2000
Peak 144
Long Term 138
Horizontal 150
Vertical 150
inches millimeters
Height 48.63 1235
Width 26.38 670
Width (Front) 26.38 670
Width (Rear) 16.5 419
Depth 29.5 749
pounds kilograms
Net Weight 212 95
226 101
