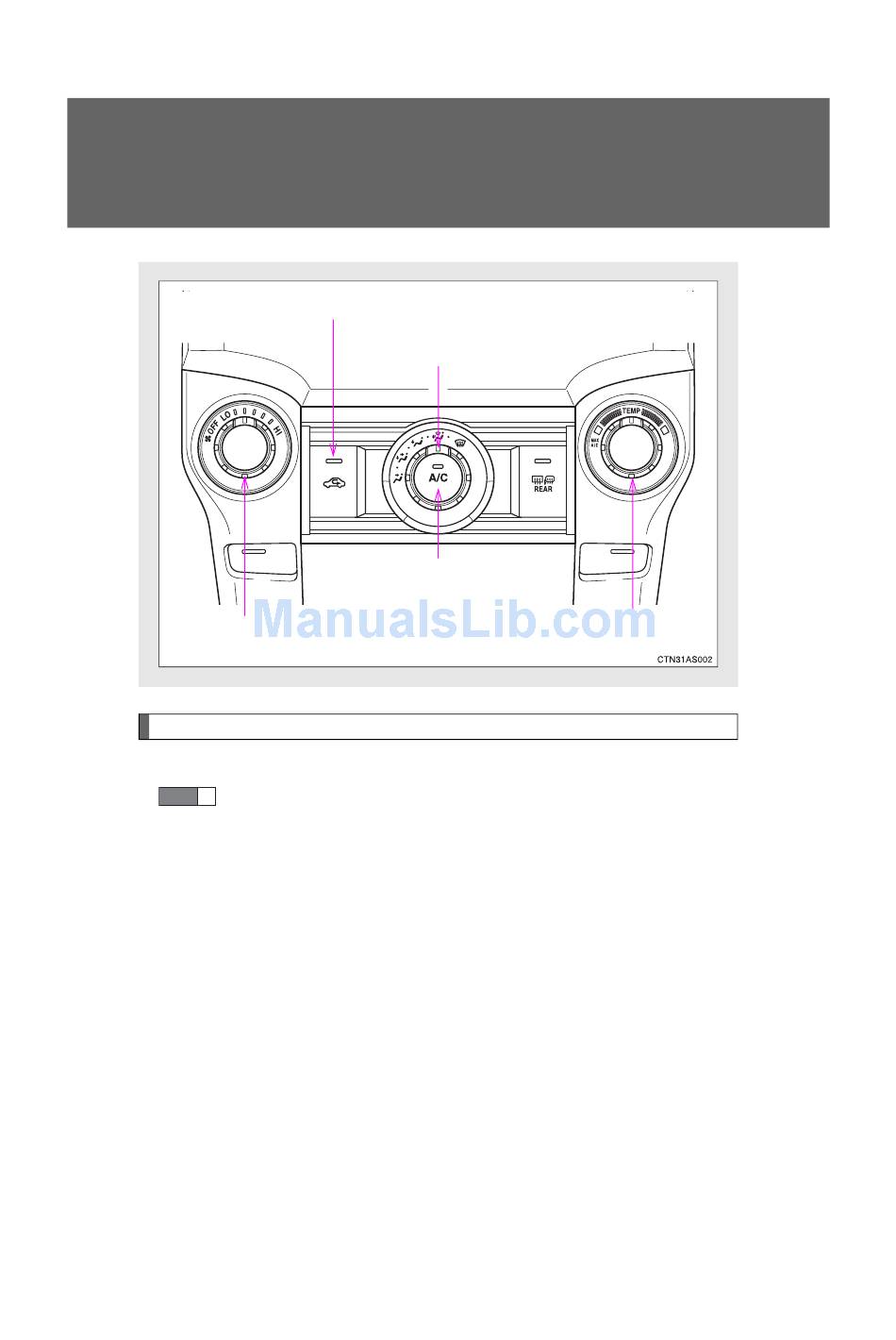

3-1. Using the air conditioning system and defogger
Manual air conditioning system
Outside/recirculated air mode button
Fan speed control knob
Adjusting the settings
■
Basic setting
STEP
1
To turn on the air conditioning system and adjust the fan
speed, turn the fan speed control knob clockwise (increase) or
counterclockwise (decrease).
Turning the knob to "OFF" turns off the fan.
316
4RUNNER_U
Air outlet selector knob
Cooling and dehumidification
function on/off button
∗
Temperature control knob
∗
: If equipped
