CAUTION! The screw of the strap button can loosen due to repeated removal and tighten-
ing or strong pressure on the bracket.

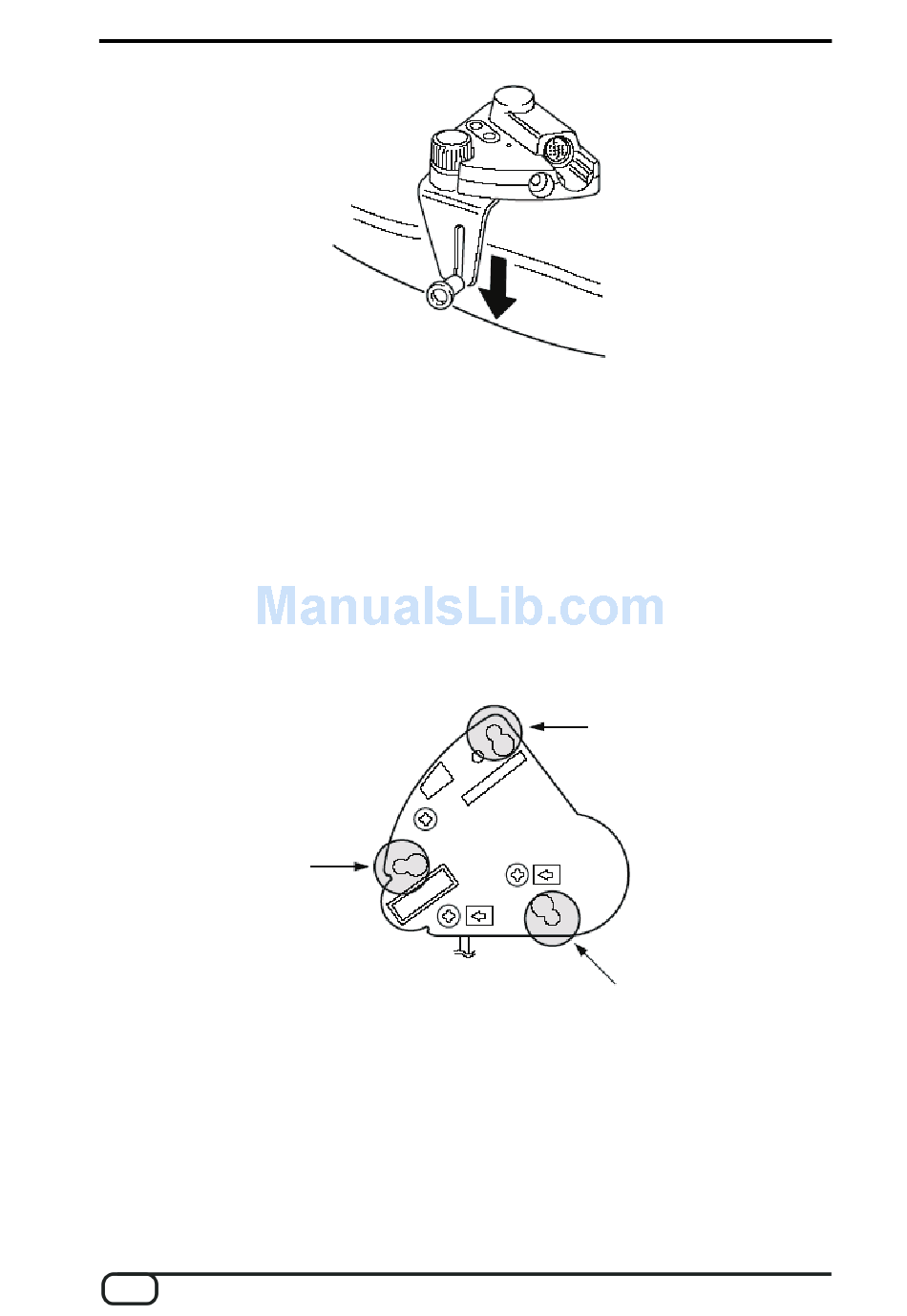

Mounting with suction cups

The included suction cups are an especially convenient mounting method and a com-
pletely adequate alternative for instruments with a glossy finish. Attach the suction cups to
the controller by inserting the noses of the cups into the wider section of the cutouts on
the underside of the controller, then pressing them into the narrow section until they are
firmly seated. Ensure that the mounting surface on the body is free of dust or dirt, and
press the suction cups onto the top of the instrument. To release the suction cups, simply
lift them slightly at the edge.

Installing the pickup

Once you have mounted the controller to your instrument, attach the AIX 101/103 pickup
with double-sided tape, screws or mounting plates (AIX 103 only). Although adhesive tape
is the most convenient method, we recommend screws, as these provide better seating
and permit the height of the pickup to be adjusted. Regardless of the mounting method,
the optimal position of the pickup must be determined first.
