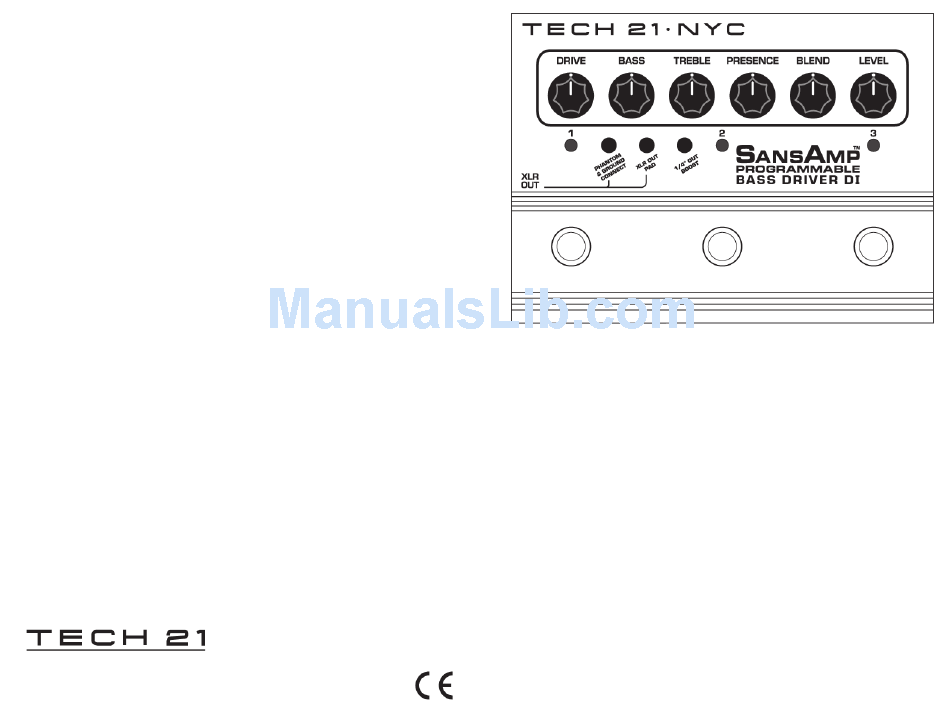

Tech 21 NYC Owner's Manual

POWER REQUIREMENTS
*
Operable with phantom power supply, minimum 24V DC regulated, however, 48V DC regulated is
recommended in order to illuminate LED.
* Utilizes standard 9V alkaline battery (not included).To install, simply remove door cover. (NOTE:
The Input activates battery.To conserve energy, unplug when not in use.) Power Consumption:
approx. 5mA.
*USE DC POWER SUPPLY ONLY!
Failure to do so may damage the
unit and void warranty. DC Power Supply Specifications:
-9V DC regulated or unregulated, 100mA minimum;
-2.1mm female plug, center negative (-).
Optional factory power supply is available:Tech 21 Model
WARNINGS:
* Attempting to repair unit is not recommended and may void warranty.
* Missing or altered serial numbers automatically void warranty. For your own protection: be sure
serial number labels on the unit's back plate and exterior box are intact, and return your warranty
registration card.
ONE YEAR LIMITED WARRANTY. PROOF OF PURCHASE REQUIRED. Manufacturer
warrants unit to be free from defects in materials and workmanship for one (1) year from date of
purchase to the original purchaser and is not transferable.Warranty does not include damage result-
ing from accident, misuse, abuse, alteration, or incorrect current or voltage. If unit becomes defective
within warranty period,Tech 21 will elect to repair or replace it at no cost. After expiration,Tech 21
will repair unit for a fee.
ALL REPAIRS for residents of U.S. and Canada: Call Tech 21 for Return Authorization Number.
Manufacturer will not accept packages without prior authorization, pre-paid freight (UPS preferred)
and proper insurance.
FOR PERSONAL ASSISTANCE & SERVICE:
Contact Tech 21 weekdays from 9:00 AM to 5:00 PM, EST.
DESIGNED AND MANUFACTURED IN THE U.S.A.
T: 973-777-6996
E: info@tech21nyc.com
W: www.tech21nyc.com
© 2005
#
DC2.
OWNER'S MANUAL
