Esoteric A-80 Owner's Manual
Monaural power amplifier
Hide thumbs
Also See for Esoteric A-80:
- Specifications (2 pages) ,
- Product comparisons (1 page) ,
- Product comparisons (1 page)
Subscribe to Our Youtube Channel
Related Manuals for Esoteric Esoteric A-80
Summary of Contents for Esoteric Esoteric A-80
- Page 1 D01012321B A - 80 Monaural Power Amplifier OWNER’S MANUAL ....MANUEL DU PROPRIÉTAIRE . . . BEDIENUNGSANLEITUNG ..
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- 3) Heed all warnings. SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 4) Follow all instructions. - Page 3 < IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, Left and Right Panels: 20 cm (8”) CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE Rear Panel: 10 cm (4”) PRODUCT UNTIL IT HAS BEEN REPAIRED.
-
Page 4: Table Of Contents
For European customers Contents Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is Thank you for choosing Esoteric. Read this manual attached to a product it means the product is carefully to get the best performance from this unit. covered European Directive... -
Page 5: Before Use

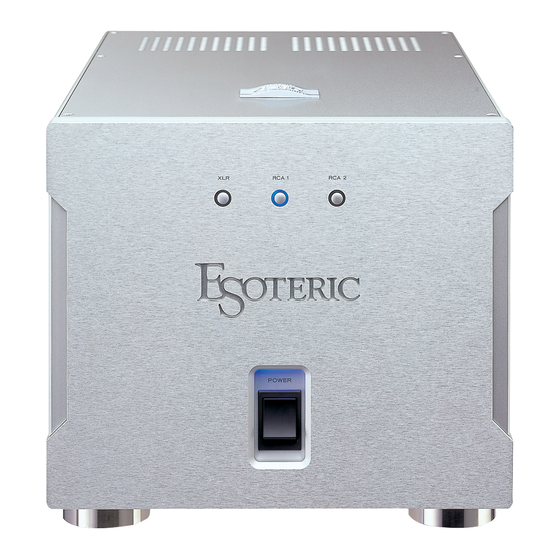

Before use Front panel features Read this before operation < Place the unit in a stable location near the stereo system that you will use. < Be careful to avoid injury when moving the unit due to its weight. Get someone to help you if necessary. <... -
Page 6: Rear Panel Features
Rear panel features SPEAKER terminals RCA input terminals Connect the unit’s + terminal to the speaker’s + terminal, XLR input terminal and the unit’s – terminal to the speaker’s – terminal. This unit has two sets of speaker terminals. The two sets of Connect these terminals to preamplifier using commercially speakers can be played simultaneously or biwiring available RCA audio cables (RCA 1 /RCA 2 terminals) or... -
Page 7: Speaker Connection
Speaker connection About the speaker terminal SIGNAL GND connection When your speaker cable is bare wire: Use a commercially available PVC-covered cord to connect Twist the strands of the stripped wires tightly together. the signal ground terminal on the unit to the player's signal ground. -
Page 8: Connection Example
Connection example This is an example of biwiring speaker connections. CAUTION: < Switch off the power to all equipment before making connection. < Read the instructions of each component you intend to use with this unit. Preamplifier etc. PREOUT Connect one or a pair of these cables. -
Page 9: Troubleshooting
Troubleshooting Specifications If you experience any problem with this unit, please take the General time to look through this chart and see if you can solve the Power supply problem yourself before calling your dealer. Europe model..... AC 230 V, 50 Hz U.S.A./Canada model . - Page 10 250mm 430mm 219mm...
- Page 12 TEAC ESOTERIC COMPANY 1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan Fax: (042) 356-9240 e-mail: eso-os@tec.teac.co.jp TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 e-mail: esoteric_info@teac.com TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A.
