Esoteric A-100 Specifications

Cutting Edge Tube Technology from ESOTERIC
New Product Information

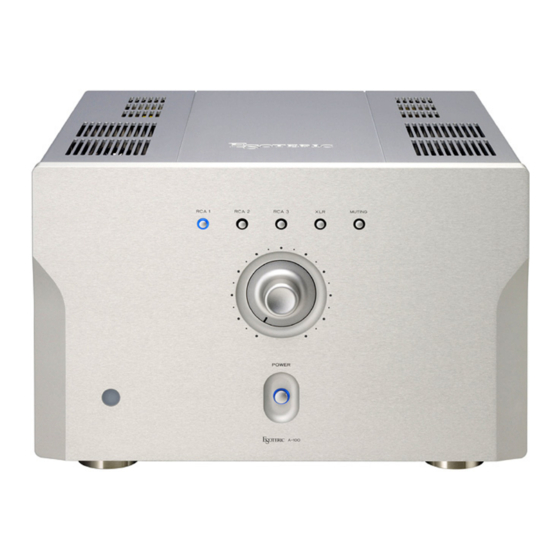

Stereo Tube Power Amplifier
ESOTERIC is proud to introduce a stereo tube power
amplifier incorporating exceptionally high quality and "cutting
edge," tube technology.
The A-100 provides 45W / ch output power from KT-88's in
UL-Push / Pull operation driven with a direct coupled
cathode follower. The cathode follower and voltage
amplification stage is directly coupled to form a triple stage
by combining a unique and active bias circuit.
The A-100 is truly an innovation leading conventional tube
technologies to the "Next level!"
Directly-coupled triple stages
-
The DC voltage control circuit ensures stable operation
of the directly-coupled
amplification stage, cathode follower stage, and output
stage), achieving a truly involving acoustic expression
from the A-100.
Unique active bias circuit
-
The A-100 features a unique and advanced active bias
circuit. This circuit compensates the bias voltage
supplied to the output stage, detecting the cathode
current and the driving level. High linearity and superior
performance of the output stage is achieved by optimal
bias voltage control from this new design.
Custom output transformer
-
The A-100 features a newly
designed custom
transformer achieving highly
delicate and precise musicality.
The amplifier uses specially
treated dual layer foil (copper
and silver), as the 2
coil. This design provides very
tight coupling properties
st
between the 1 order coil.

/ Integrated Amplifier

A-100
Model
triple stages (voltage
output
nd
order
