Summary of Contents for TC Electronic ROTTWEILER

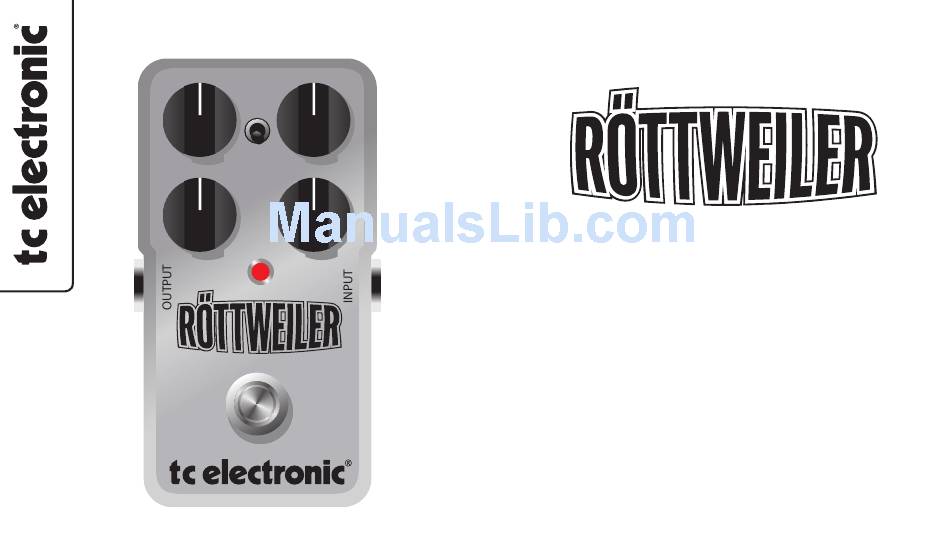

- Page 1 GAIN LEVEL VOICE BASS TREBLE DISTORTION true bypass USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions Warning! • To reduce the risk of fire or electrical shock, do not 1 Read these instructions. expose this equipment to dripping or splashing and ensure 2 Keep these instructions. that no objects filled with liquids, such as vases, are 3 Heed all warnings. placed on the equipment. 4 Follow all instructions. - Page 3 These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and – if not installed and used in accordance with the instructions – may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 4: (En) Introduction
(EN) Introduction Röttweiler Distortion goes the extra mile and delivers an unparalleled sound that will inspire you to riff for days. The all-analog design gives you a unique distortion circuit based on soft clipping – just like real tube amps – for an extremely authentic response and tone. Now, you can get that bone-crushing sound through virtually any amp. Röttweiler Distortion is voiced to burn through any mix. Typically, hi-gain pedals sound great on their own, but once the band starts playing, they become less convincing. - Page 5 GAIN LEVEL 1 - Effect on/off (true bypass) VOICE 2 - 1/4 inch mono jack input 3 - 1/4 inch mono jack output BASS TREBLE 4 - Bass control 5 - Treble control 6 - Gain control 7 - Level control 8 - Voice selector DISTORTION true...
- Page 6 Connecting Input jack – 1/4 inch mono jack input. If you run the pedal on battery, we recommend removing the input jack to preserve battery power when you don’t play. Output jack – 1/4 inch mono jack output for connecting to another pedal or directly into an amp or mixer.
-
Page 7: Bass & Treble
The Controls BASS & TREBLE Bass/treble controls. Add bass for more punch or roll off a bit for a tighter sound on big cabinets. Add treble to cut through a dense mix or reduce to aim for a softer tone. GAIN Controls the amount of gain. The range goes from medium metal drive to full punchy cutting metal sounds. Try a medium gain-settings with a crunch amp-channel. LEVEL Sets the overall level. Voice Type selector Try out the two Voices, - one position scoops midrange for thrash-, death- and black-metal style sounds. Perfect for metal rhythm riffs. The other position is EQ’ed more evenly and allows solo-lines to cut better through the mix. - Page 8 Changing battery – Unscrew the thumb-screw on the back of the pedal and detach the back-plate. Unmount the old battery and attach the new battery to the battery clip making sure the polarity is correct. Then remount the back-plate. To save battery life, remove the input jack when you don’t play. Batteries must never be heated, taken apart or thrown into fire or water. Only rechargeable batteries can be recharged.
- Page 9 (EN) Technical Specifications Sounds Unique distortion circuit with classic tube-amp characteristics: high headroom, low compression and amazing bottom-end Touch sensitive – control tone and distortion level by pick attack and your guitars volume knob Two-band active EQ with separate bass and treble controls Voice switch for vintage or modern voicing Size & Weight 72 mm x 122 mm x 50 mm - 300 g (excl. battery) Battery 16mA current draw Non-stop playing Carbon: 6.5 hours, Alkaline: 25 hours. These figures will vary depending on the actual conditions of use.
- Page 10 TC Electronic, Sindalsvej 34, DK-8240 Risskov info@tcelectronic.com...
