Schematics for some amps are available at
www.tcelectronic.com. If you cannot find your
amp type there, please contact the manufacturer
of your amp.

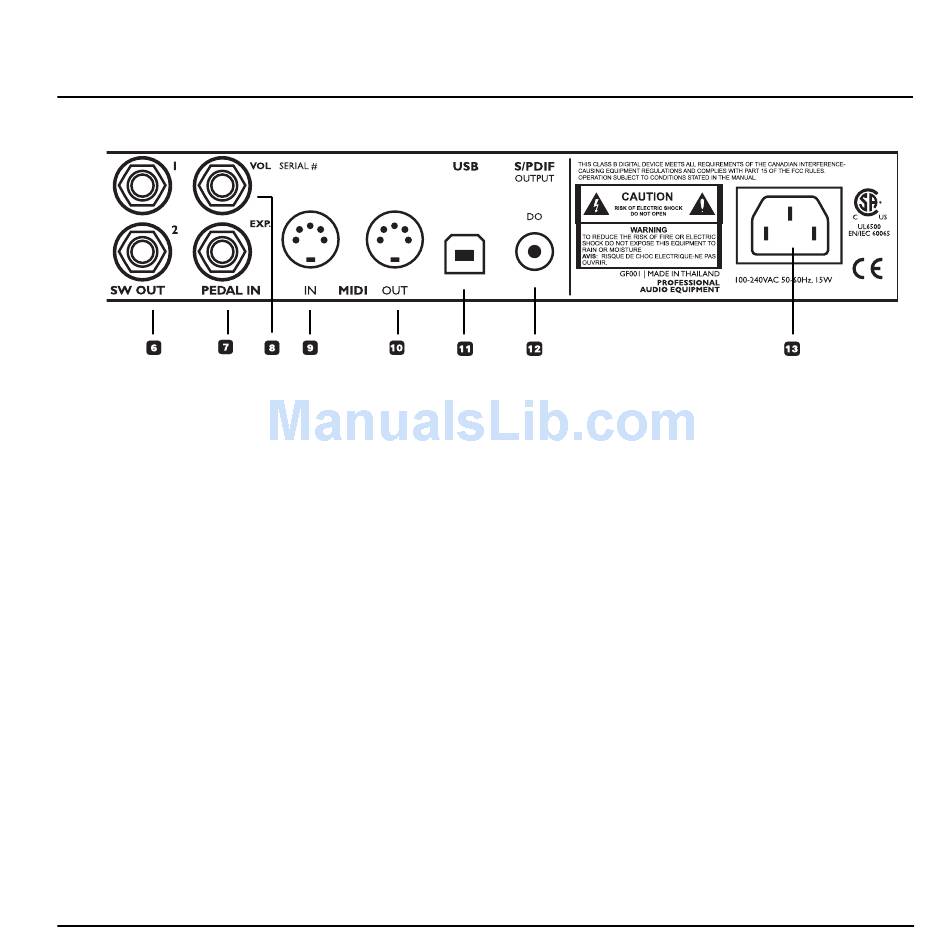

7 Pedal In – Exp. (Expression)
Connector for an expression pedal to control e.g.
pitch in a whammy effect.
8 Pedal In – Vol (Volume)
Connector for an expression pedal.
A connected expression pedal will per default
control the Input Gain parameter.
9 MIDI IN
On the MIDI IN port, the G-System can receive
MIDI information such as MIDI Program Change
messages (for preset changes) and Continuous
Controllers (MIDI CCs). You can use these to
remote-control G-System parameters.
10 MIDI OUT
The G-System sends out MIDI Program Change
messages when a preset is recalled.
11 USB
Use the USB port to update the G-System's
software from a computer.
12 S/PDIF – Digital Out
Digital output, e.g. for feeding a digital audio
recorder.
13 Power Input
The G-System's switch mode power-supply
accepts from 100 to 240 Volts AC.
