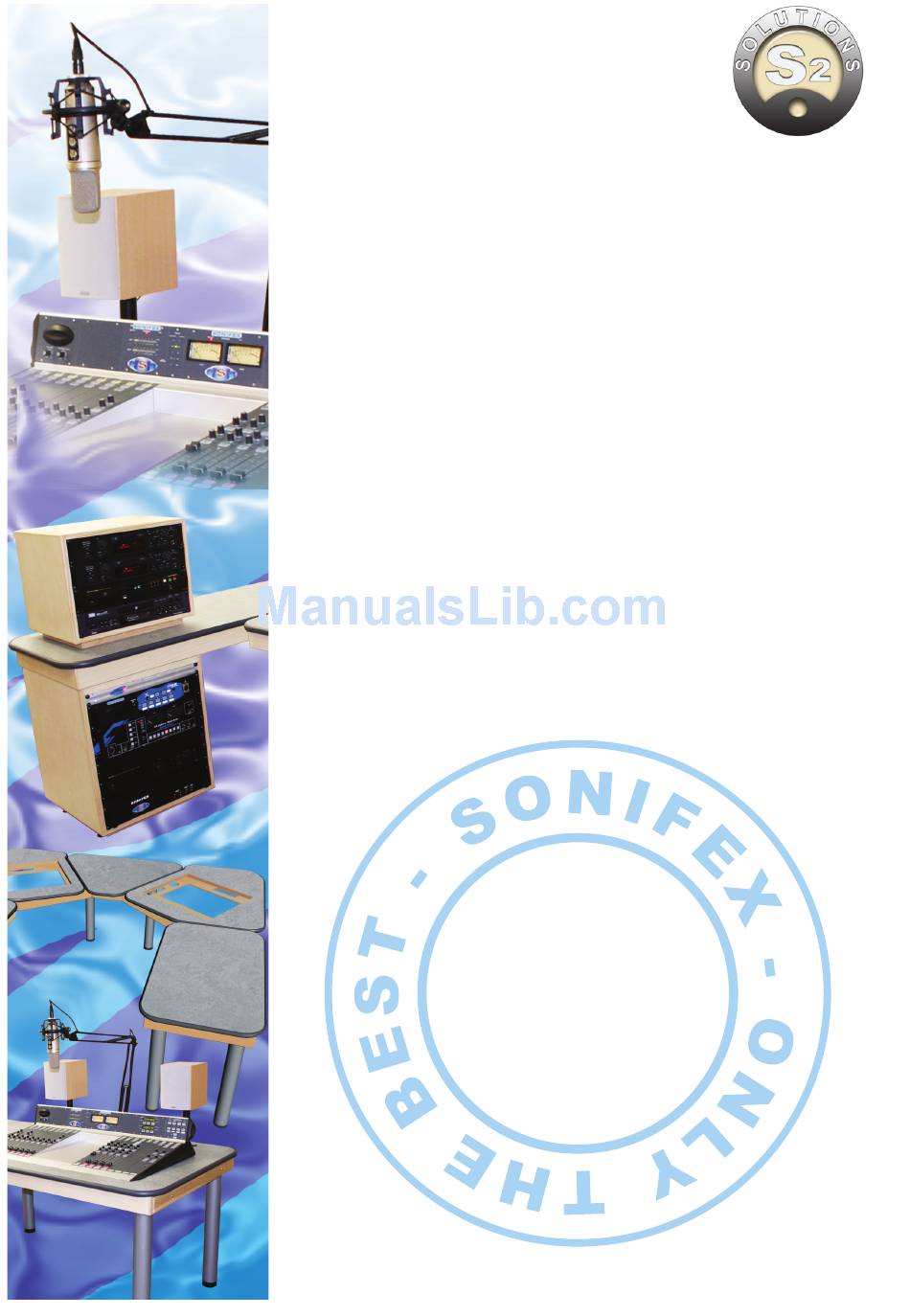

- Page 1 S2 Solutions Furniture User Handbook...
- Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
-
Page 3: Table Of Contents
Fitting the SOL-D8, or SOL-D12 Desk Top 19” Rack Fitting the Optional SOL-T12 Top 19” Rack Fitting the SOL-CVR80 Desk End Cover Panel Assembling U-Shaped S2 Solutions Single Mixer Furniture S2 Solutions Single Mixer Furniture Full Assembly S2 Solutions Split Mixer Furniture Installation... - Page 4 FIGURES Figures Fig 1: S2 Solutions Single Mixer L Shaped Furniture, Viewed From Above Fig 2a: SOL-MB1300 or SOL-MB1500 and SOL-SB1600 assembly Fig 2b: SOL-B12 support base 19” rack attachment Fig 3: Detail of adjustable feet on SOL-B12 support base 19” rack and the SOL-LGG80 Fig 4: Fitting the Optional SOL-T12 Top 19”...
-
Page 5: Warranty
Company, its employees (whilst in the course of their employment) or its agents (in the course of the agency); S2 Solutions Furniture User Handbook... -
Page 6: Unpacking The S2 Solutions
In order to register the date of purchase so that we can keep you informed of any design improvements or modifications, it is important to complete the warranty registration document that is enclosed and return it to Sonifex Ltd in the UK, or register online at www.sonifex.co.uk/register... -
Page 7: Safety Information
“end of use” can be returned to Sonifex and will be reprocessed correctly free of charge. Sonifex Ltd is in the process of phasing out the use of certain hazardous substances identified in the European Union’s Restriction of Hazardous Substances (RoHS) directive. - Page 8 RoHS compliant. Sonifex Ltd relies solely on the distributor, or manufacturer, of the components for identification of RoHS compliance. Thus whilst every effort is made to ensure compliance, Sonifex Ltd makes no warranty, or certification, or declaration of compliance concerning said components.
-
Page 9: Introduction
Please read this document thoroughly before you start to install the furniture. The Sonifex S2 Solutions can also be purchased as a fully featured, low price radio studio package, which is complete in every detail. The packages are centred around the Sonifex S2 mixing console, set in custom technical furniture. - Page 10 Make sure that you have the following tools available to assemble the furniture : • No.2 Pozi-drive screwdriver. • A socket set with a 13mm driver. • A 13mm open ended spanner. • A medium length spirit level. S2 Solutions Furniture User Handbook...
-
Page 11: S2 Solutions Single Mixer Furniture Installation
FURNITURE UNSTALLATION 2 S2 Solutions Single Mixer Furniture Installation Your S2 Solutions package should arrive boxed or wrapped. Check the condition of the boxes, packaging and woodwork and if any damage is evident report this to the carrier before signing for the packages. Also report any damage immediately to Sonifex Ltd. -
Page 12: Fitting The Main Sol-Mb1300 Or Sol-Mb1500 Mixer Desk Top To The Sol-Sb1600 Side Work-Surface
Move these items by lifting the work surfaces, i.e. not by dragging along the floor. • Move the SOL-B12 support base 19” rack into position underneath the work surfaces. S2 Solutions Furniture User Handbook... -
Page 13: Fig 2A: Sol-Mb1300 Or Sol-Mb1500 And Sol-Sb1600 Assembly
Desk end cover panel Bolt Joint box positions SOL-SB1600 Side return work surface Fig 2a : SOL-MB1300 or SOL-MB1500 and SOL-SB1600 assembly. SOL-B12 Support Base 19” rack Fig 2b : SOL-B12 support base 19” rack attachment. S2 Solutions Furniture User Handbook... -
Page 14: Adjusting The Height Of The Furniture
19” rack, you will need to cut an access hole through the top of the SOL-SB1600 side work surface to allow the cables to be fed through to the other equipment. This can be pre-cut by Sonifex when ordered as a SOL-CVRC, if a location is supplied when ordering. Fitting the Optional SOL-T12 Top 19” Rack Two black angled metal legs are used to support the SOL-T12 top 19”... -
Page 15: Fitting The Sol-Cvr80 Desk End Cover Panel
SOL-MB1300 or SOL-MB1500 mixer desk top. The SOL-CVR80 Desk end cover panel should be fitted to cover the remaining access hole in the SOL-SB1600 Side return. Your S2 Solutions Single Mixer furniture should now be successfully fitted together. S2 Solutions Furniture User Handbook... -
Page 16: S2 Solutions Single Mixer Furniture Full Assembly
S2 SOLUTIONS SINGLE MIXER FURNITURE UNSTALLATION S2 Solutions Single Mixer Furniture Full Assembly Top view Side view S2 mixer cut-out 1600 1500 Fig 5 : S2 Solutions Single Mixer Furniture Full Assembly (Dims in mm). S2 Solutions Furniture User Handbook... -
Page 17: S2 Solutions Split Mixer Furniture Installation
FURNITURE INSTALLATION 3 S2 Solutions Split Mixer Furniture Installation Your S2 Solutions package should arrive boxed or wrapped. Check the condition of the boxes, packaging and woodwork and if any damage is evident report this to the carrier before signing for the packages. Also report any damage immediately to Sonifex Ltd. -
Page 18: Assembly Of The Sol-Mbr, Sol-Mbl And The Sol-Mbc Mixer Work-Surfaces
Bolt positions Fig 7 : S2 Solutions Split Mixer Work Surface Assembly. Fitting the SOL-SB1000 Side Work-Surfaces The SOL-SB1000 side returns can each be supported either by 2 x SOL-LGG80 80mm silver/ grey round table legs, or by the SOL-B12 12U support base 19” rack, depending on what you have ordered. -
Page 19: Fig 8: Fitting Sol-Lgg80 Legs To The Sol-Sb1000 Side Return
M8 x 140mm bolts, four large flat washers and two M8 nuts. The bolts are inserted through the SOL-SB1000 side return, the joint box and through the LH and RH mixer corner desk tops. S2 Solutions Furniture User Handbook... -
Page 20: Fitting The Sol-D8, Or Sol-D12 Desk Top 19" Rack
19” rack, you will need to cut an access hole through the top of the SOL-SB1000 side work surface to allow the cables to be fed through to the other equipment. This can be pre-cut by Sonifex when ordered as a SOL-CVRC, if a location is supplied when ordering. Fitting the Optional SOL-T12 Top 19” Rack Two black angled metal legs are used to support the SOL-T12 top-pod on the side work- surface. -
Page 21: Fig 10: Fitting The Optional Sol-T12 Top 19" Rack
Black angled metal legs SOL-SB1600 SOL-B12 Side return Support base work surface 19” rack Fig 10: Fitting the Optional SOL-T12 Top 19” rack. Your S2 Solutions Split Mixer furniture should now be successfully fitted together. S2 Solutions Furniture User Handbook... -
Page 22: S2 Solutions Split Mixer Furniture Full Assembly
FURNITURE INSTALLATION S2 Solutions Split Mixer Furniture Full Assembly 2000 1000 S2 mixer cut-out 2200 Side View Top View 1000 S2 mixer cut-out Fig 11 : S2 Solutions Split Mixer Furniture Full Assembly (Dims in mm). S2 Solutions Furniture User Handbook... - Page 23 S2 SOLUTIONS FURNITURE USER HANDBOOK S2 Solutions Furniture User Handbook...
- Page 24 w w w . s o n i f e x . c o . u k t:+44 (0)1933 650 700 f:+44 (0)1933 650 726 s a l e s @ s o n i fe x . co. u k...
