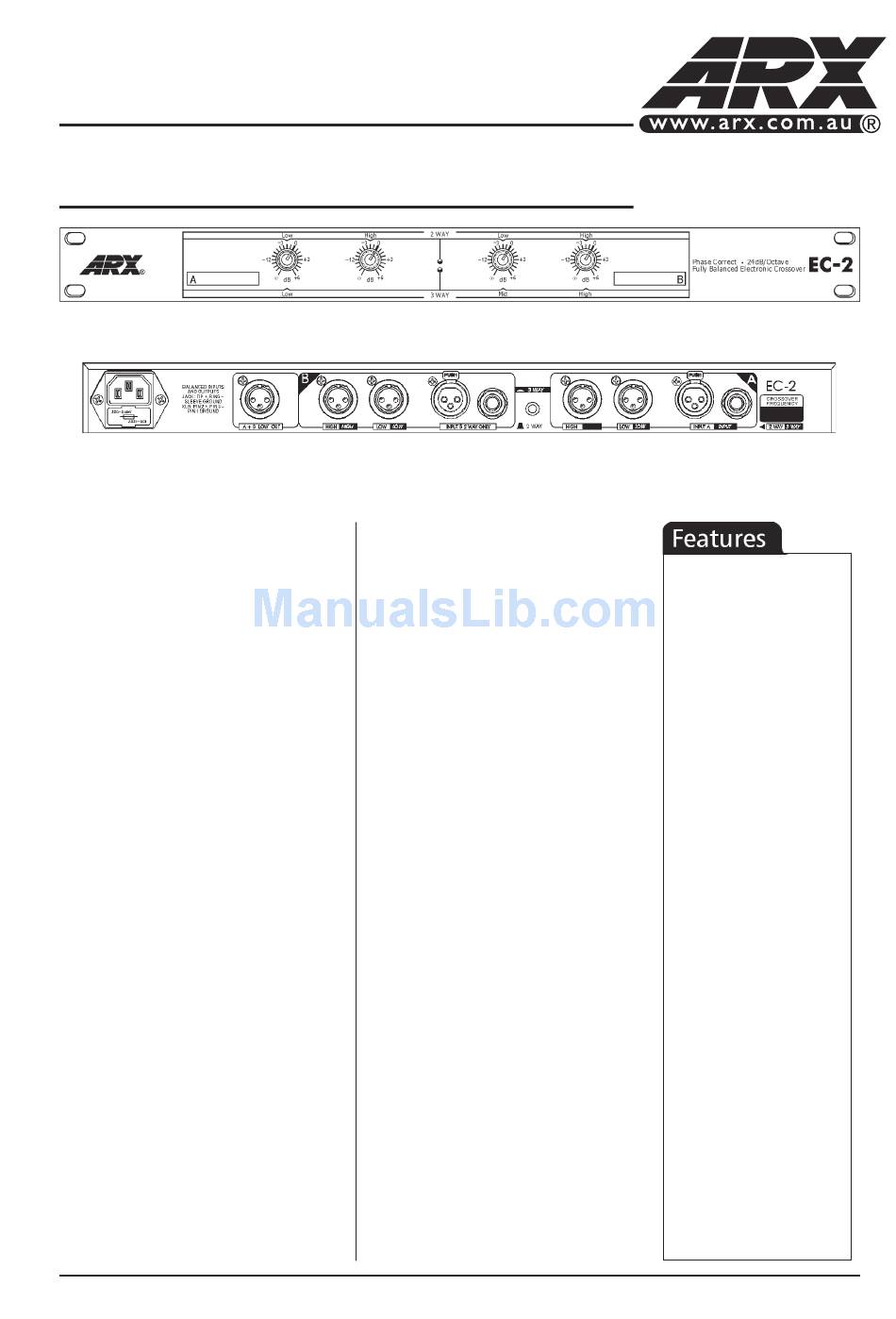

EC-2
Stereo 2 way, Mono 3 way
24dB Electronic Crossover
The ARX EC-2 is a flexible, affordable 24
dB per octave Phase Correct electronic
crossover.
It has 2 modes of operation; as either a
Stereo 2 way or a Mono 3 way unit, with a
switch on the back panel selecting either
mode.
• Tamper-Proof Crossover Points
The crossover points are determined in-
ternally by the value of 4 resistors per
channel; changing the resistor value
changes the crossover point. This 'semi
fixed' method avoids the pitfalls of exter-
nally adjusted crossover points, making
the crossover points tamper-proof once
they are set.
As a handy guide, a list of common cross-
over points and their corresponding resis-
tor values are printed inside the unit's lid,
and also set out in the Owner's Manual.
On the front panel are level controls for
Low and High in dual channel 2 way
mode, and Low, Mid and High in single
channel 3 way mode, with corresponding
Outputs on the rear panel.
• Balanced Inputs and Outputs
The EC-2 Balanced Inputs and outputs on
XLR connectors. It also has an additional
summed Mono Low output, for applica-
tions that need a Mono Low feed (e.g. Left
and Right full-range plus a single Sub
Bass speaker).
• High Pass Filter
There is a preset 30 Hz HighPass filter to
remove unwanted subsonics which can
damage speakers and waste amplifier
power.
In addition, each output has up to +6
dB of gain available, to compensate for
amplifiers and speakers of differing sen-
sitivities.
• Universal AC Power
AC power range is a universal 100 to
120V or 220 to 240VAC, and is connect-
ed to the unit via a standard IEC con-
nector, with built-in fuse and voltage
change switch.
• Uncompromising Audio Quality
Innovative circuit design is pointless un-
less it delivers stunning sound quality,
and here the EC-2 excels. It has been
designed to provide uncompromising
audio quality, and to achieve this, Link-
witz Riley 24dB (Fourth Order) state var-
iable filters are used throughout the cir-
cuitry. This ensures a smooth Phase
Correct transition through the crossover
region.
From Stage Monitors to Studio Monitors,
from Front of House to the Front room
of your House, the EC-2 is a crossover
that is suited to any application requir-
ing flawless, transparent sound.
