FireWire 2-Port CardBus
Quick Installation Guide

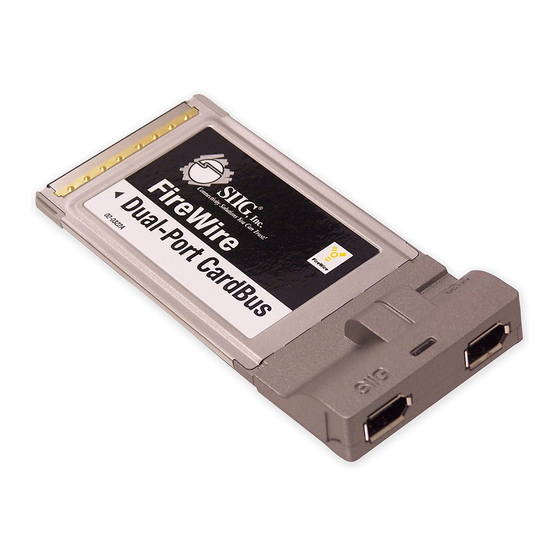

Introducing the FireWire 2-Port CardBus
The FireWire 2-Port CardBus is designed to add FireWire
(1394a) interface to notebook computers for easy
connection to DV camcorders, hard disk drives, scanners,
printers, and other 1394 devices. For your convenience,
a FireWire (1394a) 6-pin/4-pin DV cable is included for
connecting DV camcorders and other 1394 devices using
4-pin connector. Ulead VideoStudio video editing
software is also included for producing greeting cards,
video e-mails, or home videos complete with attractive
titles, effects, and background music.
Features and Benefits
•
Compliant with IEEE 1394-1995, P1394a-2000 and
OHCI 1.1 standards
•
Supports serial bus data transfer rates of 100, 200
and 400Mbps
•
Hot-swapping allows you to connect/detach
devices without first turning your system off
•
Supports both asynchronous and isochronous data
transfer modes
•
Works with a variety of 1394 devices including
digital cameras, DV camcorders (Sharp, Sony,
Panasonic, JVC, Cannon and other brands), portable
hard disks, CD-RW/DVD-ROMs, printers and other
audio/video devices
04-0214G
1
Advertisement
Table of Contents
Related Manuals for SIIG FireWire 2-Port CardBus
Summary of Contents for SIIG FireWire 2-Port CardBus
- Page 1 FireWire 2-Port CardBus Quick Installation Guide Introducing the FireWire 2-Port CardBus The FireWire 2-Port CardBus is designed to add FireWire (1394a) interface to notebook computers for easy connection to DV camcorders, hard disk drives, scanners, printers, and other 1394 devices. For your convenience,...
- Page 2 1394a Ports Power LED (6-pin) Figure 1. Layout *Note: The power adapter (not included) can be purchased on SIIG's online store. If your FireWire device does not come with it's own power supply, you will need to purchase this power adapter.
-
Page 3: Hardware Installation
Power on your notebook computer. Driver Installation This section will guide you through the installation of your FireWire 2-Port CardBus. Windows 98SE At the Add New Hardware Wizard, click Next. Choose Search for the best driver for your device, and click Next. - Page 4 Click Finish then restart Windows to complete the installation. Windows 2000/XP/Server 2003/Vista Windows 2000, XP, Server 2003 and Vista will automatically detect and install the correct driver for your FireWire 2-Port CardBus. Restart Windows if prompted. To Verify Driver Installation Check Device Manager to verify successful driver installation.
- Page 5 Ulead VideoStudio Software Installation The FireWire 2-Port CardBus includes Ulead VideoStudio DV editing software for producing home videos complete with attractive titles, transitions and sounds. Insert the Ulead VideoStudio DV software CD. Auto- run should start automatically. If not, click Start, Run, type in X:\Autorun.exe or X:\setup.exe, then...
- Page 6 To Verify Successful DV Camcorder Setup Check Device Manager to verify successful installation. Windows 98SE/ME: From the main desktop, right click My Computer, then click Properties. Click Device Manager tab. Windows 2000/XP/Server 2003: Right click My Computer, then click Manage. Click Device Manager.
- Page 7 Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333.
- Page 8 6078 Stewart Avenue Fremont, CA 94538-3152, USA FireWire 2-Port CardBus is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
