2

Built-in Charge Circuitry

2.1

Overview

The charging algorithm and its support circuitry that is built into the GR/GS64 family
of products require a DC-voltage on the CHG_IN signal.
battery connected between VCC and GND of the system connector. The Li-Ion battery
must include a thermistor with one side connected to GND and the other connected to
ADIN1 of the system connector, so that the battery cell temperature can be
monitored.
making the application very flexible.
The CPS for the charger must be a 500mA current limited 4.5V to 6.0V supply with
reversed current protection.
2.1.1

GR/GS64 Charging Block Diagram

All circuitry required to charge a Li-Ion battery is included in the Wireless CPU. Below
is a block diagram that gives a basic view of how it is implemented inside the Wireless
CPU.
Gx64 APPLICATION NOTE
Charging Interface
Page: 7/20
The thermistor temperature curve can be calibrated by the customer,

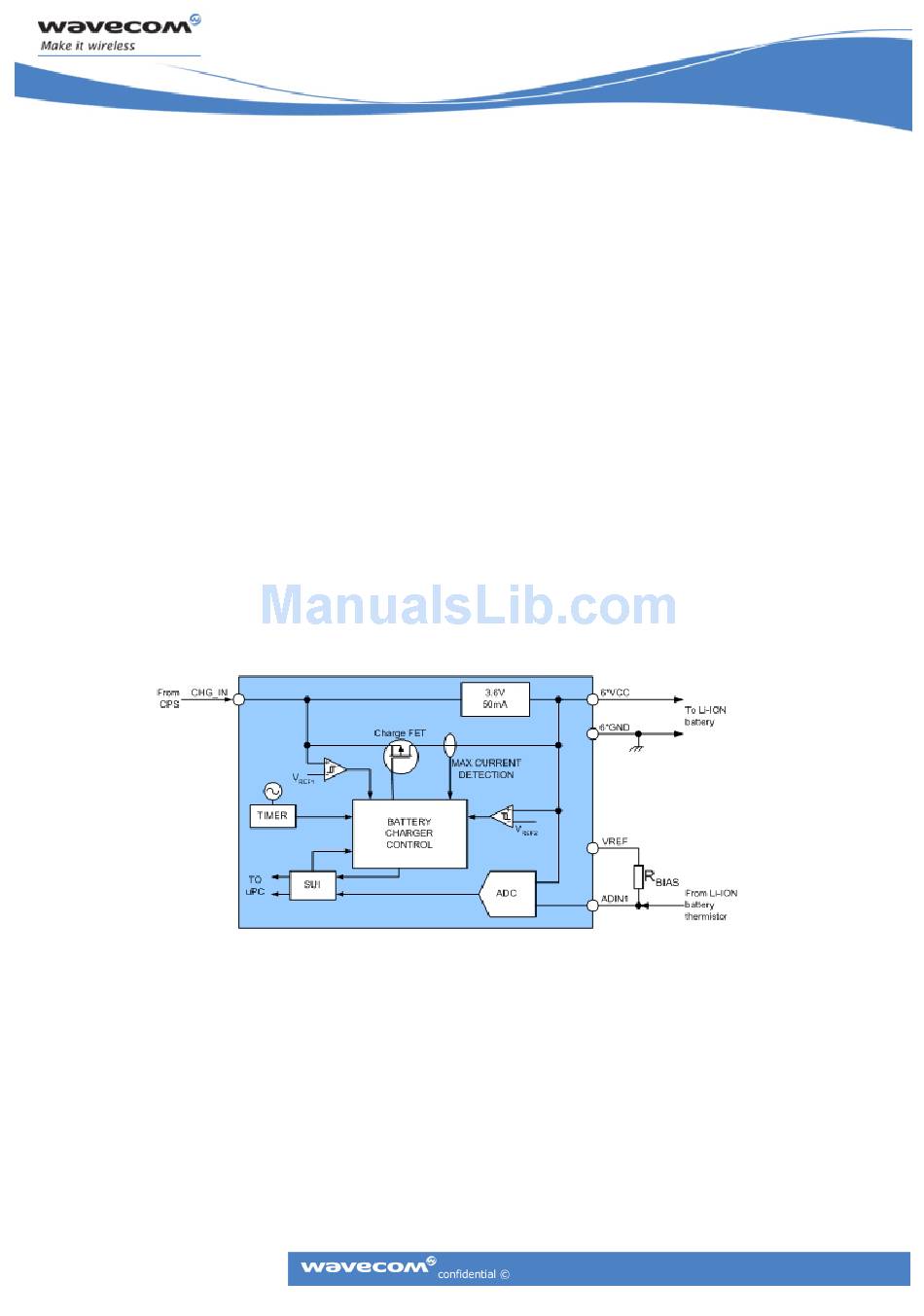

Figure 1. GR/GS64 Charge Circuitry Block Diagram
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.
Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable
It also requires a Li-Ion
