4.1.2

Charging from AC/DC or DC/DC-Adapter

When the LM3658 is accepting charge from the AC/DC or DC/DC-adapter, the "Iset"
pin is used to program the full-rate charge current.
calculated using this equation:
I
CHG
The same AC/DC and DC/DC-adapters as described in 3 Charger Power Supply (CPS)
Reference Designs can be used for this custom charger.
Gx64 APPLICATION NOTE
Charging Interface
Page: 17/20

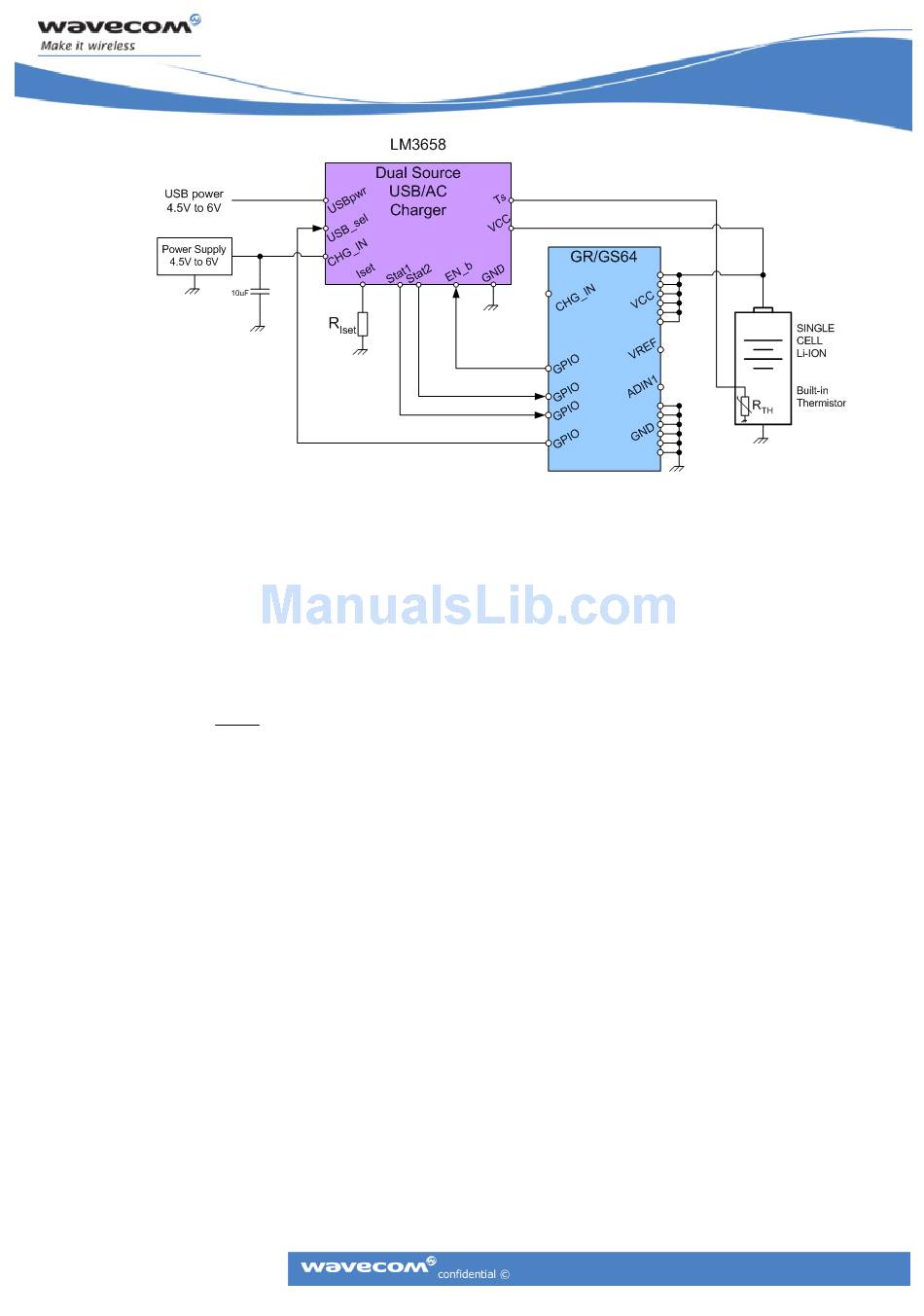

Figure 5. LM3658 Implementation Block Diagram
K
=
ISET
, where K
ISET
R
ISET
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.
Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable
= 2500
The charge current can be
