Summary of Contents for Archos 10

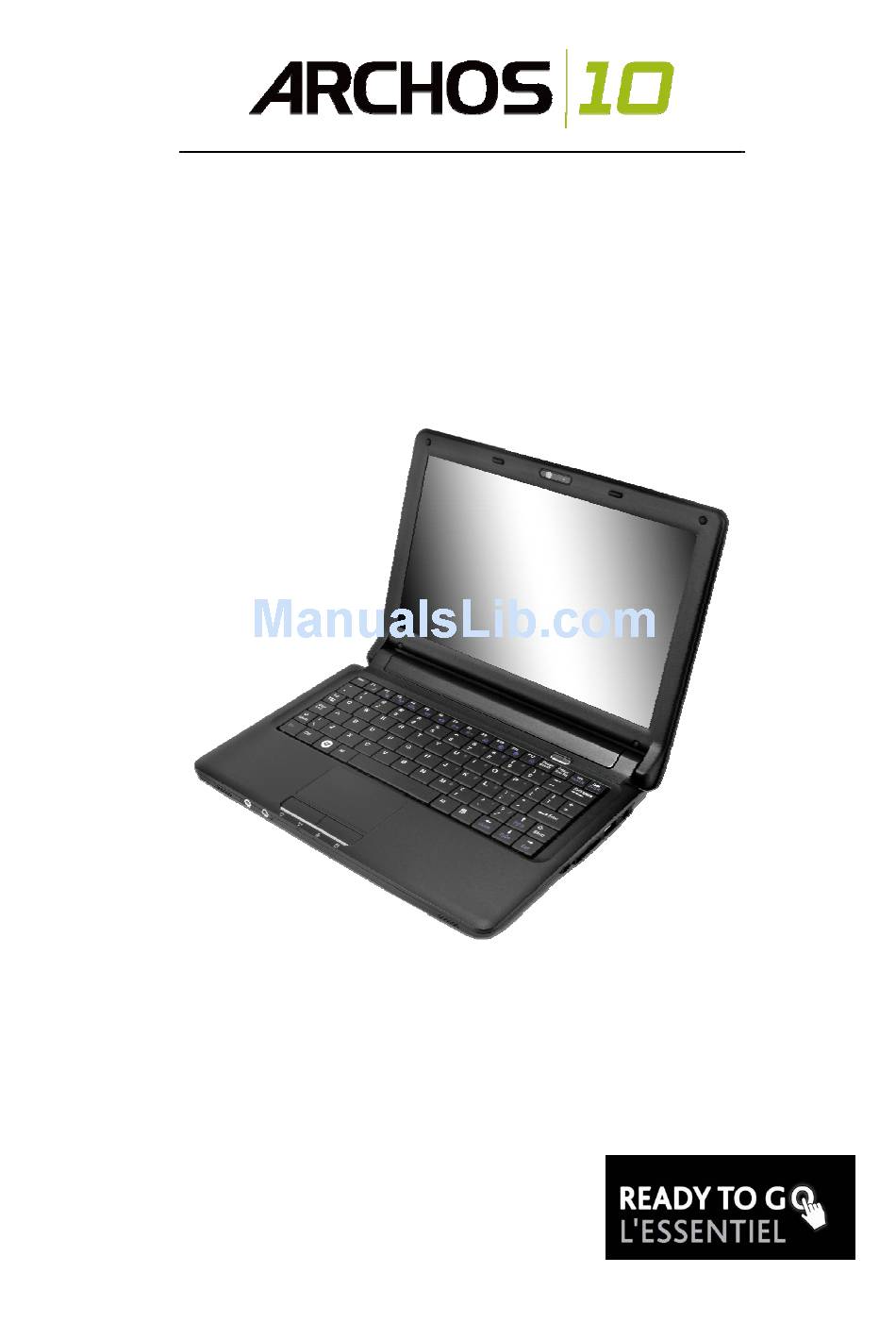

  • Page 1 English User Manual v1.0...
  • Page 2 Preface © Copyright 2008 © All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...
  • Page 3 Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules.
  • Page 4: Table Of Contents

    Table of Content ................2 EFORE YOU TART ..........5 ET YOUR COMPUTER ACCLIMATE ITSELF ............5 UMIDITY LARE ..............6 UITABLE PLACE TO WORK ..................8 NTRODUCTION ..................9 RONT ..................11 IEWS ..................12 IGHT ................15 ETTING TARTED AC A ............15 ONNECTING THE DAPTER :............17 NSTALL THE ATTERY : ............18 EMOVE THE...
  • Page 6: Before You Start

    Use this manual will help you get the most from your notebook computer. If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories. If you are a less experienced user, you should through the manual carefully before using your system.
  • Page 7 Make sure to use the right voltage for the power source when connecting the equipment to the power outlet. Place the power cord in such a way that people can not step on it. Do not place anything on top of the power cord. All cautions and warnings on the equipment should be noted.
  • Page 8 The minimum specifications for the flexible cord are No. 18 AWG, (2) Type SJ, and (3) 3-conductor. For Japan: All components of the cord set must bear a “PSE” or “ T ” mark and registration number in accordance with the Japanese Dentori Law. The minimum specifications for the flexible cord are .75m ㎡...
  • Page 9: Let Your Computer Acclimate Itself

    Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special instructions. Do not use the AC adapter near open water or other liquids. Never spill liquid into the AC adapter.
  • Page 10: Suitable Place To Work

    Try to avoid the computer components from being destroyed if it is over heated, so try to allow plenty of room for air to circulate around the case. Do not block the ventilation opening. Do not place your computer in direct sunlight. Suitable place to work Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be challenging to your...
  • Page 12: Introduction

    Install the battery pack Connecting the AC adapter Turning on your computer...
  • Page 13: Front View

    To avoid damage to the display panel: 1. Try not to slam the display upon closing it. 2. Try not to place any object on top when it is closed or open. 3. Be sure the system is turned off or in suspend mode before you close the display panel.
  • Page 14 Keyboard The keyboard differs for each territory Stereo Headphone Jack Microphone Jack Power/Suspend Button Press momentarily to turn on the system. Press and hold for at least 4 seconds to turn off the system. Press the power/suspend button again to return from the suspend mode.
  • Page 15: Left Views

    Blue light indicates the WLAN/Bluetooth is active. Battery status Charging – Lavender Full – Blue Low - Red Blue light indicates the hard drive and/or optical drive is being accessed. Left Views Ethernet / LAN Port When using a LAN, please use an EMI Shielding Cable to minimize an inteference when transmitting.
  • Page 16: Right View

    CRT Port USB 2.0 Port Ventillation Opening Right View Kensington Lock 4-in-1 Card Reader (SD/MMC/MS/MS Pro Memory Card) USB 2.0 Port DC In...
  • Page 17 Battery Lock Battery Compartment Battery Release Latch...
  • Page 19: Started

    Connecting the AC Adapter A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source: Do not use inferior extension cords as this may result in damage to your notebook.
  • Page 20 Never turn off or reset your notebook while the hard disk is in use status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your notebook before turning it back on;...
  • Page 21: To Install The Battery Pack

    batteries according to the manufacturer’s instructions or local laws. Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben Herstellers. To Install the Battery Pack:...
  • Page 22: To Remove The Battery Pack

    To Remove the Battery Pack: The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.
  • Page 24: Using The Notebook Computer

    The LCD screen display can be adjusted by the following key combinations. Changes Display Mode: LCD-only, CRT-only, LCD/CRT simultaneously - Increases the brightness level. - Decreases the brightness level. LCD Care LCD screens are delicate devices that need careful handling. Please pay attention to the following precautions: When you are not using the computer, keep the LCD screen closed to protect it from dust.
  • Page 25: External Crt Display

    External CRT Display You can hook up an external monitor through the 15-pin CRT connector. Three configurations are available: LCD only CRT only LCD and CRT simultaneously You can switch between these display configurations by pressing the key combination [Fn] + [F4]. ’...
  • Page 26 - Increases the brightness level. - Decreases the brightness level. - Enable/Disable the Touchpad - Mute the system volume - Enters the silent mode - Enable/Disable the camera application The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-sensitive panel of the touchpad and slit it to move the cursor.
  • Page 27: Touchpad Precautions

    TouchPad Precautions The TouchPad is a pressure sensitive device. Please take note of the following precautions. Make sure the TouchPad does not come into contact with dirt, liquids or grease. Do not touch the TouchPad if your fingers are dirty. Do not rest heavy objects on the TouchPad or the TouchPad buttons.
  • Page 28: Preparing The Battery Pack For Use (Battery Calibration)

    If you discover the battery life is getting shorter, please perform the “Battery Calibration” process immediately. To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the Battery Pack. Preparing the Battery Pack for Use (Battery Calibration) Before using the battery pack for the first time, the Smart Battery IC within the battery pack should be calibrated in order to get...
  • Page 29: Battery Status

    Battery Low Warning When the pack initially reaches the “Battery Low” state approximately 7 ~ 10 minutes of the usable battery life is left. You will hear an audible beep signal every 15 seconds alerting you to the “Battery Low” status. When the battery power reaches the “Battery Low Low”...
  • Page 30: Adjusting The Brightness

    Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Never remove the battery pack while the power is on as this may result in data loss when the system loses power.
  • Page 31: Desktop

    Desktop Desktop may vary differently on the software installed in your notebook with different or additional shortcuts. Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”.
  • Page 32 Allows easy access to all Windows programs. The Start menu allows you to adapt and show the programs used most frequently. If you wish to keep an item, right click the item and click Pin to Start menu. Log Off will enable the current user to log off and allows a new user to log on.
  • Page 33 spot on the taskbar, select Toolbars choose the toolbar you want to add. The icons that appear here are for quick access to some programs and computer functions that you frequently used. To prevent Windows Vista from hiding icons: From an empty spot on the Taskbar, right click your mouse and select the Properties, remove the checked mark on the Auto-hide the taskbar.
  • Page 34 It is in this area that you can change how Windows looks and works. Click Start Control Panel dialog box. There are two interfaces – Classic View.
  • Page 36: Internet Connection

    There are numerous ways to connect to the Internet. This may vary from the user’s working environment as well as system specifications. Using a wireless LAN Using a wired LAN...
  • Page 37 For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.
  • Page 39: Running Bios Setup

    The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS allows you to set up passwords to limit access to users. This is an important feature because a great deal of vital information is carried within the computer nowadays.
  • Page 40: Main Setup

    General Help Shows the Help Screen Saves changes and reboots the Save and Exit computer. <Tab> Select a field Selects the next field. ↑ Select an item Selects the next upper item. ↓ Select an item Selects the next lower item. Lower value Selects the next value within a field.
  • Page 41: Advanced Setup

    Advanced Setup...
  • Page 42: Security

    Security...
  • Page 43: Boot Setup

    Boot Setup Exit Setup...
  • Page 44 This process enables you to restore your system whether your system is damaged or for some other reason that you can not operate your computer. First turn on the power. When the BIOS performs the POST (Power-On Self Test) Press F9 key quickly to activate the System Recovery Program.
  • Page 45 Or click the “Quit” if you want to discontinue with the application. Click the “Recover your computer” if you want to proceed. You will be asked whether you would like to proceed with the recovery procedures. Click “OK” if you want to proceed or “Cancel” if you want to discontinue with the recovery procedures.
  • Page 46 This illustration will be shown twice after you made the first decision in case you change your mind to discontinue with the recovery procedures. The system will start with the recovery procedures. This illustration indicates the system has finished with the recovery procedures.
  • Page 48: Vga Utilities

    You can click the touchpad or mouse right button and select the “Properties” item. Select the “Display Settings” option to enter its window display. Click on the “Advanced Settings” tab to enter “Digital Flat Panel (1024x768) on Mobile Intel® 945 Express Chipset” window display.
  • Page 54: Troubleshooting

    Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.
  • Page 55 Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work. If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem.
  • Page 56 Click Options and select Properties. Select Recording and click the OK button. After Click OK button, the recording volume control panel will appear. Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that the audio codec mentioned in the spec is the default recording device.
  • Page 57 Many browsers store files in the hard drive as a cache to speed up the performance. Check the program’s Online Help for instructions on decreasing the cache size or on removing temporary Internet files. Empty the Recycle Bin to create more disk space. When you delete files, Windows saves them to the Recycle Bin.
  • Page 58 Make sure there is no excess perspiration or humidity on your hand when using the touch pad. Keep the surface of the touch pad clean and dry. Do not rest your palm or wrist on the surface of the touch pad while typing or using the touch pad.
  • Page 59 Certain brands of memory module may not be compatible with your system. You should ask your vendor for a list of compatible DIMM. The memory module may be defective. This is often a software or Windows-related problem. A program is draining the memory resources. Close the application programs you’re not using and restart the system.
  • Page 60 Make sure you have <Stop> the PC card before removing it. Double-click the Safely Remove Hardware icon at the lower right corner of the task bar and select the card you wish to stop. When you click <Close>, in few seconds Windows will prompt you to remove the card.
  • Page 61 Check the settings in the Windows Control Panel. Make sure you have installed the necessary device drivers. Contact the device vendor for additional support.
  • Page 63: Specification

    Supports Windows XP OS with SATA HDD Support Atom CPU: 533 MHz Front Side Bus (FSB), Single Core DDRII 400/533 DDRII SDRAM socket x 1 DDRII Memory module up to 1GB Intel 945GSE+ICH-7M 945GSE Realtek ALC662 Support SD/MMC/MS/MS Pro Memory Card USB2.0 interface...
  • Page 64 Support 1.3M Camera 81 keys KB support PS2 Touch Pad with 2 buttons Touch Pad mylar w/ printing 10.2" WXGA, LED backlight,1024 X 600 Pixels Non-Glare/Wide view type One channel LVDS Interface Single-HDD for 2.5" 9.5mm SATA support Support SATA 2.0...
  • Page 65 40W Watts Build-in 2 speakers Internal Microphone support Supports PnP, ACPI 3.0 Support external USB flash memory card boot up. AMI BIOS support “Smart Power II” Power Management Dimension: 258 mm x 189 mm x 28 mm Weight - 1.275 g with 3 cell battery CE, FCC, CCC CE (EN 301 489-1 &...
