1. 120 volts may cause serious injury from electric shock. Disconnect electrical power
before starting installation. Leave power disconnected until installation is complete.
2. Sharp edges may cause serious injury from cuts. Use care when cutting plenum
openings and handling ductwork.
3. Dropping may cause personal injury or equipment damage. Handle with care.
4. Do not remove the outlet screen. The screen is required to protect from moving parts
and electrical components.
SPECIFICATIONS
Dimensions: Width: 12.5" cabinet, 13" with doors
Height: 14.5" cabinet, 18.5" with leveling feet
fully extended
Length: 22" cabinet, 27" with collars
Weight: 65 lbs.
Capacity: 65 pints/day @ 150 cfm
AHAM DH-1-2003 80°F, 60% RH conditions
Efficiency: 1.8 Liters per kilowatt hour
AHAM DH-1-2003 80°F, 60% RH conditions
Power: 115VAC, 60 Hz, 7A Operating Current @ 80°F/ 60% RH
Unit equipped with 8 ft. grounded power cord
15 Amp circuit required
UNPACKING AND CONTENTS
Do not tip unit to remove from carton.
1. Open carton completely using cut line shown along bottom
perimeter of carton.
2. Remove all cardboard inner pack (top edges and duct collars).
3. See Figure 1 for opening view and contents.
a. Installation Manual
b. Owner's Manual
c. Model 76 Control
d. Outlet Collar with Back Flow Damper
e. 8 ft. Grounded Power Cord
f. Wiring Access Panel
g. Condensate Pan
Model 1730A Compact Dehumidifier
WARNING

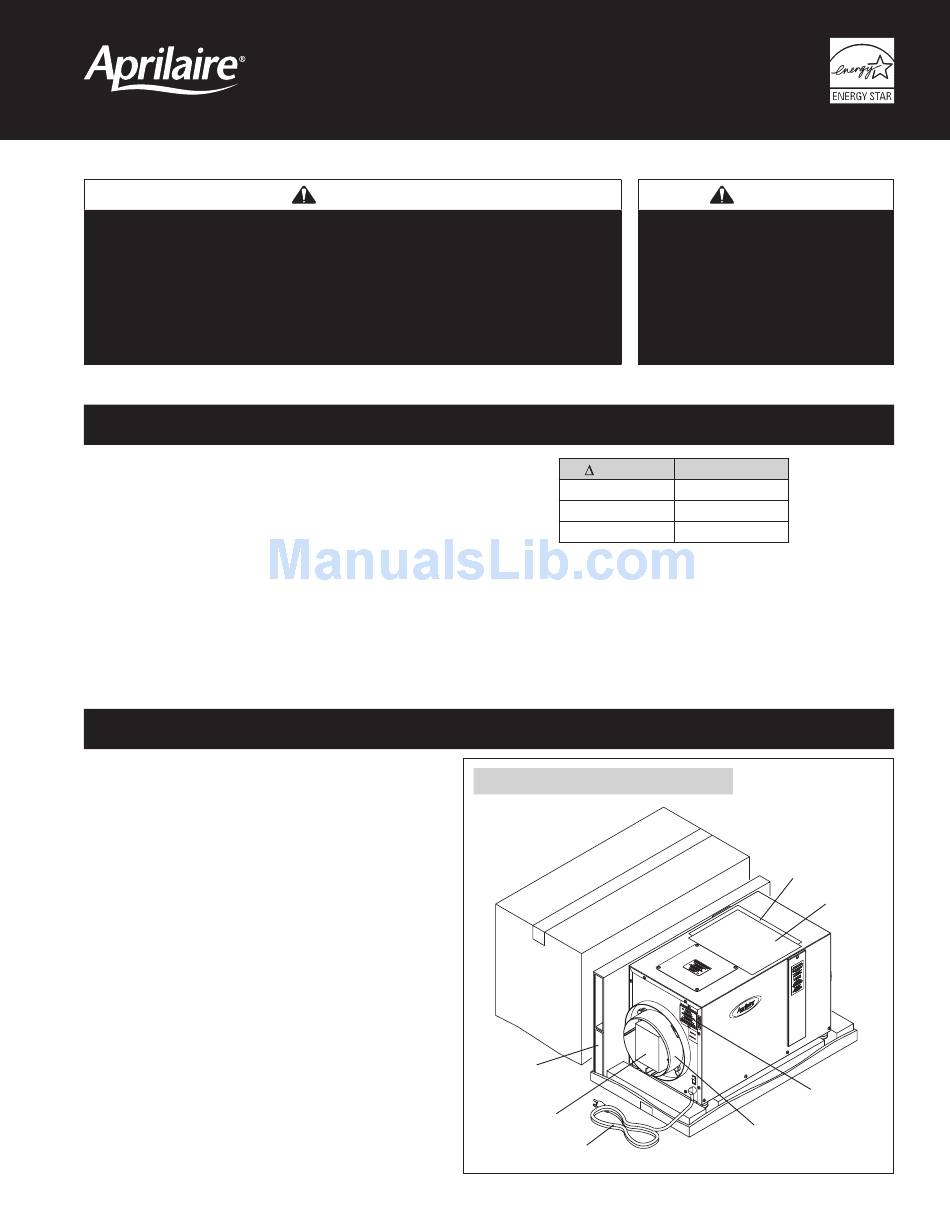

FIGURE 1 – Carton Opening & Contents
90-1654
Installation Instructions
1. Do not use in pool applications.
2. If unit has been shipped or stored on
its side, wait 24 hours before running.
3. Do not use solvents or cleaners on
or near the display or circuit board.
Chemicals can damage components.
Airflow:
P ("w.c.)
0.0
0.2
0.4
Inlet Air Operating Conditions: 60°F to 95°F, 30% RH to 99% RH
Installation Conditions: 40°F to 140°F, 0% RH to 99% RH
Evaporator Frost Sensor: 25°F +/- 5°F, circuit opens (cut-out)
55°F +/- 5°F, reset temperature (cut-in)
Filter: MERV 8, washable
g
c
e
CAUTION
Airflow (cfm)
230
220
190
a
b
f
d
