Aprilaire 1710A Troubleshooting Manual

Hide thumbs Also See for 1710A:

Table of Contents

Download this manual See also: Troubleshooting Manual, Installation & Owner's Manual

Aprilaire Dehumidifier Troubleshooting Manual

Instruments you will need to complete troubleshooting:

1. Digital Multi-Meter (DMM) capability of measuring

• AC and DC voltage

• Resistance

• Capacitance

2. Temperature Meter for air temperature

3. Humidity Meter for air RH

Minimum tools needed to complete troubleshooting:

1. Phillips screwdriver (#2) or drill driver with #2 Phillips bit

2. Small (terminal) flat head screwdriver

3. Needle nose pliers

4. Level (to troubleshoot water leak claims)

Note: Do not hook up refrigeration gauges to the dehumidifier. Use of gauges will result in

refrigerant loss and performance loss.

Models 1710A, 1750A, 1770A

Table of Contents

Need help?

Do you have a question about the 1710A and is the answer not in the manual?

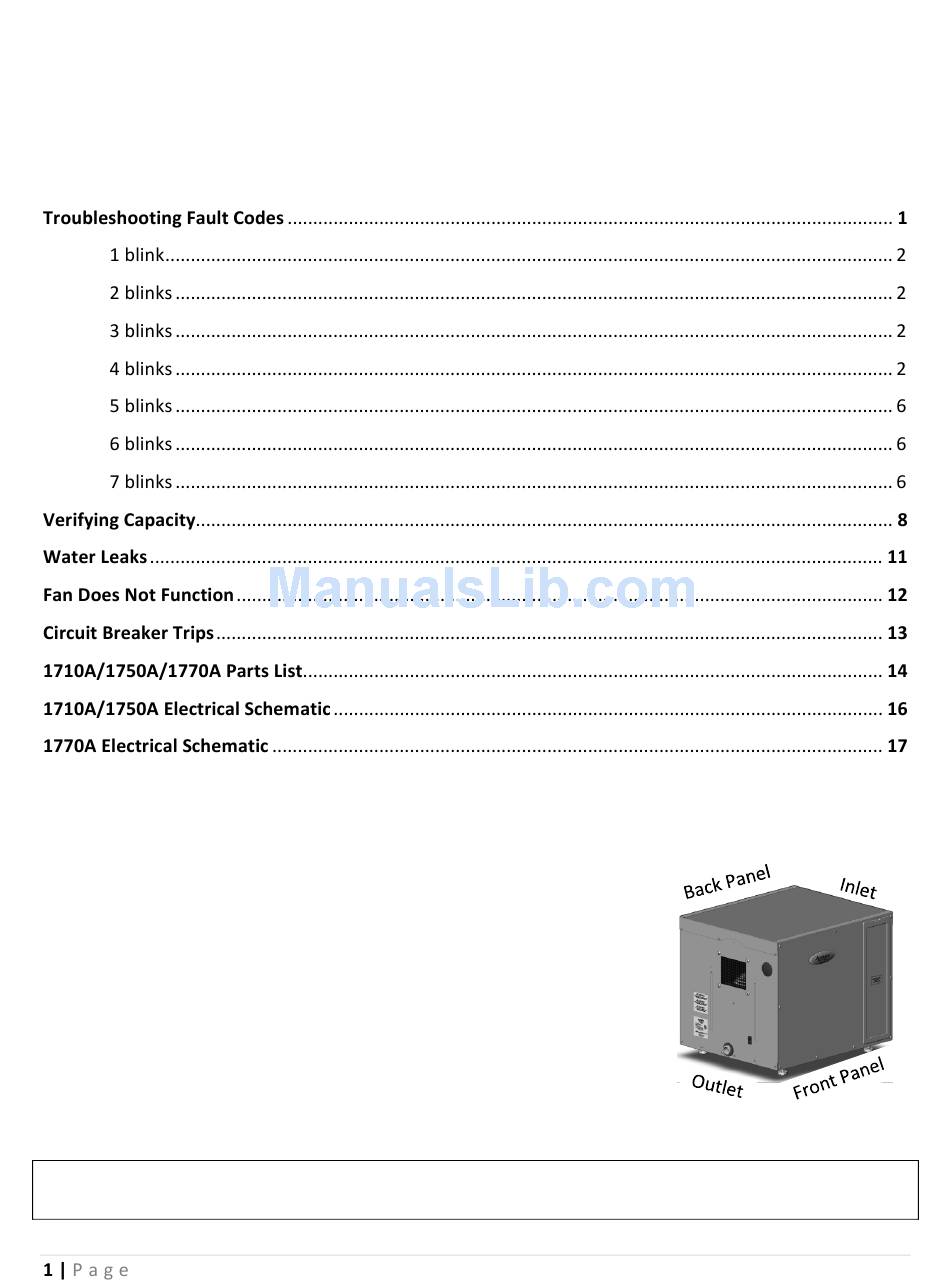

Page 1 Aprilaire Dehumidifier Troubleshooting Manual Models 1710A, 1750A, 1770A Table of Contents Instruments you will need to complete troubleshooting: 1. Digital Multi-Meter (DMM) capability of measuring • AC and DC voltage • Resistance • Capacitance 2. Temperature Meter for air temperature 3.
