Summary of Contents for Aprilaire Zoned Comfort

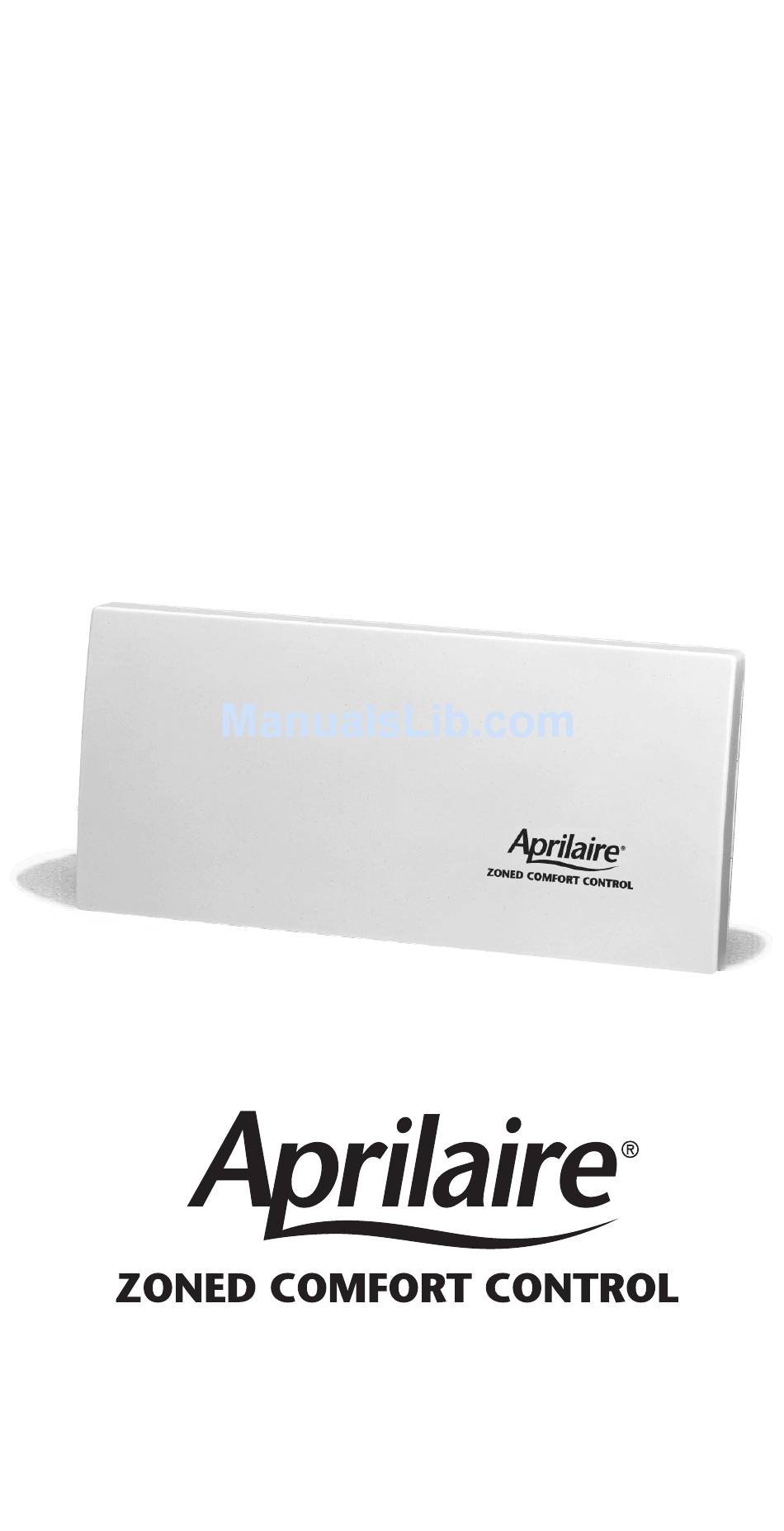

- Page 1 Owner’s Manual...
- Page 2 Overview The Aprilaire Zoned Comfort Control System has been designed to increase comfort in your home and reduce energy costs. It’s able to do this because it solves the problem caused by various areas of the home gaining and losing heat at different rates.
- Page 3 Zone 2 70˚F (21˚C) Zone 3 65˚F (18˚C) The above illustration shows a typical three zone Aprilaire Zoned Comfort Control system with the following Research Products Corporation components added for the ultimate in indoor air quality and comfort: • Eliminates dry nose, dry throat, itchy skin.
- Page 4 The 6303 will control 2 or 3 zones. Basic Operation Your Aprilaire Zoned Comfort Control System will allow you to increase your comfort by directing conditioned air to separate areas (zones) based on each zone’s thermostat setting.
- Page 5 Again, consult your thermostat Owner’s Manual for details on how to do this properly. When you have correctly initiated a Heat call, the Aprilaire Zoned Comfort Control Panel will start your heating equipment. If the equipment does not come on right away it may be due to the minimum-off time delay.
- Page 6 Heat Pump. Use only when necessary. Your equipment may not include Emergency Heat. Damper Operation (All Models) When the Aprilaire Zoned Comfort Control Panel receives a call and turns on the appropriate equipment, it also automatically closes the dampers that serve the non-calling zones and opens those in the calling zones.
- Page 7 Turning the System Off (All Models) In order to shut off the system and prevent the Aprilaire Control Panel from turning on your equipment, you need to set ALL of your thermostats to the OFF mode. Depending on your thermostats, this is done manually with a slide switch on your thermostat’s sub-base or with a digital push button.
-
Page 8: Limited Warranty
SHALL NOT APPLY TO DEFECTS IN WORKMANSHIP OR MATERIALS FURNISHED YOUR INSTALLER CONTRASTED TO DEFECTS IN THE ZONED COMFORT CONTROL SYSTEM ITSELF. IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE AFORESAID FIVE YEAR PERIOD.
