Connecting your EZ Upgrade

USB
3.0
Port

Hard Drive Installation

Follow these steps to install the Hard Disk into the EZ Upgrade Enclosure:

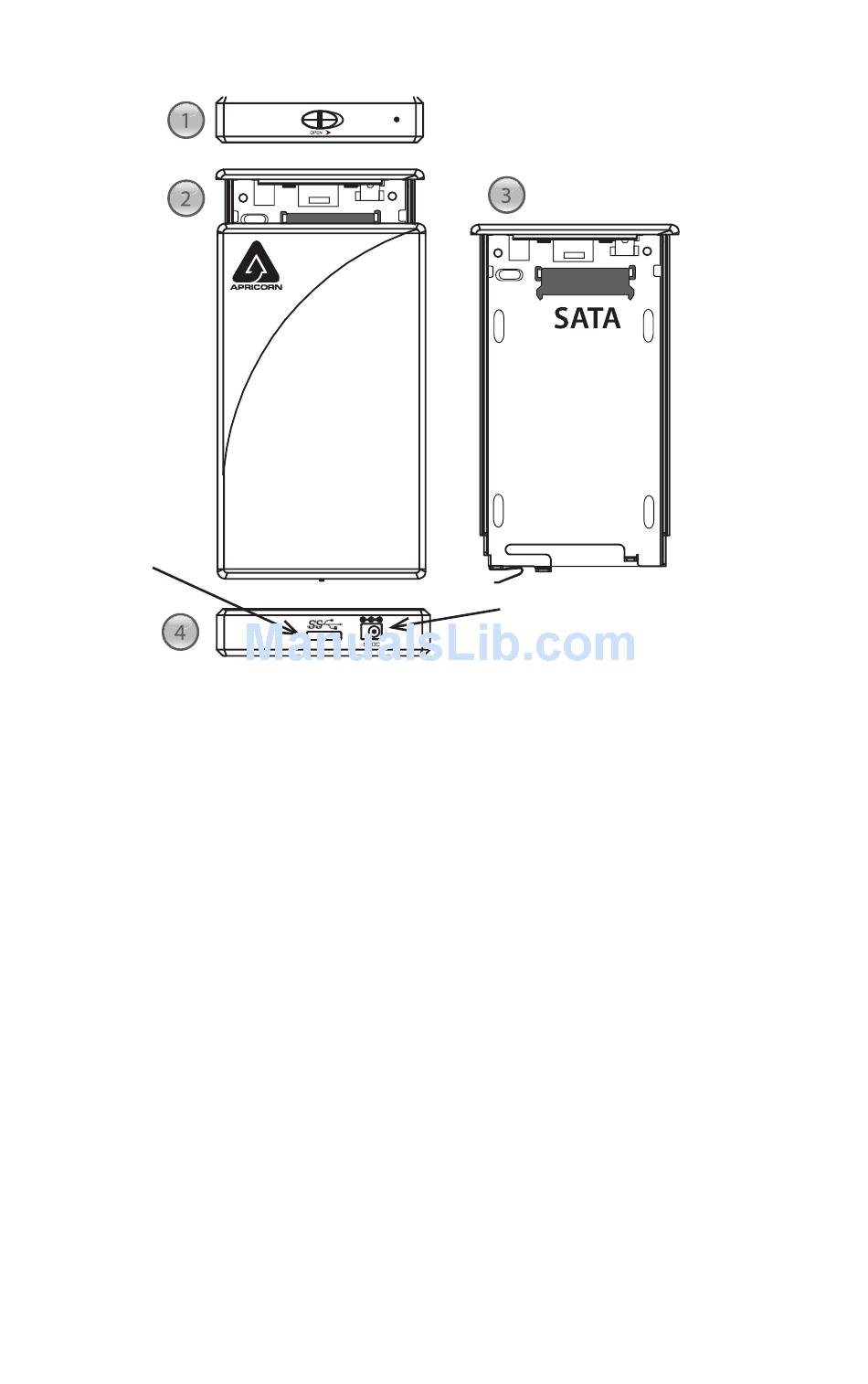

Step 1 Hold the EZ UP enclosure with both hands. Locate the OPEN switch
(diagram 1) and with one hand over the opposite end of the drive slide
the OPEN switch in the direction of the arrow to release the hard drive
tray. The hard drive tray will slide out of the enclosure into your other
hand. (diagram 2)
Step 2 Instructions for inserting the hard drive. (diagram 3)

For SATA hard drives:

Hold the hard drive tray in one hand with the SATA connector (the
connector that is closest to the plastic end cap where you connect the
cables) away from your body. Now, with the label side up grab the sides
of the hard drive with the other hand and set the hard drive into the tray
with the SATA blade connector away from your body. Carefully slide
the hard drive by placing your thumb on the back edge and pushing it
towards the black socket facing away from your body until it is completely
seated. The sidewalls of the hard drive tray will act as a guide, properly
aligning the SATA blade connector.
