Page 4: Introduction
State of California to cause cancer and birth defects or other reproductive harm. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Information in this respect is highlighted in this guide with the tree symbol. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Introduction...
Page 6 For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 7 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Page 8 Introduction To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority.
Page 9 By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Introduction...
Page 10 Child Seat Tether Anchor Anti-Lock Brake System Powertrain Malfunction Master Lighting Switch Fog Lamps-Front Fuel Pump Reset Windshield Defrost/Demist 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) See Owner’s Guide Airbag - Front Child Seat Child Seat Lower Anchor Brake System...
Page 11 Do Not Open When Hot Avoid Smoking, Flames, or Sparks Explosive Gas Power Steering Fluid Emission System Passenger Compartment Air Filter Check Fuel Cap 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Introduction Power Window Lockout Interior Luggage Compartment Release Symbol Engine Oil...
Page 12: Instrument Cluster
Instrument Cluster WARNING LIGHTS AND CHIMES Base instrument cluster Base with Tachometer instrument cluster 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 13 Instrument Cluster Family Carrier instrument cluster Mid instrument cluster 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 14 Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 15 On vehicles equipped with a message center, “ENGINE FAILSAFE MODE” will be displayed, refer to Message Center in the Driver Controls chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Instrument Cluster...
Page 16 ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) BRAKE BRAKE...
Page 17 Traction Control (if equipped): Illuminates when the Traction Control is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 18 Continued driving with this display on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 19: Gauges
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. GAUGES 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 20 • With Mini Message Center Press and release the button on top of the cluster to toggle between odometer and trip odometer display. Press and hold the button to reset Trip Odometer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 21 The arrow next to the fuel pump icon indicates which side of the vehicle the fuel filler door is located. For more information, refer to Filling the tank in the Maintenance and Specifications chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 22: Entertainment Systems
1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume. Note: The system may take a few moments to turn on. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 23 CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 24 Press and hold FF to manually advance in a CD/MP3 track. Press FOLDER to access the previous folder on MP3 discs, if available. Press FOLDER to access the next folder on MP3 discs, if available. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 25 15 seconds, the system will reload the disc. To auto eject up to 6 discs, press and hold until the system begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 26: Am/Fm Stereo
2. AUDIO: Press AUDIO repeatedly to gain access to the following settings: BAL (Balance): Press AUDIO to reach the balance setting. SEEK to adjust the audio between the left (L) and right (R) speakers. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 27 Press CLK again to set the minutes using manually increase/decrease the minutes. Allow 10 seconds to pass to confirm that the time has been set. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems SEEK...
Page 28 Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 2. MUTE/ : Press to mute the playing media. Press again to return to the playing media. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 29 TREB (Treble): Press MENU to reach the treble setting. SEEK, SEEK BAL (Balance): Press MENU to reach the balance setting. SEEK, SEEK (L) and right (R) speakers. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems to scroll through the list of available SEEK, to select a different category.
Page 30 For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) to adjust.
Page 31 In MP3 folder mode, the system will randomly play all tracks within the current folder. 8. FOLDER : In folder mode, press FOLDER to access next folder on MP3 discs, if available. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems SEEK, SEEK SEEK, SEEK to seek to the...
Page 32 In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 33 If a CD/MP3 is already loaded into the system, CD/MP3 play will begin where it ended last. (CD eject): Press to eject a CD/MP3. 18. CD slot: Insert a CD/MP3 label side up in the CD slot. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 34 Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 2. MUTE/ : Press to mute the playing media. Press again to return to the playing media. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 35 To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 36 SEEK In Folder mode, pressing SEEK within the selected folder. Press FOLDER, FOLDER available). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) to adjust. to adjust the audio between the left SEEK to adjust. will scroll through all tracks on the disc.
Page 37 CD. The CD status will display in the radio display. If your vehicle is equipped with a Family Entertainment System (FES) please refer to the DVD supplement for further information. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 38 Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability. 13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold to hear a brief sampling of radio stations or CD tracks. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 39 If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 40 To auto eject up to 6 CDs, press and hold until the system begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs. 19. CD slot: Insert a CD/MP3 label side up. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 41: Auxiliary Input Jack
3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 42 GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 43 Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player.
Page 44 (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) .mp3...
Page 45: Satellite Radio Information
Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 46 INVALID CHNL Channel no longer UNSUBSCRIBED Subscription not available for this NO TEXT Artist information not 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Action Required No action required. This message should disappear shortly. If this message does not clear within a short present.
Page 47 (FES). Refer to the DVD Supplement Guide for further information on your system. NAVIGATION SYSTEM (IF EQUIPPED) Your vehicle may be equipped with a Navigation System. Refer to the Navigation supplement for further information. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Entertainment Systems Action Required...
Page 48: Climate Controls
• Remove any snow, ice or leaves from the air intake area at the base of the windshield. To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) position.
Page 49: Manual Heating And Air Conditioning
(OFF): Outside air is shut out and the climate system is turned off. : Distributes air through the floor vents. : Distributes air through the windshield defroster vents and floor vents. : Distributes outside air through the windshield defroster vents. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Climate Controls...
Page 50 • Move the temperature control to the coolest setting. • Set the fan to the highest speed initially, then adjust to maintain comfort. Panel ( ) and panel/floor ( 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) : Press to activate/deactivate air (defrost) or...
Page 51: Automatic Temperature Control
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop. AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM (IF EQUIPPED) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Climate Controls ). Use recirculated air with A/C...
Page 52 If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. 3. B. Heated mirrors (if equipped): Press to activate/deactivate. This feature will remove ice and snow from the side view mirrors. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 53 The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 54 If your vehicle is equipped with a full message center, refer to Units (Fahrenheit/Celsius) in the Driver Controls chapter. If your vehicle is equipped with a mini message center, refer to Mini message center electronic compass temperature display in the Driver Controls Chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 55 Recirculation can be engaged manually in any other airflow selection except Recirculation may turn off automatically. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Climate Controls , A/C, (defrost).
Page 56 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) (floor/defrost).
Page 57: Rear Window Defroster
This may cause damage to the heated grid lines and will not be covered by your warranty. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 58: Lights
6. Deselect the autolamps after the desired autolamp delay time (maximum of 3 minutes). At this point, the headlamps and park lamps will turn off. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 59 Turns the headlamps on with a reduced output. In order for the DRLs to function: • the ignition must be in the ON position and • the headlamp control is in the OFF, parking lamp or autolamp position. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 60 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 61: Turn Signal Control
7. Repeat Steps 3–5 for the other headlamp. 8. Close the hood and turn off the lamps. TURN SIGNAL CONTROL • Push down to activate the left turn signal. • Push up to activate the right turn signal. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Lights...
Page 62 • OFF or : The lamp will not come on at all. The rear dome lamp can be turned ON or OFF by sliding the control. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 63: Bulb Replacement
“E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Lights...
Page 64 4. Slide headlamp assembly forward disconnecting the snap attachment at the fender and disconnect the electrical connector from the bulb by pulling rearward. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Number of Trade number...
Page 65 3. Once the three retaining screws have been removed, disengage the tab at the top center of the headlamp assembly by lifting it up. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Lights...
Page 66 4. Remove bulb socket from the lamp assembly by turning it counterclockwise. 5. Pull bulb straight out of socket and press in the new bulb. Install the new bulb(s) in reverse order. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 67 3. Pull out the old bulb from the socket and push in the new bulb. 4. Install the bulb socket in lamp assembly by turning it clockwise. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 68: Driver Controls
TILT STEERING WHEEL (IF EQUIPPED) Pull the lever down to unlock the steering column. While the lever is in the down position, tilt the steering column to its desired orientation. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 69 3. Power point 4. Large utility compartment has Coin holder slots, PalmPilot /PDA holder, and Pen holder Use only soft cups in the cupholder. Hard objects can injure you in a collision. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls...
Page 70 Press the release on the door to open the storage compartment. The storage compartment may be used to secure sunglasses or a similar object. The front bin may be used to store small objects. Overhead Storage Bins 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 71 Attach and remove bins from the rail using the following instructions: Place both palms on the underside of the storage bin, avoiding the storage bin door. Push upwards with palms. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls...
Page 72 Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 73 The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 74: Power Windows
They may seriously injure themselves. When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 75 Press the right side to restore the window controls. Power Sliding Back Window (if equipped) To operate the power sliding back window, the ignition switch must be in the Run or Accessory position. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 76 R (Reverse) to ensure a bright clear view when backing up. Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 77: Mirrors
Should this occur, wait approximately 3 minutes for the system to reset and function to return to normal. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 78 • Press the bottom of the control to adjust the pedals toward you. • Press the top of the control to adjust the pedals away from you. The adjustment allows for approximately 3 inches (76 mm) of maximum travel. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 79: Speed Control
• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 80 You can also use the CST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 81 In AM, FM1, or FM2 mode: • Press and release SEEK to select the next preset station or press and hold SEEK to select the next strong station within the selected radio band. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls...
Page 82 MOON ROOF (IF EQUIPPED) The moon roof control is located on the overhead console. Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 83 This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls ROOF control.
Page 84 2. Position the end of your hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink button you wish to program (located on your visor) while keeping the indicator light in view. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 85 HomeLink should now activate your rolling code equipped device. To program additional HomeLink buttons begin with Step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 86 For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLink at www.homelink.com or 1–800–355–3515. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 87 The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antennas. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls...
Page 88 Perform this adjustment in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) 7 8 9 1011...
Page 89: Message Center
Press this control to select and reset functions shown in the INFO menu and SETUP menu. Info menu This control displays the following control displays: • Odometer/Compass • Trip odometer/Odometer/Compass • Distance to Empty 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 90 5. Press and hold the SETUP and RESET controls until the message center display changes to show the current zone setting (XX). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) 7 8 9 1011...
Page 91 The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display and tone will return within 10 minutes. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 92 1. Press and release RESET in order to start the timer. 2. Press and release RESET to pause the timer. 3. Press and hold RESET for 2 seconds in order to reset the timer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 93 2. Press the RESET control to change from English to Metric. Autolocks This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 94 System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems. In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 95 CHECK ENGINE TEMPERATURE. Displayed when the engine coolant is overheating. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the coolant and coolant level. Refer 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 96 CHECK FUEL CAP. Displayed when the fuel filler cap is not properly installed. Check the fuel filler cap for proper installation. Refer to Fuel filler cap under the Fuel Information section in the Maintenance and Specifications chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) system will be partially...
Page 97 POSITIVE RETENTION FLOOR MAT Do not install additional floor mats on top of the factory installed floor mats as they may interfere with the accelerator or the brake pedals. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driver Controls...
Page 98: Tailgate
5. Lift right side off of its hinge. 6. Lift tailgate to a 80–degree angle from horizontal. 7. Remove tailgate from left side hinge by sliding tailgate to the right. To install, follow the removal procedures in reverse order. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 99 2. Turn the screw counterclockwise until you hear an audible click. 3. To deactivate, turn the screw clockwise until the locking clip moves freely. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 100 3. Press the locking clips below the middle bar and lift the bed extender out of the channels on the “D” pillar. To install the bed extender, follow the removal procedure in reverse order. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 101: Locks And Security
Autolock (if equipped) The autolock feature is available on automatic transmission vehicles with power locking. This feature will lock all the doors when: • all the doors are closed, 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Locks and Security...
Page 102 Conversely, a horn chirp followed by a honk will indicate the system is enabled. Pressing the control then the feature ON if it was previously OFF, or OFF if it was previously ON. The 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) then the control.
Page 103 Setting the lock for one door will not automatically set the lock for both doors. • Move lock control up to engage the childproof lock. • Move control down to disengage childproof locks. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Locks and Security...
Page 104 2. Press and release again within three seconds to unlock all the doors. Locking the doors 1. Press and release to lock all the doors. The parklamps will flash. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 105 Sounding a panic alarm Press to activate the alarm. Press again or turn the ignition to 2 (ACCESSORY) or 3 (ON) to deactivate. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Locks and Security button...
Page 106 SET control on the driver’s door panel. 3. Repeat this procedure for another remote transmitter if desired. Replacing the battery The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 107 • Take all your vehicle’s transmitters to your authorized dealer for programming, or • Perform the programming procedure yourself. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 108 5-digit code or your personal code are correctly entered into the keyless keypad. The illuminated entry system will turn off the interior lights if: • the ignition switch is turned to the 3 (ON) position, or 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 109 2. Turn the ignition to the 1 (OFF/LOCK) position, then press the control three times. 3. Turn the ignition to the 3 (ON) position; the horn will chirp to indicate the driver configuration mode has been activated. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Locks and Security...
Page 110 7 • 8 and the 9 • 0 controls simultaneously, which will still lock the vehicle. The antiscan feature will be turned off after: • one minute, when the antiscan feature times out. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 111 To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You do not need to enter the keypad code first. Note: The interior lamps will turn off. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 112: Anti-Theft System
Note: The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.
Page 113 If two previously programmed coded keys are not available, you must bring your vehicle to your authorized dealer to have the spare coded key(s) programmed. Please read and understand the entire procedure before you begin. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 114 Steps 1 through 5. If failure repeats, bring your vehicle to your authorized dealer to have the new spare key(s) programmed. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 115: Seating And Safety Restraints
Head restraints help to limit head motion in the event of a rear collision. Adjust your head restraint so that it is located directly or as close as possible behind your head. The head restraints can be moved up and down. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 116 Make sure that the seat is relatched into place. • Pull the release lever handle located on the side of the seat up to move the seatback forward or backward. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 117 Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a collision. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 118 The control is located on the outboard side of the seat cushion. Press the front or rear portion to tilt the seat. Press the control to move the seat forward, backward, up or down. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 119 To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 120 The rear seat has a split 60/40 cushion. Each seat cushion can be flipped up into the seatback position. 1. Pull control to release seat cushion. 2. Rotate seat cushion up until it locks into vertical storage position. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 121: Safety Restraints
How does the Personal Safety System The Personal Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) consists of: work?
Page 122 For other occupants, this occurs when the occupant is not properly restrained by safety belts or child safety seats 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 123 In frontal collisions, the safety belt pretensioners can be activated alone or, if the collision is of sufficient severity, together with the front airbags. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) to tailor the airbag deployment and...
Page 124 Always drive and ride with your seatback upright and the lap belt snug and low across the hips. To reduce the risk of injury, make sure children sit in the back seat where they can be properly restrained. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) is operational...
Page 125 Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 126 If you carry large cargo behind the seat or items that might damage or soil the belt, detach the belt from the seat: 1. Release the mini-buckle by inserting a key or safety belt tongue into the slot. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 127 The cinch tongue will slide up and down the belt webbing when the belt is stowed or while putting safety belts on. When the lap/shoulder safety belt is buckled, the cinch tongue will allow the lap portion to be 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 128 The lap belt should fit snugly and as low as possible around the hips, not across the waist. Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 129 To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 130 In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt, or the Regular Cab center safety belt. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 131 Refer to Safety Restraints for Children or Safety Seats for Children later in this chapter. How to use the automatic locking mode 1. Buckle the combination lap and shoulder belt. • Right front passenger seat • Rear seats (if equipped) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 132 Your vehicle is equipped with safety belt buckle pretensioners at the driver and front outboard passenger seating positions. Do NOT place objects between the seats, as this could interfere with the functioning of the pretensioner. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 133 The Personal Safety System provides the most benefit to belted occupants. The system monitors and tailors the air bag deployment based upon safety belt usage. Failure to properly wear your safety belt will increase your risk of injury. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 134 Safety belt warning light and indicator chime The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 135 When the BeltMinder feature is activated, the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until the safety belts are buckled. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Then...
Page 136 1-2 minutes have elapsed since the ignition switch has been turned to ON... The BeltMinder feature is activated and the vehicle speed is less than 3 mph... 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Then... The BeltMinder feature will not activate.
Page 137 “I’d rather be Not a good idea. People who are ejected are 40 thrown clear” times more likely to DIE. Safety belts help prevent ejection, WE CAN’T “PICK OUR CRASH”. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 138 BeltMinder feature while driving the vehicle. 1. Turn the ignition switch to the RUN (or ON) position. (DO NOT START THE ENGINE) 2. Wait until the safety belt warning light turns off. (Approximately 1 minute) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 139 (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), child safety seat LATCH and tether anchors, and attaching 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 140: Airbags
Seating and Safety Restraints hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced. However, if the collision was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced.
Page 141 To properly position yourself away from the airbag: • Move your seat to the rear as far as you can while still reaching the pedals comfortably. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 142 Additional equipment may affect the performance of the airbag sensors increasing the risk of injury. Please refer to the Body Builders Layout Book for instructions about the appropriate installation of additional equipment. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 143 This arrangement provides lap and shoulder belt protection for all occupants, and airbag protection for the adults. A child or infant properly restrained in the center front seat should not incur risk of serious injury from the airbags. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 144 Thus, it is extremely important that occupants be properly restrained as far away from the airbag cover as possible while maintaining vehicle control. Several airbag system components get hot after inflation. Do not touch them after inflation. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 145 The sensors are designed to detect the presence of a properly seated occupant and determine if the front passenger’s frontal airbag should be enabled (may inflate) or disabled (will not inflate). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 146 The front passenger sensing system is designed to enable (may inflate) the front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the front passenger seat. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 147 Always sit upright against your seatback, with your feet on the floor. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Passenger Airbag...
Page 148 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this Owner’s Guide.
Page 149: Child Restraints
Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit. Do not leave children, unreliable adults, or pets unattended in your vehicle. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 150 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably.
Page 151 Either type can be used at any seating position equipped with lap/shoulder belts if your child is over 40 lb. (18 kg). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 152 Never put the shoulder belt under a child’s arm or behind the back because it eliminates the protection for the upper part of the body and may increase the risk of injury or death in a collision. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 153 • Put the safety belt in the automatic locking mode. Refer to Automatic locking mode (passenger side front seating position-Regular Cab) (passenger side front and rear seating positions-SuperCrew and SuperCab) (if equipped). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 154 36 kg (80 pounds) using an upper torso harness and a belt-positioning booster. Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with LATCH and tether anchors.
Page 155 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 156 7. Pull the lap belt portion across the child seat toward the buckle and pull up on the shoulder belt while pushing down with your knee on the child seat. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 157 Always use both lap and shoulder safety belt in the Regular Cab center seating position. 1. Position the child safety seat in the Regular Cab center front seat. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 158 4. While holding both shoulder and lap portions next to the tongue, route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions. Be sure that the belt webbing is not twisted. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 159 To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 160 Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 161 1. Position the child safety seat on the seat cushion. 2. Route the child safety seat tether strap over the back of the seat and under the head restraint. 3. Locate the correct anchor for the selected seating position. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 162 5. Install the child safety seat tightly using the LATCH anchors or safety belts. Follow the instructions in this chapter. 6. Tighten the child safety seat tether strap according to the manufacturer’s instructions. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 163 Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child seat. To provide a tight tether strap: 1. Route the tether strap under the head restraint and through the loop directly behind the child seat. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 164 This type of child seat eliminates the need to use safety belts to attach the child seat. For forward-facing child seats, the tether strap must also be attached to the proper tether anchor. See Attaching safety seats with tether straps in this chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 165 Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments. Attach LATCH lower attachments of the child seat only to the anchors shown. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 166 Also try to tug the seat forward. Check to see if the anchors hold the seat in place. If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 167: Tires, Wheels And Loading
This increases traction which may enable you to safely drive over terrain and road conditions that a conventional two-wheel drive vehicle cannot. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 168 All other things held equal, a shorter wheelbase may make your vehicle quicker to respond to steering inputs than a vehicle with a longer wheelbase. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 169 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 170 TIRES Tires are designed to give many thousands of miles of service, but they must be maintained in order to get the maximum benefit from them. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 171 Safe operation of your vehicle requires that your tires are properly inflated. Remember that a tire can lose up to half of its air pressure without appearing flat. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 172 (if equipped), at least monthly and before long trips. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
Page 173: Tire Information
7. Check the sidewalls to make sure there are no gouges, cuts or bulges. TIRE CARE Inspecting your tires Periodically inspect the tire treads for uneven or excessive wear and remove objects such as stones, nails or glass that may be wedged in the 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 174 You should replace your spare tire when you replace the road tires or after six years due to aging even if it has not been used. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 175 Certification Label or the Tire Label which is located on the B-Pillar or edge of the driver’s door. If this information is not found on these labels then you should consult your Ford dealer. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 176 4. Use both eye and ear protection. For a mounting pressure more than 20 psi greater than the maximum pressure, a Ford Dealer or other tire service professional should do the mounting. Always inflate steel carcass tires with a remote air fill with the person inflating standing at a minimum of 12 ft.
Page 177 Unless otherwise specified, rotate the tires approximately every 5,000 miles (8,000 km). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 178 This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 179 These speed ratings may need to be adjusted for the difference in conditions. The ratings range from 81 mph (130 km/h) to 186 mph (299 km/h). These ratings are listed in the following chart. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 180 Refer to the Safety Compliance Certification Label, which is located on the B-Pillar or the edge of the driver’s door, for the correct tire pressure for your vehicle. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 181 The cold inflation pressure should never be set lower than the recommended pressure on the vehicle label. The tire suppliers may have additional markings, notes or warnings such as standard load, radial tubeless, etc. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading ⁄...
Page 182 4. Maximum Load Single lb. (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single; defined as two tires (total) on the rear axle. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 183: Tire Inflation
B-Pillar or the edge of the driver’s door. Refer to the payload description and graphic in the Vehicle loading — with and without a trailer section. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 184: Tire Pressure Monitoring System (Tpms)
(at least monthly) using a tire gauge, see Inflating your tires in this chapter. Failure to properly maintain your tire pressure could increase the risk of tire failure, loss of control, vehicle rollover and personal injury. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 185 To restore the full functionality of the Tire Pressure Monitoring System, have the damaged road wheel/tire repaired and remounted on your vehicle. For additional information, refer to Changing tires with TPMS in this section. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 186 Solid Warning Light Tire(s) under-inflated Spare tire in use Your temporary spare tire is in TPMS malfunction 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) 1. Check your tire pressure to ensure tires are properly inflated; refer to Inflating your tires in this chapter.
Page 187 If the low tire pressure warning light is ON, visually check each tire to verify that no tire is flat. If one or more tires are flat, repair as necessary. Check air pressure in the road tires. If 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading use.
Page 188: Vehicle Loading
Tire Label or Safety Compliance Certification Label: Base Curb Weight – is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 189 Overloading or improperly loading your vehicle can contribute to loss of vehicle control and vehicle rollover. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 190 GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) – including vehicle curb weight and all payload. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 191 Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 192 Do not use replacement tires with lower load carrying capacities than the originals because they may lower the vehicle’s GVWR and GAWR limitations. Replacement tires with a higher limit than the originals do not increase the GVWR and GAWR limitations. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 193 2 years. Measuring the inside of the vehicle with the rear seat folded down, you have room for 12-100 lb. (45 kg) bags of cement. Do you have enough load capacity to 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 194: Trailer Towing
5,000 lb. (2,268 Your vehicle’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available space when loading a vehicle. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 195 5.4L 3.73 Regular Cab 4x2 (144.5” wheelbase) Engine Rear axle ratio 4.2L (with 3.31 manual 3.55 transmission) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 7200 (3266) 2400 (1089)
Page 196 5.4L (with 18” 3.73 tires) Regular Cab 4x4 (144.5” wheelbase) Engine Rear axle ratio 4.6L 3.55 4.6L 3.73 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 10000 (4536) 5000 (2268) 10500 (4763)
Page 197 3.55 tires) 5.4L (with 18” 3.55 tires) 5.4L (with 17” 3.73 tires) 5.4L (with 18” 3.73 tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 14000 (6350) 8500 (3856)
Page 198 4.10 SuperCab 4x4 (132.5” wheelbase) Engine Rear axle ratio 4.6L (with 17” 3.55 tires) 4.6L (with 18” 3.55 tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 11700 (5307) 6500 (2948) 11200 (5081)
Page 199 5.4L (with 17” 3.55 tires) 5.4L (with 18” 3.55 or 20” tires) 5.4L (with 17” 3.73 tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 12000 (5443) 6500 (2948)
Page 200 5.4L (with 18” 3.55 or 20” tires) 5.4L (with 17” 3.73 tires) 5.4L (with 18” 3.73 or 20” tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 14500 (6577) 8800 (3992) Maximum Maximum GCWR-lb.
Page 201 Rear axle ratio 5.4L 3.73 Crew Cab 4x2 (150.5” wheelbase) Engine Rear axle ratio 4.6L (with 17” 3.55 tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 11000 (4990)
Page 202 5.4L (with 18” 3.55 or 20” tires) 5.4L (with 17” 3.73 tires) 5.4L (with 18” 3.73 or 20” tires) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Maximum Maximum GCWR-lb. (kg) trailer weight-lb. (kg) 11200 (5080) 5700 (2585) 12200 (5534)
Page 203 If you use a rental trailer, follow the instructions that the rental agency gives to you. Do not attach safety chains to the bumper. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading ⁄...
Page 204 • To eliminate excessive shifting, use a lower gear. This will also assist in transmission cooling. (For additional information, refer to Understanding the gearshift positions of the 4–speed automatic transmission in the Driving chapter. • Anticipate stops and brake gradually. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 205 • do not allow the static water level to rise above the bottom edge of the rear bumper. • do not allow waves to break higher than 6 inches (15 cm) above the bottom edge of the rear bumper. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Tires, Wheels and Loading...
Page 206: Recreational Towing
N (Neutral) position. Always set the parking brake fully and turn off the ignition when leaving the vehicle. After reaching the destination, you must place your vehicle’s 4x4 gearshift lever in gear (2H, 4H or 4L). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 207 If a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must be exceeded, you must disconnect the front (4x4 only) and rear driveshafts. Ford recommends the driveshafts be removed/installed only by a qualified technician at an authorized dealer. See your authorized dealer for driveshaft removal/installation.
Page 208: Driving
Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 209 Seating and Safety Restraints chapter. 2. Make sure the headlamps and vehicle accessories are off. If starting a vehicle with an automatic transmission: • Make sure the gearshift is in P (Park). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving...
Page 210 3. Turn the key to 3 (ON) without turning the key to 4 (START). Some warning lights will briefly illuminate. See Warning lights and chimes in the Instrument Cluster chapter for more information regarding the warning lights. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) BRAKE...
Page 211 Your vehicle is designed to operate on E ethanol alone, unleaded gasoline alone, or any mixture of the two. See Choosing the right fuel in the Maintenance and Specifications chapter for more information on ethanol. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 212: Brakes
If the vehicle has continuous vibration or shudder in the steering wheel while braking, the vehicle should be inspected by an authorized dealer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 213 ABS may be disabled and may need to be serviced. Even when the ABS is disabled, normal braking is still effective. (If your BRAKE warning lamp illuminates with the parking brake released, have your brake system serviced immediately.) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving...
Page 214 To release, pull the lever (2). Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park) (automatic transmission) or in 1 (First) (manual transmission). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) BRAKE...
Page 215: Traction Control
“rocking” maneuver. If a system fault is detected, the traction control active light will illuminate, the Traction Control off and your vehicle should be serviced by an authorized dealer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving system. This system off.
Page 216 Traction-Lok axle functions like a standard rear axle. The axle may exhibit a slight noise or vibration in tight turns with low vehicle speed. This is normal behavior and indicates the axle is working. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 217: Transmission Operation
Fuses and relays in the Roadside Emergencies chapter. If the fuse is not blown, perform the following procedure: 1. Apply the parking brake, turn the ignition to OFF/LOCK, then remove the key. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving...
Page 218 Fuses and relays in the Roadside Emergencies chapter. If the fuse is not blown, perform the following procedure: 1. Apply the parking brake, turn the ignition to LOCK, then remove the key. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 219 If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your authorized dealer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving...
Page 220 This position locks the transmission and prevents the rear wheels from turning. To put your vehicle in gear: • Start the engine • Depress the brake pedal • Move the gearshift lever into the desired gear • Release the parking brake. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 221 Overdrive can be deactivated by pressing the transmission control switch on the end of the gearshift lever (column-shift transmission) or on the gearshift bezel (floor-shift transmission). • Column-shift transmission 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving R N D 2 1...
Page 222 • To return to D (Overdrive), move the gearshift lever into the D (Overdrive) position. • Selecting 2 (Second) at higher speeds will cause the transmission to downshift to second gear at the appropriate vehicle speed. 1 (First) • Provides maximum engine braking. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 223 3. Start the engine, then press the brake pedal and release the parking brake. 4. Move the gearshift lever to the desired gear, 1 (First) or R (Reverse), then slowly release the clutch pedal while slowly pressing on the accelerator. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 224 11 mph (18 km/h) 2 - 3 21 mph (34 km/h) 3 - 4 31 mph (50 km/h) 43 mph (69 km/h) (Overdrive) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) economy) 2H or 4H 9 mph (14 km/h) 12 mph (19 km/h)
Page 225 “parking speeds”. Inclement weather may also affect the function of the RSS; this may include reduced performance or a false activation. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 226 If the tailgate is down, the RSS tone may be heard intermittently or continuously. The tone may also be heard if items in the truck bed protrude rearward outside the bed. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 227 Refer to Shifting to/from 4L (4WD Low) for proper operation. System indicator lights • 4X4 HI - Momentarily illuminates when the engine is started. Illuminates when 4H is selected. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving 4x4 HI...
Page 228 Shifting to/from 4L (4WD Low) 1. Bring the vehicle to a complete stop. 2. Place the transmission in N (Neutral). 3. Move the transfer case lever through N (Neutral) directly to the desired position. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 229 Provides optimal smoothness and fuel economy at high speeds. 4H (4WD High) - Used for extra traction such as in snow or icy roads or in off-road situations. Not intended for use on dry pavement. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Driving...
Page 230 (if equipped, Harley-Davidson only) This system includes an electronically controlled transfer case. The system is interactive with the road, continually monitoring and adjusting torque delivery to the front and rear wheels to optimize traction. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 231 Map out your route before driving in the area. To maintain steering and braking control of your vehicle, you must have all four wheels on the ground and they must be rolling, not sliding or spinning. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 232 Press lightly on the accelerator in each gear. Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 233 Therefore, the vehicle is free to roll even if the automatic transmission is in P (Park) or the manual transmission is in gear. Do not 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 234 Remember, you may be able to back out the way you came if you proceed with caution. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 235 Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by “treading lightly.”...
Page 236 Rapid pumping of the brake pedal will help you slow the vehicle and still maintain steering control. If your vehicle has anti-lock brakes, apply the brakes steadily. Do not “pump” the brakes. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 237 Ford Motor Company recommends that caution be used with any vehicle equipped with a high load or device (such as ladder racks or pickup box cover).
Page 238 Installing the snowplow Weight limits and guidelines for selecting and installing the snowplow can be found in the Ford Truck Body Builders Layout Book, Snowplow section, found at www.fleet.ford.com/truckbbas. A typical installation affects the following: • Certification to government safety laws such as occupant protection and air bag deployment, braking, and lighting.
Page 239 Operating the vehicle with the snowplow attached Ford recommends that the F–150 be limited to low speed, personal-use snow removal. Do not use your vehicle for snow removal until it has been driven at least 500 miles (800 km).
Page 240 Do not attempt to service, repair, or modify the air bag supplemental restraint system (SRS) or its fuses. See your Ford or Lincoln Mercury dealer. Transmission operation while plowing •...
Page 241: Roadside Emergencies
50,000 miles (80,000 km) on Lincoln vehicles. Roadside assistance will cover: • a flat tire change with a good spare (except Ford GT which has a tire inflation kit) • battery jump start • lock-out assistance (key replacement cost is the customer’s responsibility) •...
Page 242 1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140. Canadian customers who require roadside assistance, call 1–800–665–2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount. To obtain reimbursement information, U.S. Ford or Mercury vehicles customers call 1–800–241–3673;...
Page 243: Fuel Pump Shut-Off Switch
This device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 244: Fuses And Relays
Note: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 245 To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 246 Power Distribution Box and Auxiliary Relay Box before reconnecting the battery or refilling fluid reservoirs. If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 247: Fuse Panel Description
20A* 7.5A* 10A* 7.5A* 15A* 10A* 20A* 20A* 10A* 10A* 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Roadside Emergencies Passenger Compartment Fuse Panel Description Run/Accessory - Wipers, Instrument cluster, Audio for XL/STX Stop/Turn lamps, Brake on/off switch, Hazard flashers...
Page 248 10A* 10A* 10A* 15A* 10A* 10A* 15A* 10A* 20A* 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Passenger Compartment Fuse Panel Description Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps...
Page 249 10A* 20A* 25A* 20A* 20A* 20A* 10A* 30A** 20A** 20A** 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Roadside Emergencies Passenger Compartment Fuse Panel Description PCM 4x4 power PCM 4x4 power Radio power, Satellite radio module Vapor Management Valve (VMV),...
Page 250 R201 Half ISO relay R202 Half ISO relay R203 Half ISO relay * Mini fuses ** Cartridge fuses 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Passenger Compartment Fuse Panel Description Not used Electric trailer brakes Trailer tow battery charge...
Page 251: Auxiliary Relay Box
Clockspring illumination Full ISO 4x4 CCW Relay Full ISO 4x4 CW Relay ⁄ Daytime Running Lamps (DRL) high beam Relay disable R201 Relay R202 Relay A/C clutch Diode A/C clutch 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Roadside Emergencies Description...
Page 252: Changing The Tires
Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 253 • Use snow chains on the end of the vehicle with the dissimilar spare tire/wheel The usage of a full-size dissimilar spare tire/wheel can lead to impairment of the following: • Handling, stability and braking performance 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Roadside Emergencies...
Page 254 The wing nut must be removed and the jack screw turned counterclockwise to release pressure before the jack can be removed from the holder. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Location Under the vehicle, just forward of...
Page 255 If the vehicle slips off the jack, you or someone else could be seriously injured. Refer to the instruction sheet (located with the jack) for detailed tire change instructions. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Roadside Emergencies...
Page 256 If the vehicle slips off the jack, someone could be seriously injured. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 257 Reinstall the lug nuts until the wheel is snug against the hub. Do not fully tighten the lug nuts until the wheel has been lowered. 10. Lower the wheel by turning the jack handle counterclockwise. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 258 Tighten to the best of your ability, to the point where the ratchet/slip occurs, if possible. The spare tire carrier will not allow you to overtighten. If the spare tire carrier 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 259: Lug Nut Torque
M14 x 2.0 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.
Page 260 Ensure that vent caps are tight and level. 5. Turn the heater fan on in both vehicles to protect from any electrical surges. Turn all other accessories off. Connecting the jumper cables 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 261 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 262 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 263 1. Remove the jumper cable from the ground metal surface. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2. Remove the jumper cable on the negative (-) connection of the booster vehicle’s battery. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 264 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 265: Wrecker Towing
Ford recommends your vehicle be towed with a wheel lift or flatbed. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure.
Page 266: Customer Assistance
Center at 1-800-392-3673 (FORD). Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 267 If you own a Lincoln vehicle and are away from home when your vehicle needs service, or if you need more help than the authorized dealer could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealer to help you.
Page 268 Customer Assistance In some states (in the U.S.) you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states. In the United States, a warranty dispute must be submitted to the BBB...
Page 269 You are not bound by the decision but may choose to accept it. If you choose to accept the BBB AUTO LINE decision then Ford must abide by the accepted decision as well. If the arbitrator has decided in...
Page 270 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 271 Customer Assistance If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Since this information is subject to change, please ask your authorized dealer for complete details about Ford Extended Service Plan coverage options, or visit the Ford ESP website at www.ford-esp.com.
Page 272: Reporting Safety Defects (U.s. Only)
Obtaining a French owner’s guide French Owner’s Guides can be obtained from your authorized dealer or by writing to Ford Motor Company of Canada, Limited, Service Publications, P.O. Box 1580, Station B, Mississauga, Ontario L4Y 4G3. REPORTING SAFETY DEFECTS (U.S. ONLY)
Page 273: Cleaning
• Never use abrasive materials such as steel wool or plastic pads as they can scratch the chrome surface. WAXING Applying Motorcraft Paint Sealant (ZC-45) to your vehicle every six months will assist in reducing minor scratches and paint damage. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Cleaning...
Page 274 • Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergent. • To remove tar and grease, use Motorcraft Bug and Tar Remover (ZC-42), available from your authorized dealer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 275 • Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts that require cleaning and pressure rinse clean. • Cover the highlighted areas to prevent water damage when cleaning the engine. • 4.2L engine • 4.6L engine 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Cleaning...
Page 276 To clean these items, follow these tips: • The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass Cleaner (ZC-23), available from your authorized dealer. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 277 • Be certain to wash or wipe your hands clean if you have been in contact with certain products such as insect repellent and suntan lotion in order to avoid possible damage to the interior painted surfaces. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Cleaning...
Page 278 • Do not use exterior paint waxes or sealants. Dust the low gloss areas with a clean, dry cloth, or use Motorcraft Dusting Cloth (ZC-24 or ZC-25) or Motorcraft Dusting Cloth Mitts (ZC-47). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 279 Note: In some instances, color or dye transfer can occur when wet clothing comes in contact with leather upholstery. If this occurs, the leather should be cleaned immediately to avoid permanent staining. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 280 In order to lessen the appearance of certain scratches and other wear marks, apply conditioner on the affected area following the same instructions as in the Conditioning section. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 281 FORD AND LINCOLN MERCURY CAR CARE PRODUCTS Your Ford or Lincoln Mercury authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs;...
Page 282 Motorcraft Spot and Stain Remover (U.S. only) (ZC-14) Motorcraft Tire Clean and Shine (ZC-28) Motorcraft Triple Clean (U.S. only) (ZC-13) Motorcraft Ultra-Clear Spray Glass Cleaner (ZC-23) Motorcraft Vinyl Cleaner (Canada only) (CXC-93) Motorcraft Wheel and Tire Cleaner (ZC-37–A) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 283: Maintenance And Specifications
1. Set the parking brake and shift to P (Park). 2. Block the wheels. • Manual transmission: 1. Set the parking brake, depress the clutch and place the gearshift in N (Neutral). 2. Block the wheels. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 284 2. Go to the front of the vehicle and release the auxiliary latch that is located on the front bumper under the grill. 3. Lift the hood until the lift cylinders hold it open. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 285: Engine Compartment
4. Brake fluid reservoir 5. Engine coolant reservoir 6. Air filter assembly 7. Engine oil filler cap 8. Engine oil dipstick 9. Transmission fluid dipstick (automatic transmission) 10. Windshield washer fluid reservoir 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 286 2. Transmission fluid dipstick (automatic transmission) 3. Engine oil filler cap 4. Power steering fluid reservoir 5. Brake fluid reservoir 6. Engine coolant reservoir 7. Air filter assembly 8. Engine oil dipstick 9. Windshield washer fluid reservoir 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 287 2. Transmission fluid dipstick (automatic transmission) 3. Air filter assembly 4. Power steering fluid reservoir 5. Engine oil dipstick 6. Brake fluid reservoir 7. Engine coolant reservoir 8. Engine oil filler cap 9. Windshield washer fluid reservoir 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 288 2. Attach the new wiper to the wiper arm and press it into place until a click is heard. Replace wiper blades at least once per year for optimum performance. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 289: Engine Oil
3. Set the parking brake and ensure the gearshift is securely latched in P (Park) (automatic transmission) or 1 (First) (manual transmission). 4. Open the hood. Protect yourself from engine heat. • 4.2L V6 engine 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 290 • If the oil level is between the lower and upper holes or between the MIN and MAX marks (depending on application), the oil level is acceptable. DO NOT ADD OIL. • 4.2L V6 engine 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 291 1/4 of a turn until three clicks are heard or until the cap is fully seated. To avoid possible oil loss, DO NOT operate the vehicle with the engine oil level indicator and/or the engine oil filler cap removed. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 292 Change your engine oil and filter according to the appropriate schedule listed in scheduled maintenance information. Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 293: Battery
Lift the battery with a battery carrier or with your hands on opposite corners. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 294 If the battery has been disconnected or a new battery has been installed, the clock and the preset radio stations must be reset once the battery is reconnected. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 295: Engine Coolant
50–50 mixture of coolant and water provides the following: • Freeze protection down to -34°F (-36°C). • Boiling protection up to 265°F (129°C). • Protection against rust and other forms of corrosion. • Enables calibrated gauges to work properly. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) RECYCLE...
Page 296 Do not add engine coolant when the engine is hot. Steam and scalding liquids released from a hot cooling system can burn you badly. Also, you can be burned if you spill coolant on hot engine parts. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 297 Motorcraft Premium Gold Engine Coolant from yellow to golden tan. • Do not add/mix an orange-colored, extended life coolant such as Motorcraft Specialty Orange Engine Coolant, meeting Ford specification WSS-M97B44-D, with the factory-filled coolant. Mixing Motorcraft Specialty Orange Engine Coolant or any orange-colored extended life product with your factory filled coolant can result in degraded corrosion protection.
Page 298 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet available.
Page 299 If the engine coolant supply is depleted, this feature allows the vehicle to be driven temporarily before incremental component damage is incurred. The “fail-safe” distance depends on ambient temperatures, vehicle load and terrain. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 300 2. Arrange for the vehicle to be taken to an authorized dealer. 3. If this is not possible, wait a short period for the engine to cool. 4. Check the coolant level and replenish if low. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 301 Automotive fuels can cause serious injury or death if misused or mishandled. Fuel ethanol and gasoline may contain benzene, which is a cancer-causing agent. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 302 When checking the VIN look for the engine type identifier (8th character). If your vehicle is an FFV, then the character will be labeled as a “V”. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 303 Care should be taken to avoid inhaling excess fumes. The flow of fuel through a fuel pump nozzle can produce static electricity, which can cause a fire if fuel is pumped into an ungrounded fuel container. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 304 4. To install the cap, align the tabs on the cap with the notches on the filler pipe. 5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 305 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford or Motorcraft fuel filler cap is not used. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 306 Repairs to correct the effects of using a fuel for which your vehicle was not designed may not be covered by your warranty. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality. Octane recommendations Do not be concerned if your engine sometimes knocks lightly.
Page 307 10 to 30 seconds. If the problems persist below this temperature, see your authorized dealer. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 308 For consistent results when filling the fuel tank: • Turn the engine/ignition switch to the off position prior to refueling, an error in the reading may result if the engine is left running. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 309 Habits • Smooth, moderate operation can yield up to 10% savings in fuel. • Steady speeds without stopping will usually give the best fuel economy. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 310 • Adding certain accessories to your vehicle (for example bug deflectors, rollbars/light bars, running boards, ski/luggage racks) may reduce fuel economy. • To maximize the fuel economy, drive with the tonneau cover installed (if equipped). 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 311 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 312 3. The fuel cap may not have been securely tightened. See Fuel filler cap in this chapter. 4. Driving through deep water – the electrical system may be wet. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) indicator to illuminate.
Page 313 15 minutes of steady driving on an expressway/highway followed by 20 minutes of stop-and-go driving with at least four 30 second idle periods. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 314 If the fluid levels are outside of the normal operating range the performance of the system could be compromised; seek service from your authorized dealer immediately. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 315 If the fluid level drops, refill the fluid level to the step in the reservoir. Use only a DOT 3 brake fluid designed to meet Ford specifications. Refer to Maintenance product specifications and capacities in this chapter. Carefully read cautionary information on product label. For MEDICAL EMERGENCY INFORMATION contact a physician or Poison Control Center immediately;...
Page 316 Correct fluid level The transmission fluid should be checked at normal operating temperature 150°F-170°F (66°C-77°C) on a level surface. The normal operating temperature can be reached after approximately 20 miles (30 km) of driving. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 317 Use of a non-approved automatic transmission fluid may cause internal transmission component damage. If necessary, add fluid in 1/2 pint (250 ml) increments through the filler tube until the level is correct. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) COLD...
Page 318 Checking and adding manual transmission fluid (if equipped) 1. Clean the filler plug. 2. Remove the filler plug and inspect the fluid level. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 319 5. Install and tighten the fill plug securely. Use only fluid that meets Ford specifications. Refer to the Maintenance product specifications and capacities section in this chapter. TRANSFER CASE FLUID (IF EQUIPPED) 1. Clean the filler plug.
Page 320: Air Filter(S)
Use only fluid that meets Ford specifications. Refer to the Maintenance product specifications and capacities section in this chapter. DRIVELINE UNIVERSAL JOINT AND SLIP YOKE Your vehicle may be equipped with universal joints that require lubrication.
Page 321 This could cause filter damage and allow unmetered air to enter the engine if not properly seated. • 5.4L Engine 1. Release two retainer clamps. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 322: Part Numbers
The PCV valve is a critical emission component. It is one of the items listed in scheduled maintenance information and is essential to the life and performance of your vehicle and to its emissions system. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) 4.6L V8 engine 5.4L V8...
Page 323 PCV valve. Replace the PCV valve with one that meets Ford material and design specifications for your vehicle, such as a Motorcraft or equivalent replacement part. The customer warranty may be void for any damage to the emissions system if such a PCV valve is not used.
Page 324 Maintenance and Specifications 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 325 Maintenance and Specifications 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 326 Maintenance and Specifications 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 327 Maintenance and Specifications 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 328: Engine Data
Compression 9.3:1 ratio The 5.4L 3V spark plug gap can’t be adjusted. 5.4L 3V FFV engines only. Engine drivebelt routing • 4.2L V6 Engine 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) 87 octane 87 octane or Ethanol (E85) 1-3-7-2-6-5-4-8...
Page 329 Safety Compliance Certification Label may be located. The Safety Compliance Certification Label is located on the structure (B-Pillar) by the trailing edge of the driver’s door or the edge of the driver’s door. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 330 2. Brake system / Gross Vehicle Weight Rating (GVWR) / Restraint System 3. Vehicle line, series, body type 4. Engine type 5. Check digit 6. Model year 7. Assembly plant 8. Production sequence number 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus)
Page 331 You can find a transmission/transaxle code on the Safety Compliance Certification Label. The following table tells you which transmission or transaxle each code represents. Description Four-speed automatic (4R75E) Five-speed manual (M5R2) 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Code...
Page 332: Accessories
Accessories GENUINE FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of Genuine Ford Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 333 • Electrical or electronic accessories or components that are added to the vehicle by the authorized dealer or the owner may adversely affect battery performance and durability. 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Accessories...
Page 334: Index
...324 Auxiliary Input Jack ...41 Axle lubricant specifications ...324 refill capacities ...324 traction lok ...216 Battery ...293 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) acid, treating emergencies ...293 jumping a disabled battery ...259 maintenance-free ...293 replacement, specifications ...322 servicing ...293...
Page 335 Getting assistance outside the U.S. and Canada ...271 Getting roadside assistance ...241 Getting the service you need ...266 Ordering additional owner’s literature ...272 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Index Utilizing the Mediation/Arbitration Program ...270 Daytime running lamps (see Lamps) ...59...
Page 336 ...243 improving fuel economy ...308 octane rating ...306, 328 quality ...307 running out of fuel ...307 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) safety information relating to automotive fuels ...301 Fuel - flex fuel vehicle (FFV) ...301, 305–306...
Page 337 ...59 headlamps ...58 headlamps, flash to pass ...59 instrument panel, dimming ...60 interior lamps ...62–63 replacing bulbs ...64, 67 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Index Lane change indicator (see Turn signal) ...61 Lights, warning and indicator ...12 anti-lock brakes (ABS) ...213...
Page 338 ...107 replacing the batteries ...106 Reverse sensing system ...225 Roadside assistance ...241 Safety Belt Maintenance ...139 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Safety belts (see Safety restraints) ...121, 124, 126–127, 130–132, 134 Safety defects, reporting ...272 Safety restraints ...121, 124,...
Page 339 ...171 label ...183 replacing ...175 rotating ...177 safety practices ...176 sidewall information ...178 snow tires and chains ...188 spare tire ...252 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) Index terminology ...171 tire grades ...170 treadwear ...170, 174 Towing ...194 recreational towing ...206...
Page 340 Index Windshield washer fluid and wipers ...68 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA (fus) checking and adding fluid ...288 replacing wiper blades ...288...

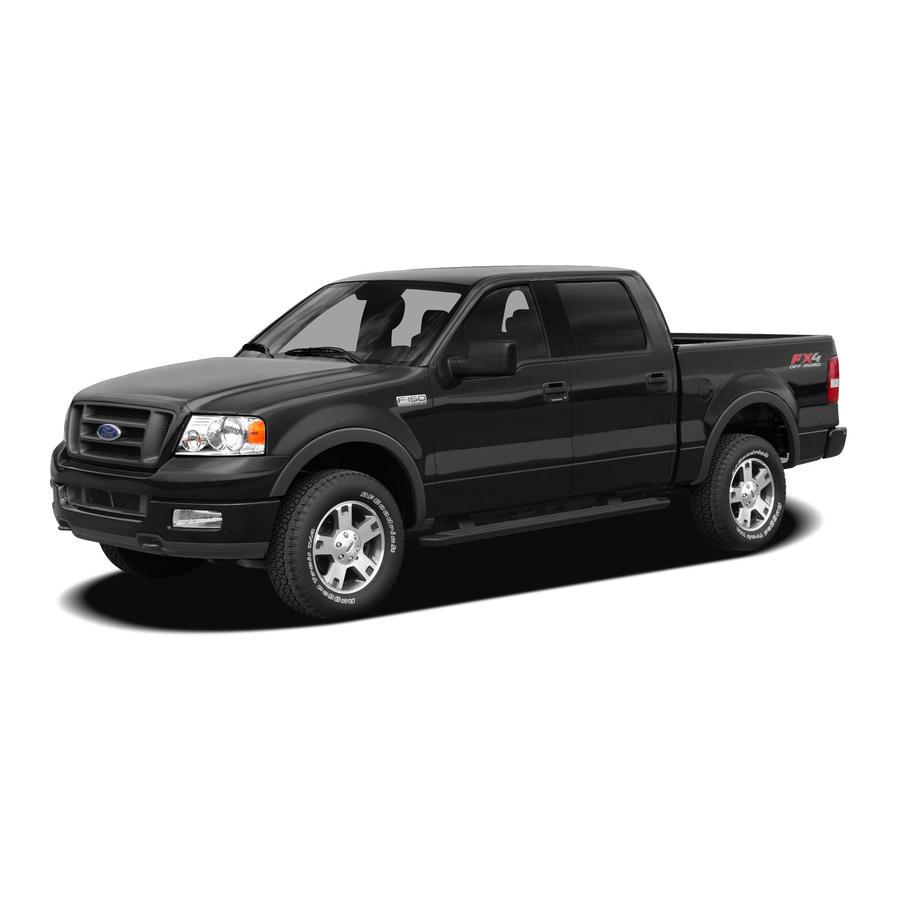

Ford 2007 F-150 Owner's Manual

Introduction

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Quick Links

Table of Contents

Need help?

Questions and answers

Related Manuals for Ford 2007 F-150

Summary of Contents for Ford 2007 F-150

Table of Contents
