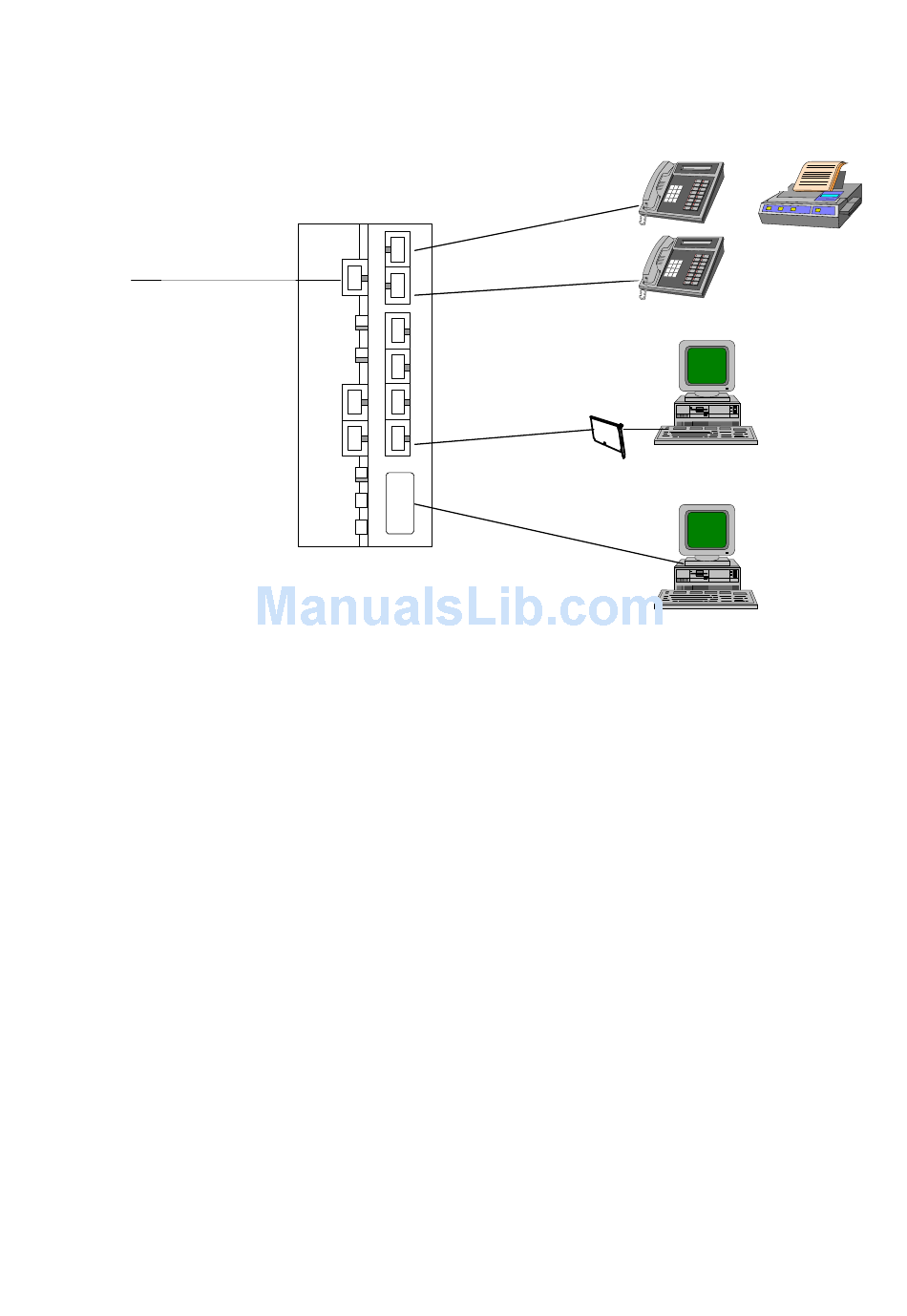

3 Connection Method

To ISDN
U-Line (RJ11)
1. Connecting telephone, fax, or answering machine
l Use the right RJ11 cable to connect the telephone, fax or answering machine into TEL-B or
TEL-A port.
2. Connecting Ethernet card
l Use the right RJ45 cable to connect the Ethernet card (the Ethernet card was installed inside
a your PC) into any of the Ethernet 4/3/2/1 ports.
3. Connecting console
l Use the right RS232 cable to connect the PC into DTE port.
4. Connecting ISDN line
l Use the right RJ11 cable to connect the ISDN U-line to U port.
5. Connecting power
l Connect the AC power directly to the power source.
6. Start operation
l After finishing the above procedure, you can now start operating the router.
ISDN Router Manual V.1.1
TEL-B (RJ11)
TEL-A (RJ11)
Ethernet 10BaseT (RJ45)
Ethernet card
DTE (RS232)
13
or
