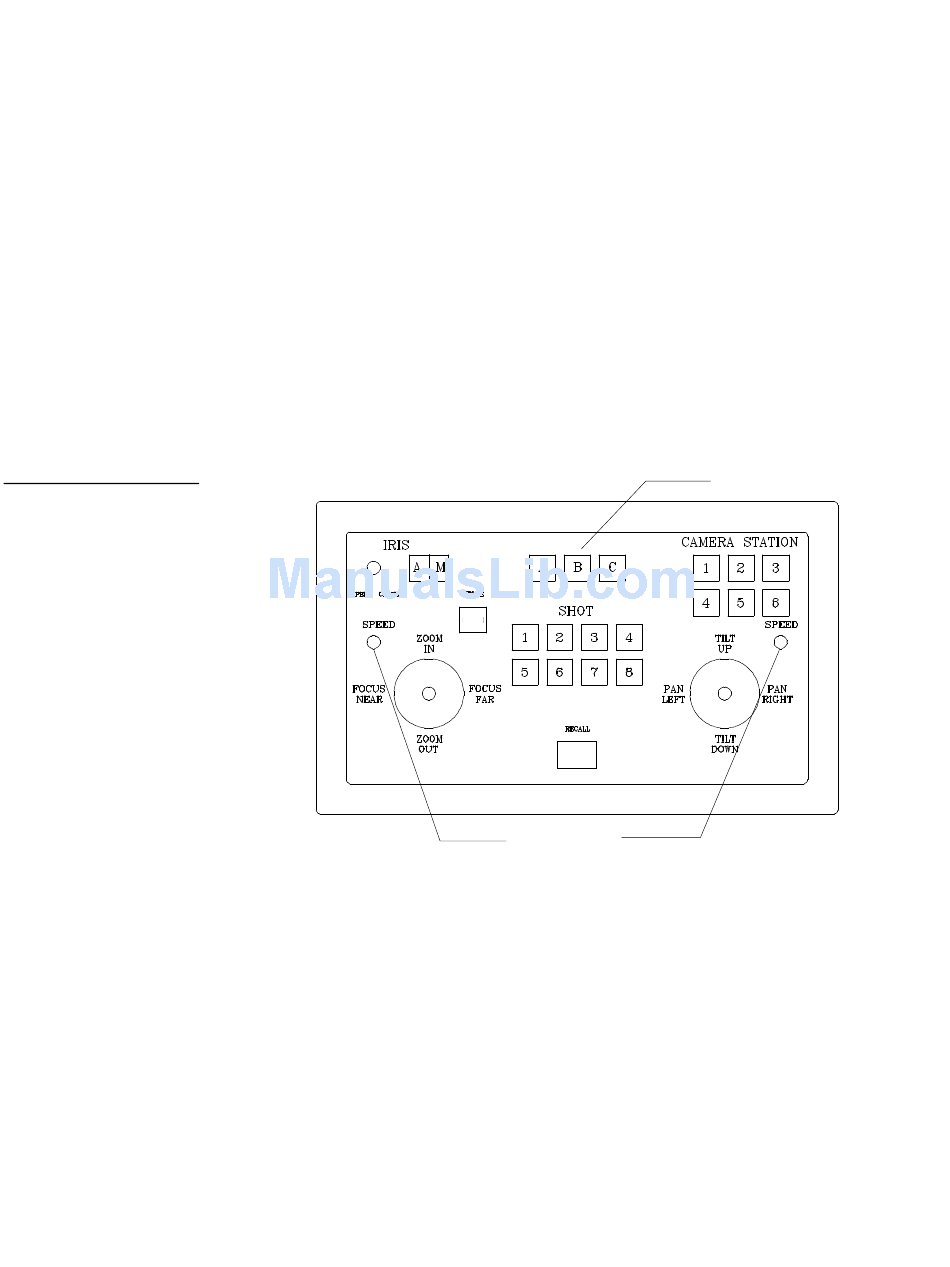

Figure 8
AXP-DTC controls
Camrobotics
Preset Operation
The AXP-DTC features up to 24 preset positions for each camera station. A
programmed shot, when recalled by the operator, automatically commands the
AXB-EM232 to have the AXB-CAM move the CAM-1000 pan/tilt with lens and
camera to pre-determined pan/tilt and zoom/focus locations.
Programming the presets
To program the preset positions:
Press the number button of the camera station (see Figure 8) to be programmed.
1.
That button is now illuminated.
If you are using an optional preview monitor and video switcher, use the video
2.
switcher to route the camera' s video to the preview monitor. Refer to the video
switcher' s documentation for instructions.
Use the pan/tilt joystick to position the camera platform to compose the desired
3.
scene.
Frame the scene with the zoom and focus joystick.
4.
SPEED knobs
Mode buttons
Operation
15
